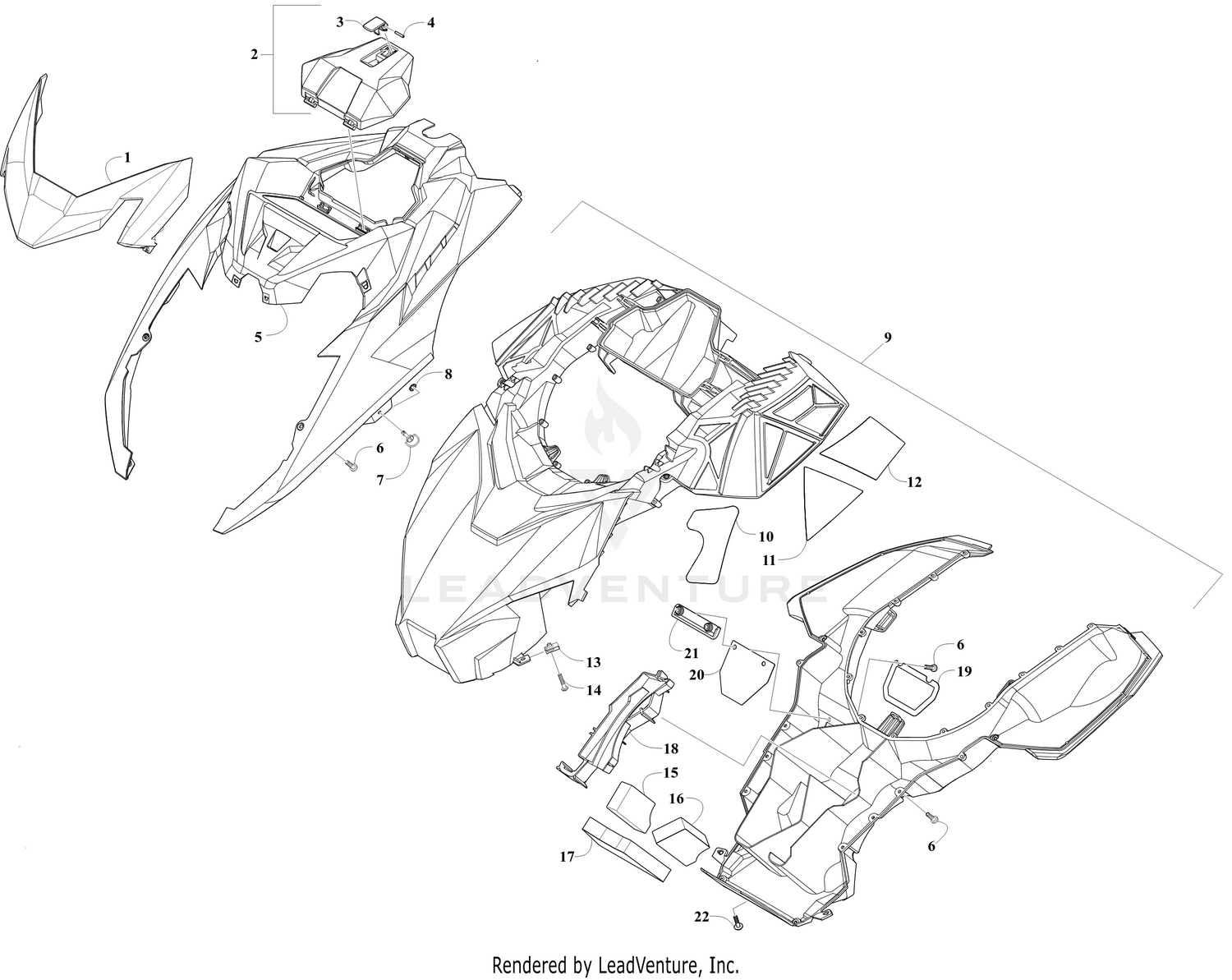

HOOD ASSEMBLY [110534] — Parts Catalog

Ref	Part Number	Description
1	1616-448	Trim, Headlight Cowl - Star White Price: $69.95
3	6406-611	Latch, Glove Box Price: $4.86
4	8070-282	Pin, Spring Price: $1.45
5	1616-446	Hood, Main - Star White Price: $299.95
6	1623-933	Screw, Self-Tapping Price: $0.35
7	2623-003	Pin, Retaining Price: $10.75
8	2623-004	Nut, Push Price: $4.72
10	1616-334	Screen, Front - Intake - Right Price: $17.29
10	1616-335	Screen, Front - Intake - Left Price: $17.29
11	1616-336	Screen, Mid - Intake - Right Price: $18.29
11	1616-337	Screen, Mid - Intake - Left Price: $18.29
12	1616-338	Screen, Rear - Intake - Right Price: $26.95
12	1616-339	Screen, Rear - Intake - Left Price: $26.95
13	1623-637	Clip, U-Nut Price: $2.61
14	8468-525	SCREW,MACH-TSPNH M5X0.8X25 CL8.8 BLK Price: $16.92
15	0	Not A Serviceable Item Not Available Price:
16	0	Not A Serviceable Item Not Available Price:
17	0	Not A Serviceable Item Not Available Price:
18	2670-709	Tuner, 1/4 Wave Price: Call Us
19	1616-232	Screen, Intake - Center Price: $4.84
20	1616-319	RETAINER,REED-UNDERHOOD AIR Price: $4.09
21	1616-320	REED,UNDERHOOD AIR Price: $1.94
