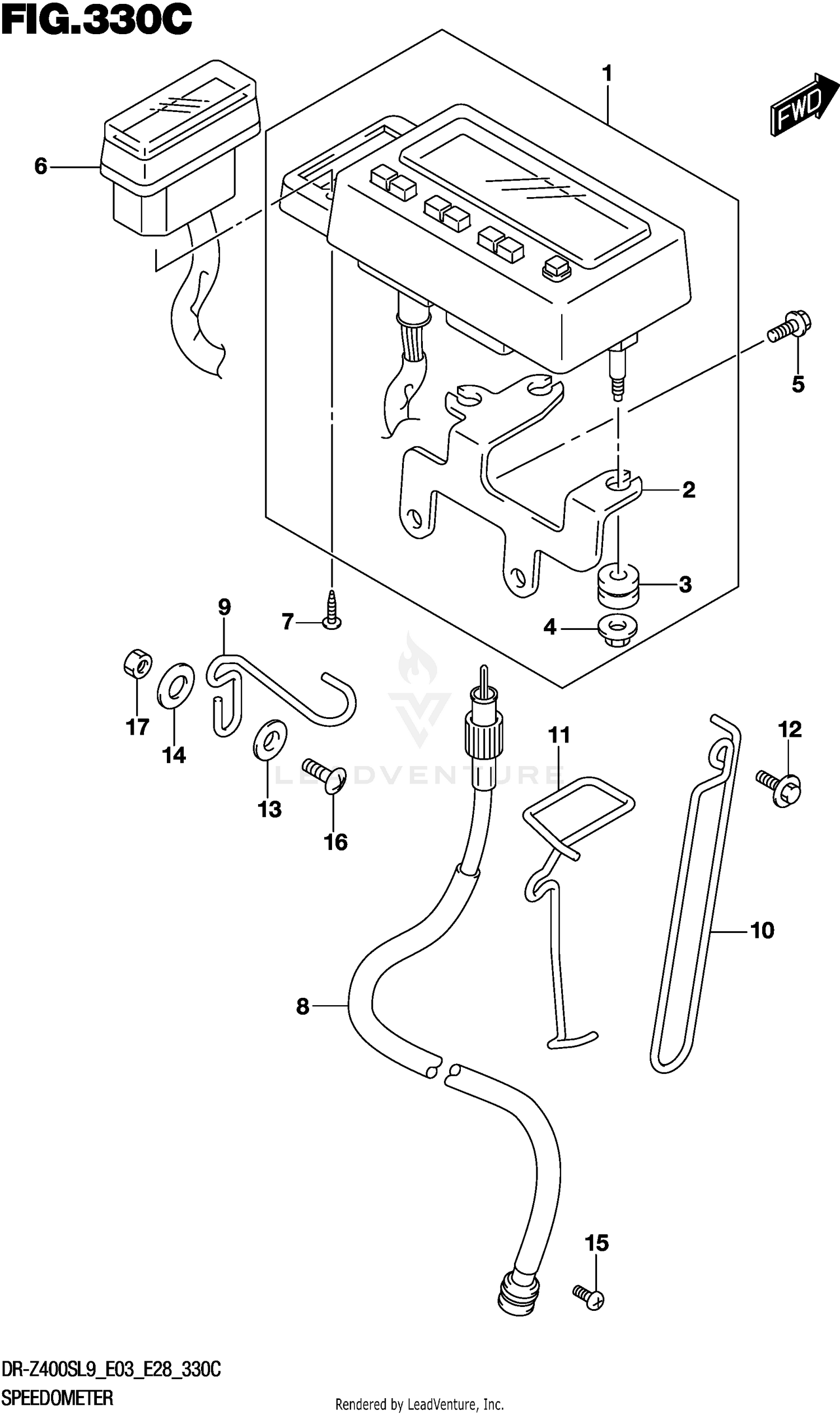

SPEEDOMETER (DR-Z400SL9 E33)
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 34100-29F41 | SPEEDOMETER ASSY This part replaces 34100-29F40. Price: $1,149.56 |
| 3 | 34996-43410 | CUSHION Price: $4.72 |
| 4 | 08316-1005A | NUT Price: $2.64 |
| 5 | 01550-0616A | BOLT Price: $2.37 |
| 6 | 36380-29F00 | BOX ASSY PILOT LAMP Price: $307.31 |
| 7 | 03511-0420B | SCREW Price: $2.75 |
| 8 | 34910-32E00 | CABLE ASSY,SPEEDOMETER Price: $50.85 |
| 9 | 34938-03D22 | GUIDE SPEEDOMETER CABLE Price: $12.31 |
| 10 | 34938-14D30 | GUIDE,METER CABLE NO.2 Price: $13.14 |
| 11 | 34938-29F10 | GUIDE SPEEDOMETER CABLE NO.3 Price: $15.65 |
| 12 | 09116-06201 | BOLT (6X20) Price: $2.87 |
| 13 | 09160-06109 | WASHER (6.5X18X1.6) Price: $1.39 |
| 14 | 09169-06053 | WASHER Price: $1.35 |
| 15 | 02112-0516B | SCREW Price: $2.35 |
| 16 | 02142-0616B | SCREW Price: $2.18 |
