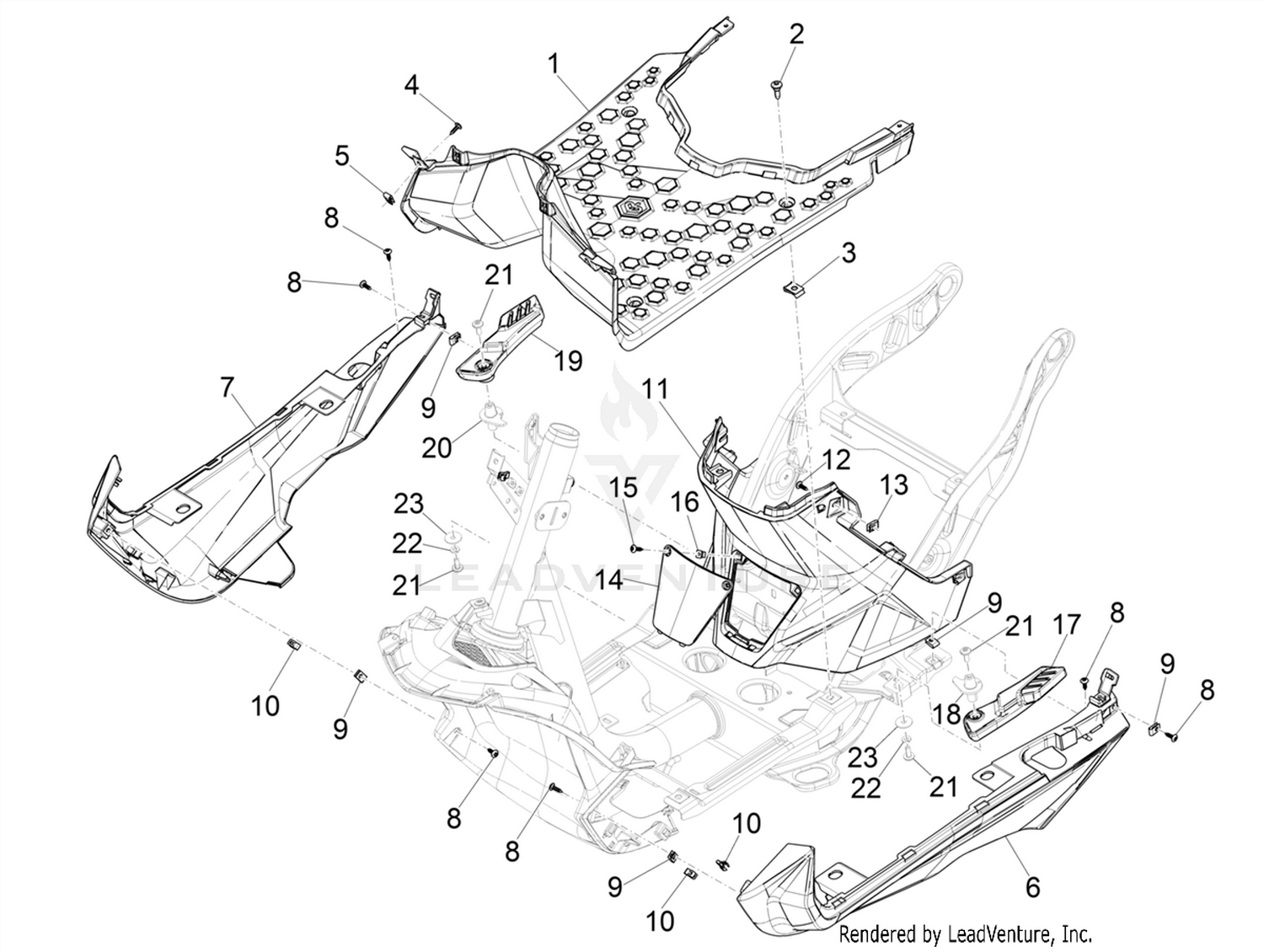

Central cover - Footrests
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 1B0083680000C | Footrest Price: $34.85 |
| 2 | CM178601 | Self tapping screw Price: $0.12 |
| 3 | 254485 | Spring plate Price: $0.25 |
| 4 | CM179201 | Torx head cylinder head screw Price: $0.25 |
| 5 | CM017410 | Spring plate Price: $0.25 |
| 6 | 1B0083720000C | Left spoiler Price: $20.71 |
| 7 | 1B0083740000C | Right spoiler Price: $20.71 |
| 8 | CM178601 | Self tapping screw Price: $0.12 |
| 9 | CM017410 | Spring plate Price: $0.25 |
| 10 | D9004468091 | Gripper clip Price: $0.25 |
| 11 | 1B0083700000C | Undersaddle Price: $18.62 |
| 12 | 259349 | Self tapping screw Price: $0.12 |
| 13 | CM017410 | Spring plate Price: $0.25 |
| 14 | 1B0088430000C | Inspection cover Price: $1.38 |
| 15 | CM178601 | Self tapping screw Price: $0.12 |
| 16 | 157716 | Expansion plug Price: $0.06 |
| 17 | 1B008356 | LH Rear footrest pin Price: $21.14 |
| 18 | 1B008380 | Rear footrest, LH Price: $26.71 |
| 19 | 1B008385 | Rear footrest, RH Price: $26.71 |
| 20 | 1B008357 | RH Rear footrest pin Price: $21.14 |
| 21 | CM179301 | Torx head cylinder head screw Price: $0.18 |
| 22 | 016406 | Spring washer Price: $0.25 |
