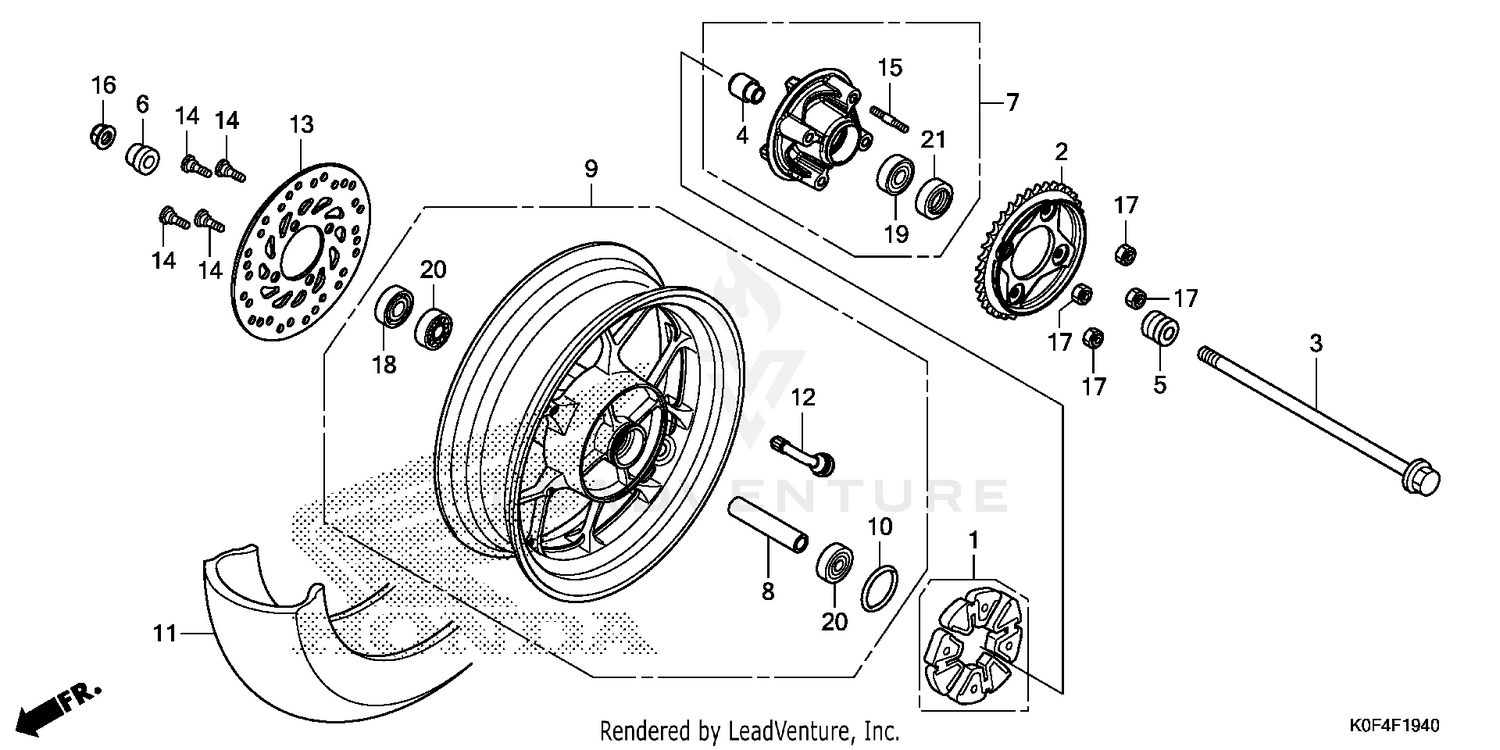

| Ref | Part Number | Description |
|---|
| 1 |
06410-KWB-600 |
DAMPER SET, WHEEL Price: $11.44 |
| 2 |
41200-K26-901 |
SPROCKET, FINAL DRIVEN (34T) Price: $51.85 |
| 3 |
42301-K0F-T00 |
AXLE, RR. WHEEL Price: $6.64 |
| 4 |
42303-KWB-600 |
SLEEVE, RR. WHEEL Price: $3.42 |
| 5 |
42311-K0F-T00 |
COLLAR, L. RR. WHEEL SIDE Price: $18.11 |
| 6 |
42312-K0F-T00 |
COLLAR, R. RR. WHEEL SIDE Price: $18.11 |
| 7 |
42615-K26-B10 |
FLANGE SUB-ASSY., FINAL DRIVEN Price: $79.73 |
| 8 |
42620-K26-900 |
COLLAR, RR. AXLE DISTANCE Price: $6.84 |
| 9 |
42650-K26-B00ZD |
WHEEL SUB-ASSY., RR. *NHA40M* (MAT KRYPTON SILVER METALLIC) Price: $271.95 |
| 10 |
42653-001-004 |
O-RING (40.5X3) (NIPPON DUST KEEPER) Price: $2.73 |
| 11 |
42711-K0F-T03 |
TIRE (130/80-12 69J) This part replaces 42711-K0F-T02. Price: $52.52 |
| 12 |
42753-KJ9-004 |
VALVE, RIM (DUNLOP) (NOT AVAILABLE) Price: $19.64 |
| 13 |
43251-K26-900 |
DISK, RR. BRAKE Price: $42.79 |
| 14 |
90105-KGH-900 |
BOLT, BRAKE DISK (8X24) Price: $2.18 |
| 15 |
90128-KWB-600 |
BOLT, STUD (8X18) Price: $0.75 |
| 16 |
90306-KWN-701 |
NUT, U (12MM) Price: $5.09 |
| 17 |
90309-KPH-971 |
NUT, U (8MM) (FUJI SEIMITSU) Price: $1.87 |
| 18 |
90753-051-003 |
OIL SEAL (26X37X6) (ARAI) Price: $9.62 |
| 19 |
91051-K35-V03 |
BEARING, RADIAL BALL (6203UU) (FUJIKOSHI) This part replaces 91051-K35-V02. Price: $23.29 |
| 20 |
91053-K03-H02 |
BEARING, RADIAL BALL (6301U L) (FAG) This part replaces 91053-K03-H01. Price: $8.78 |
