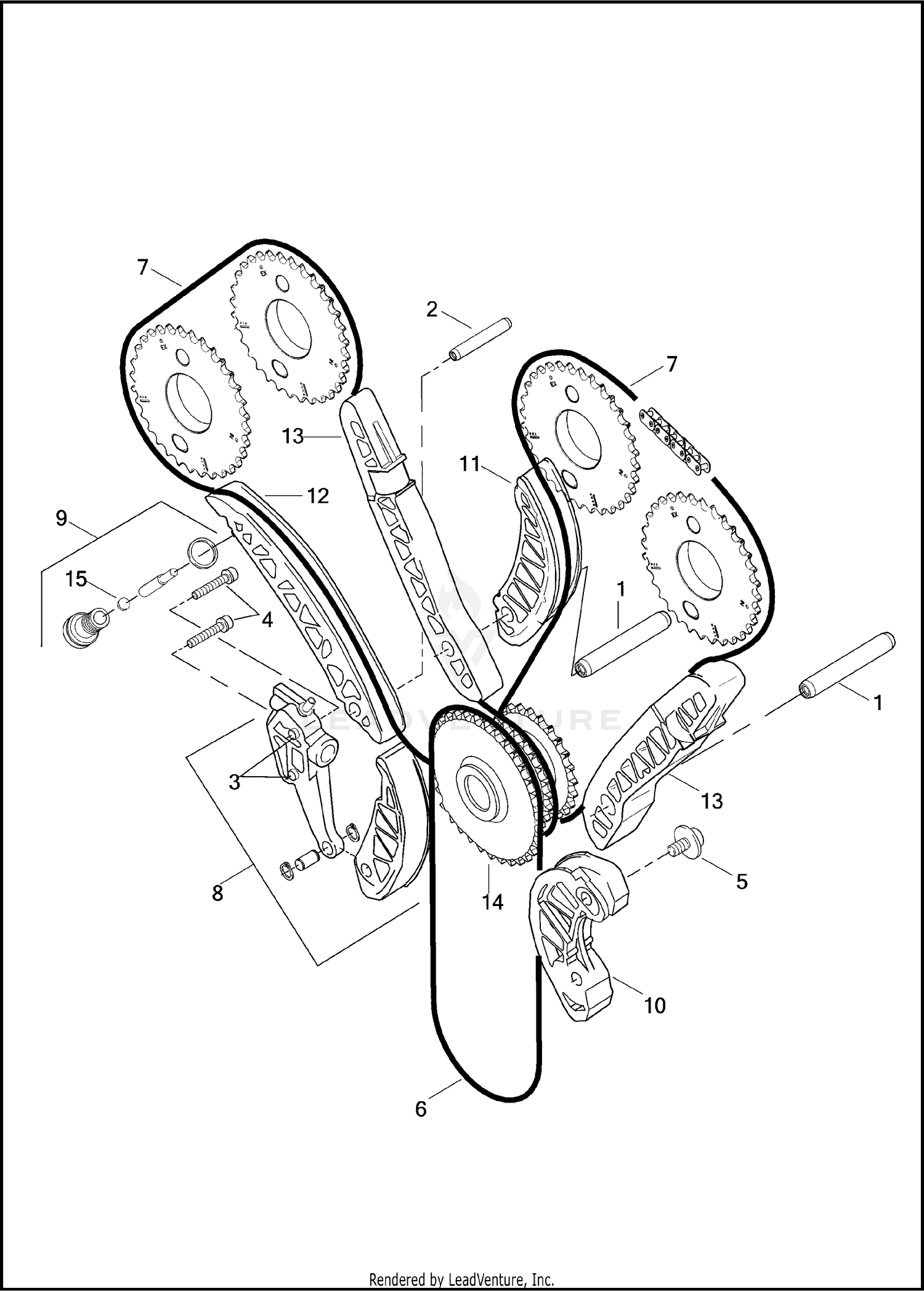

| Ref | Part Number | Description |
|---|
| 1 |
409K |
PIN Price: $6.75 |
| 2 |
485K |
PIN Price: $6.83 |
| 3 |
489K |
DOWEL Price: $1.16 |
| 4 |
966M |
SCREW M6 X 1.0 X 35 SOCKET HD. Price: $1.82 |
| 5 |
1007M |
SCREW M6 X 1.0 X 12 SOCKET HD. Price: $1.44 |
| 6 |
17406-01KA |
CHAIN PRIMARY CAM DRIVE Price: $87.88 |
| 7 |
17407-01KA |
CHAIN SECONDARY CAM DRIVE Price: $87.88 |
| 8 |
17629-01K |
TENSIONER ASSEMBLY PRIMARY, W/ 489K, GUIDE, SHAFT, RINGS & HOUSING Price: $118.43 |
| 9 |
17632-01K |
TENSIONER ASSEMBLY SECONDARY Price: $101.07 |
| 10 |
17637-01K |
GUIDE TENSIONER PRIMARY - FRONT Not Available Price: |
| 11 |
17638-01K |
GUIDE TENSIONER SECONDARY - FRONT Price: $11.28 |
| 12 |
17639-01K |
GUIDE TENSIONER SECONDARY - REAR Not Available Price: |
| 13 |
17640-01K |
GUIDE TENSIONER SECONDARY Price: $18.35 |
| 14 |
25800-01K |
SPROCKET TRIPLE Not Available Price: |
