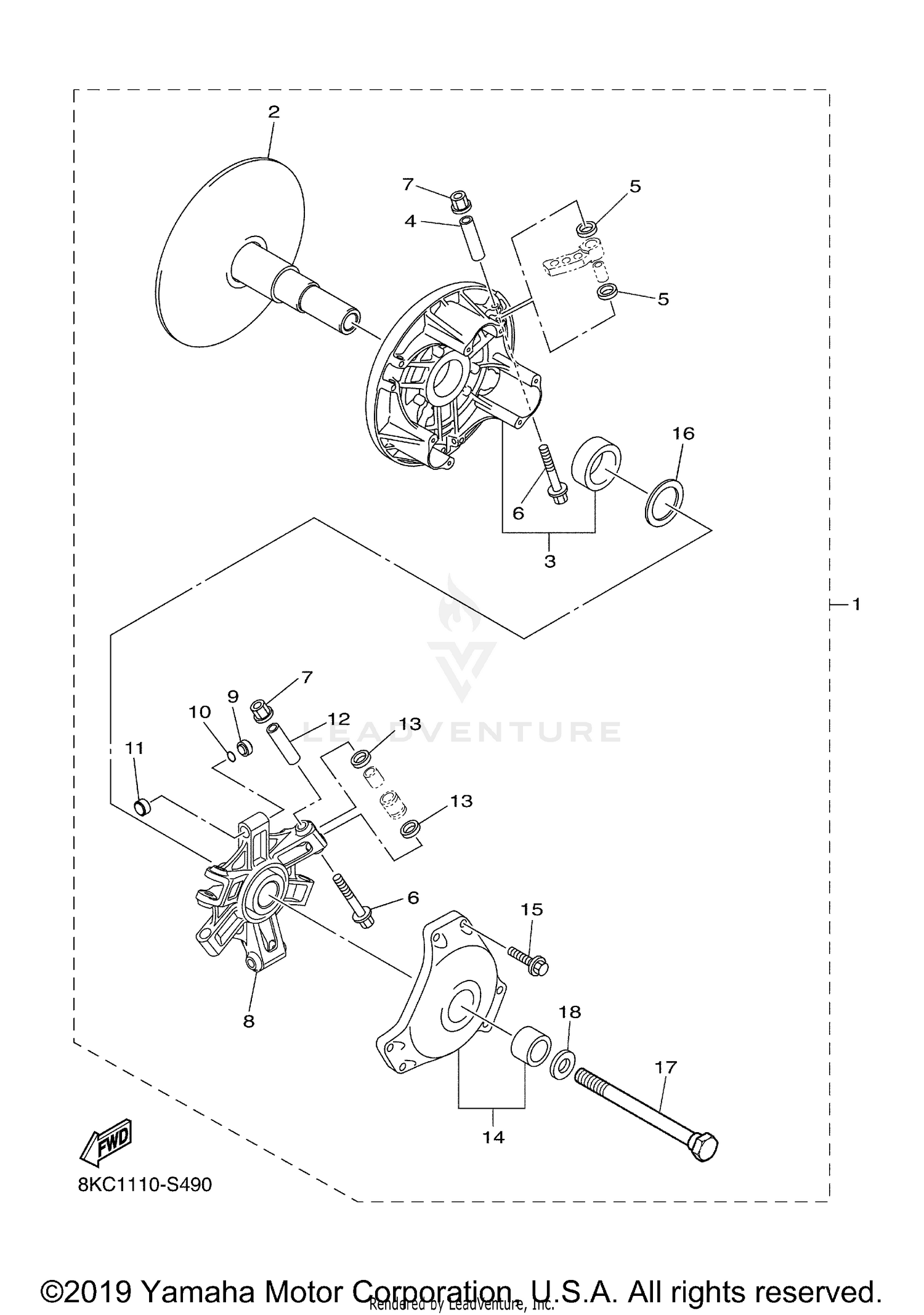

ALTERNATE REBUILD KIT
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 8KC-17610-00-00 | PRIMARY FIXED SHEAVE COMP. Price: $398.99 |
| 3 | 8KC-17620-00-00 | PRIMARY SLIDING SHEAVE COMP. Price: $273.99 |
| 4 | 90387-05060-00 | COLLAR Price: $18.49 |
| 5 | 90202-08005-00 | WASHER, PLATE Price: $1.35 |
| 6 | 90105-05030-00 | BOLT, FLANGE Price: $1.40 |
| 7 | 95607-05200-00 | NUT, U FLANGE This part replaces 95602-05200-00. Price: $10.49 |
| 8 | 8KC-17627-00-00 | SPIDER Price: $109.99 |
| 9 | 8KC-17653-00-00 | SLIDER Price: $19.49 |
| 10 | 93210-07100-00 | O-RING Price: $7.49 |
| 11 | 8KC-17653-10-00 | SLIDER Price: $28.99 |
| 12 | 90387-05059-00 | COLLAR Price: $18.49 |
| 13 | 90202-09002-00 | WASHER, PLATE Price: $1.35 |
| 14 | 8DF-17630-00-00 | PRIMARY SHEAVE CAP COMP. Price: $201.99 |
| 15 | 95812-06030-00 | BOLT, FLANGE Price: $2.15 |
| 16 | 90201-33016-00 | WASHER, PLATE Price: $14.49 |
| 17 | 8V0-17647-10-00 | BOLT (L=156.5MM) Price: $28.99 |
