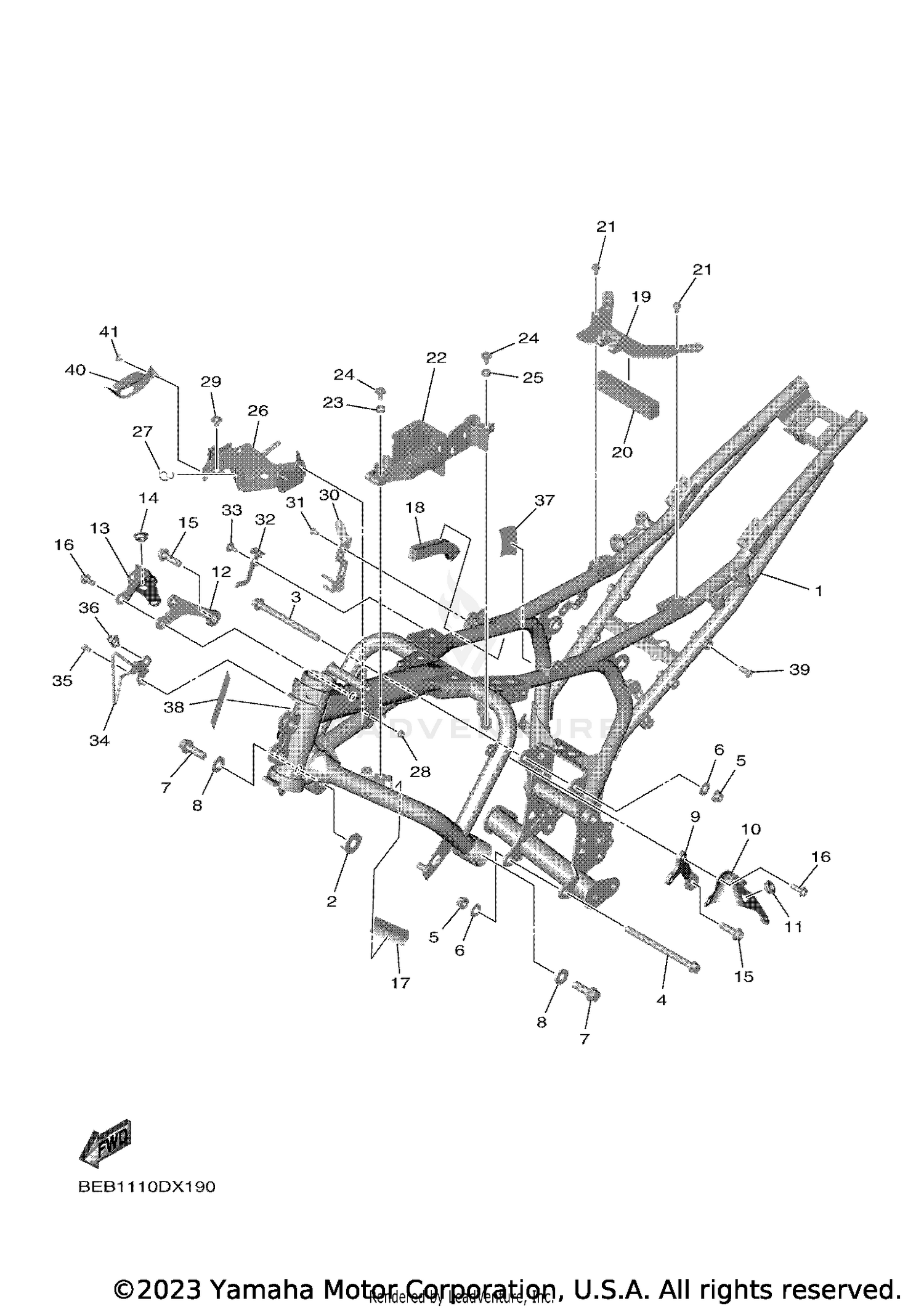

| Ref | Part Number | Description |
|---|
| 2 |
1WS-2191B-00-00 |
PLATE 1 Price: $18.99 |
| 3 |
90105-10219-00 |
BOLT, FLANGE Price: $8.49 |
| 4 |
90105-10349-00 |
BOLT, FLANGE Price: $16.49 |
| 5 |
90179-10024-00 |
NUT Price: $11.49 |
| 6 |
90201-10035-00 |
WASHER, PLATE Price: $4.50 |
| 7 |
90105-12092-00 |
BOLT, FLANGE Price: $15.49 |
| 8 |
90201-13020-00 |
WASHER, PLATE Price: $3.95 |
| 9 |
BEB-21315-00-00 |
STAY, ENGINE 1 Price: $16.49 |
| 10 |
BEB-2138K-00-00 |
BRACKET, 1 Price: $22.99 |
| 11 |
90480-01558-00 |
GROMMET Price: $4.65 |
| 12 |
BEB-21316-00-00 |
STAY, ENGINE 2 Price: $16.49 |
| 13 |
BEB-2138L-00-00 |
BRACKET 2 Price: $22.99 |
| 14 |
90480-01558-00 |
GROMMET Price: $4.65 |
| 15 |
90110-10044-00 |
BOLT, HEXAGON SOCKET HEAD Price: $6.49 |
| 16 |
90110-08111-00 |
BOLT, HEXAGON SOCKET HEAD Price: $3.85 |
| 17 |
90520-20004-00 |
DAMPER, PLATE Price: $3.85 |
| 18 |
90520-20003-00 |
DAMPER, PLATE Price: $9.49 |
| 19 |
BEB-21946-00-00 |
BRACKET, SEAT FITT Price: $36.99 |
| 20 |
4B5-28217-00-00 |
DAMPER 1 Price: $4.15 |
| 21 |
90109-060E9-00 |
BOLT Price: $11.49 |
| 22 |
BEB-2117N-00-00 |
COVER 3 Price: $13.49 |
| 23 |
90387-10126-00 |
COLLAR Price: $3.20 |
| 24 |
90119-06209-00 |
BOLT, WITH WASHER Price: $6.49 |
| 25 |
90387-06106-00 |
COLLAR This part replaces 90387-06372-00. Price: $8.49 |
| 26 |
BEB-21158-00-00 |
BRACKET Price: $45.99 |
| 27 |
90464-08011-00 |
CLAMP Price: $1.45 |
| 28 |
95702-06500-00 |
NUT, WITH WASHER Price: $2.60 |
| 29 |
90111-06122-00 |
BOLT, HEX. SOCKET BUTTON Price: $6.49 |
| 30 |
BEB-2161J-00-00 |
BRACKET 8 Price: $13.49 |
| 31 |
92017-06010-00 |
BOLT, BUTTON HEAD Price: $5.49 |
| 32 |
1WS-2175U-00-00 |
BRACKET 2 Price: $38.99 |
| 33 |
90269-07077-00 |
RIVET Price: $9.49 |
| 34 |
BEB-21288-00-00 |
GUIDE, CABLE Price: $36.99 |
| 35 |
95027-06010-00 |
BOLT, FLANGE Price: $3.55 |
| 36 |
90464-25009-00 |
CLAMP Price: $9.49 |
| 37 |
5VN-21268-00-00 |
SEAL Price: $14.49 |
| 38 |
3HA-24141-00-00 |
PROTECTOR, FUEL TANK Price: $15.49 |
| 39 |
90149-08002-00 |
SCREW Price: $9.49 |
| 40 |
BEB-2177F-00-00 |
COVER Price: $41.99 |
