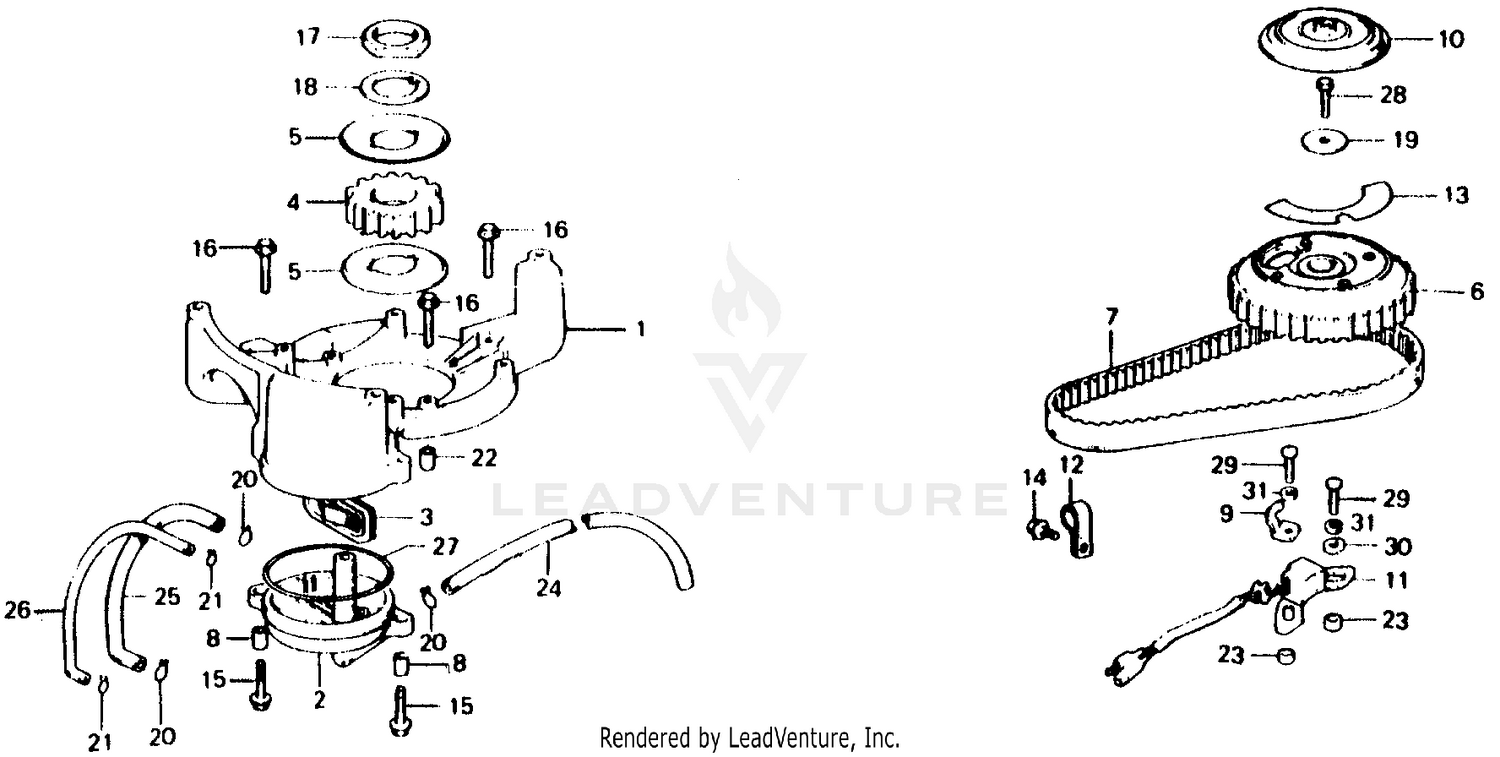

| Ref | Part Number | Description |
|---|
| 1 |
11301-881-020ZA |
SEE PART DETAILS - PRI; CASE, STARTER *NH8* (DARK GRAY) Price: $199.79 |
| 2 |
12311-881-000 |
COVER, BREATHER Price: $35.52 |
| 3 |
12370-881-000 |
BODY, VALVE Price: $27.92 |
| 4 |
14311-881-000 |
PULLEY, TIMING Price: $32.20 |
| 5 |
14312-881-000 |
FLANGE, TIMING PULLEY Price: $10.56 |
| 6 |
14320-882-600 |
PULLEY, CAMSHAFT Price: $171.32 |
| 7 |
14400-921-024 |
SEE PART DETAILS - PRI; BELT, TIMING Price: $68.84 |
| 8 |
15623-881-000 |
SEE PART DETAILS - SUP; COLLAR A, DISTANCE Price: Call Us |
| 9 |
30207-882-600 |
PLATE, WIRE CLAMP Price: $5.54 |
| 10 |
30210-881-000 |
COVER, POINT Price: $7.20 |
| 11 |
30400-882-601 |
COIL ASSY., PULSER (NOT AVAILABLE) Price: $131.12 |
| 13 |
87581-921-600 |
MARK, POINT Price: $1.70 |
| 15 |
90121-881-000 |
BOLT, FLANGE (6X22) Price: $1.72 |
| 16 |
90123-881-000 |
BOLT, FLANGE (6X28) Price: $1.74 |
| 17 |
90202-881-000 |
NUT, LOCK (24MM) Price: $9.58 |
| 18 |
90451-881-000 |
WASHER, LOCK (24MM) Price: $3.92 |
| 19 |
90563-706-000 |
WASHER, WHEEL (6MM) Price: $1.50 |
| 20 |
90604-ZV0-000 |
SEE PART DETAILS - PRI; CLIP, TUBE (B12) Price: $1.88 |
| 21 |
90605-921-000 |
CLIP B7, TUBE Price: $1.56 |
| 22 |
90702-881-000 |
PIN, DOWEL (8X10) Use up to Engine SN 2056819. Price: $2.10 |
| 23 |
90705-882-600 |
PIN, DOWEL (7X4.5) Price: $2.50 |
| 24 |
90803-881-000 |
TUBE B, BREATHER (NOT AVAILABLE) Price: Call Us |
| 25 |
90804-881-010 |
TUBE C, BREATHER Price: $5.62 |
| 26 |
90805-881-000 |
TUBE, OIL RETURN Price: $4.02 |
| 27 |
91311-881-003 |
SEE PART DETAILS - PRI; O-RING (62X2.5) Price: $4.24 |
| 28 |
92101-06022-0B |
SEE PART DETAILS - PRI; BOLT, HEX. (6X22) Price: $1.54 |
| 29 |
93500-05014-0B |
SCREW, PAN (5X14) Price: $1.24 |
| 30 |
94101-05200 |
WASHER, PLAIN (5MM) Price: $1.54 |
