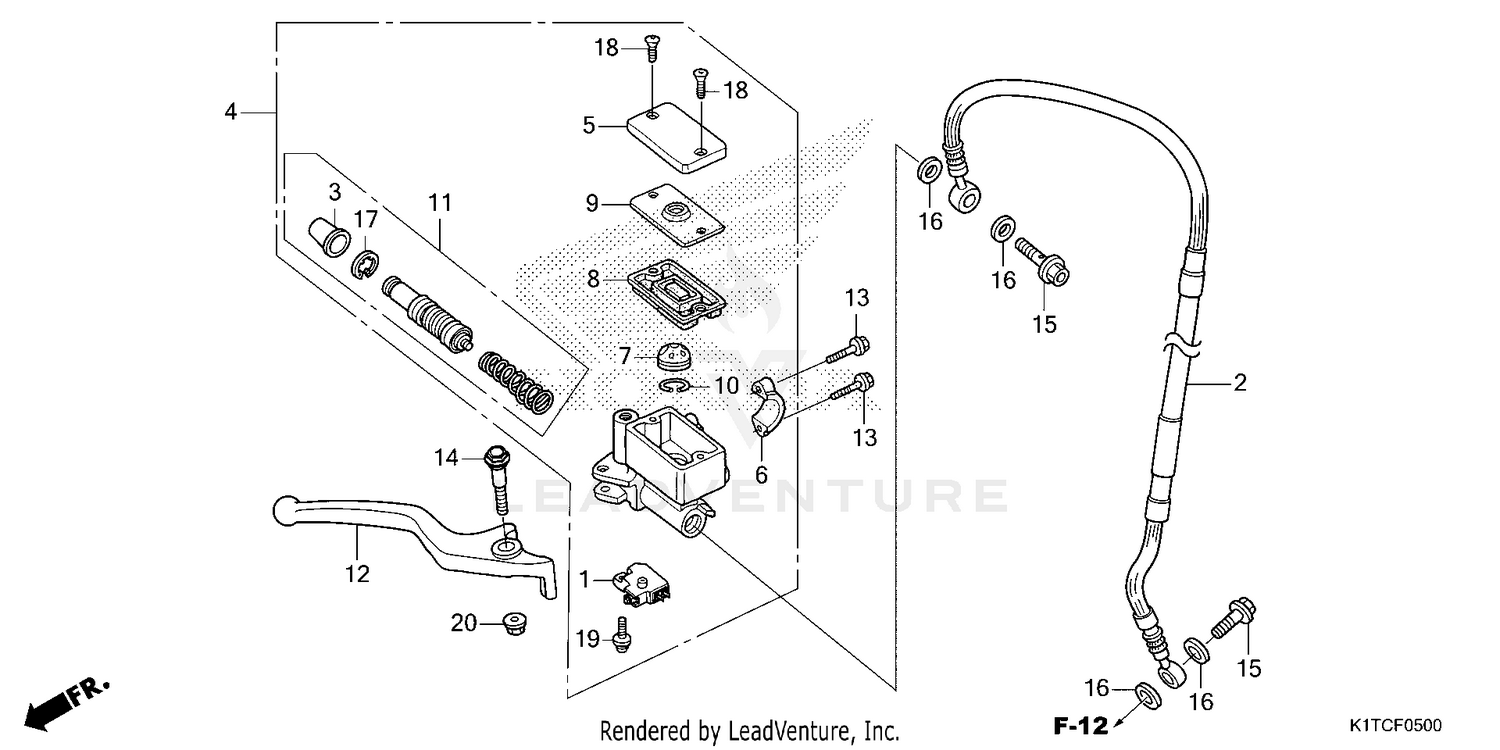

| Ref | Part Number | Description |
|---|
| 1 |
35340-MGS-D31 |
SWITCH ASSY., FR. STOP Price: $22.42 |
| 2 |
45125-K1T-T61 |
HOSE, FR. BRAKE Price: $39.42 |
| 3 |
45504-410-003 |
BOOT Price: $14.75 |
| 4 |
45510-KZZ-305 |
MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO) (NISSIN) Price: $90.20 |
| 5 |
45513-HA2-006 |
CAP, MASTER CYLINDER Price: $33.38 |
| 6 |
45517-166-006 |
HOLDER, MASTER CYLINDER Price: $16.42 |
| 7 |
45518-MEN-J01 |
SEPARATOR Price: $8.20 |
| 8 |
45520-MG7-006 |
DIAPHRAGM Price: $12.84 |
| 9 |
45521-HA2-006 |
PLATE, DIAPHRAGM Price: $13.15 |
| 10 |
45523-KA3-731 |
RING Price: $3.35 |
| 11 |
45530-471-831 |
MASTER CYLINDER SET Price: $48.07 |
| 12 |
53175-KZZ-305 |
LEVER, R. HANDLEBAR (COO) Price: $13.04 |
| 13 |
90013-GHB-660 |
BOLT, FLANGE (6X22) Price: $2.65 |
| 14 |
90114-KZZ-J01 |
BOLT, LEVER PIVOT Price: $12.93 |
| 15 |
90145-MS9-612 |
BOLT, OIL (10X22) (SAGA) Price: $9.20 |
| 16 |
90545-300-000 |
WASHER, OIL BOLT Price: $5.02 |
| 17 |
90651-MA5-671 |
CIRCLIP Price: $3.35 |
| 18 |
93600-04012-0G |
SCREW, FLAT (4X12) Price: $0.95 |
| 19 |
93893-04012-07 |
SCREW-WASHER (4X12) Price: $1.40 |
