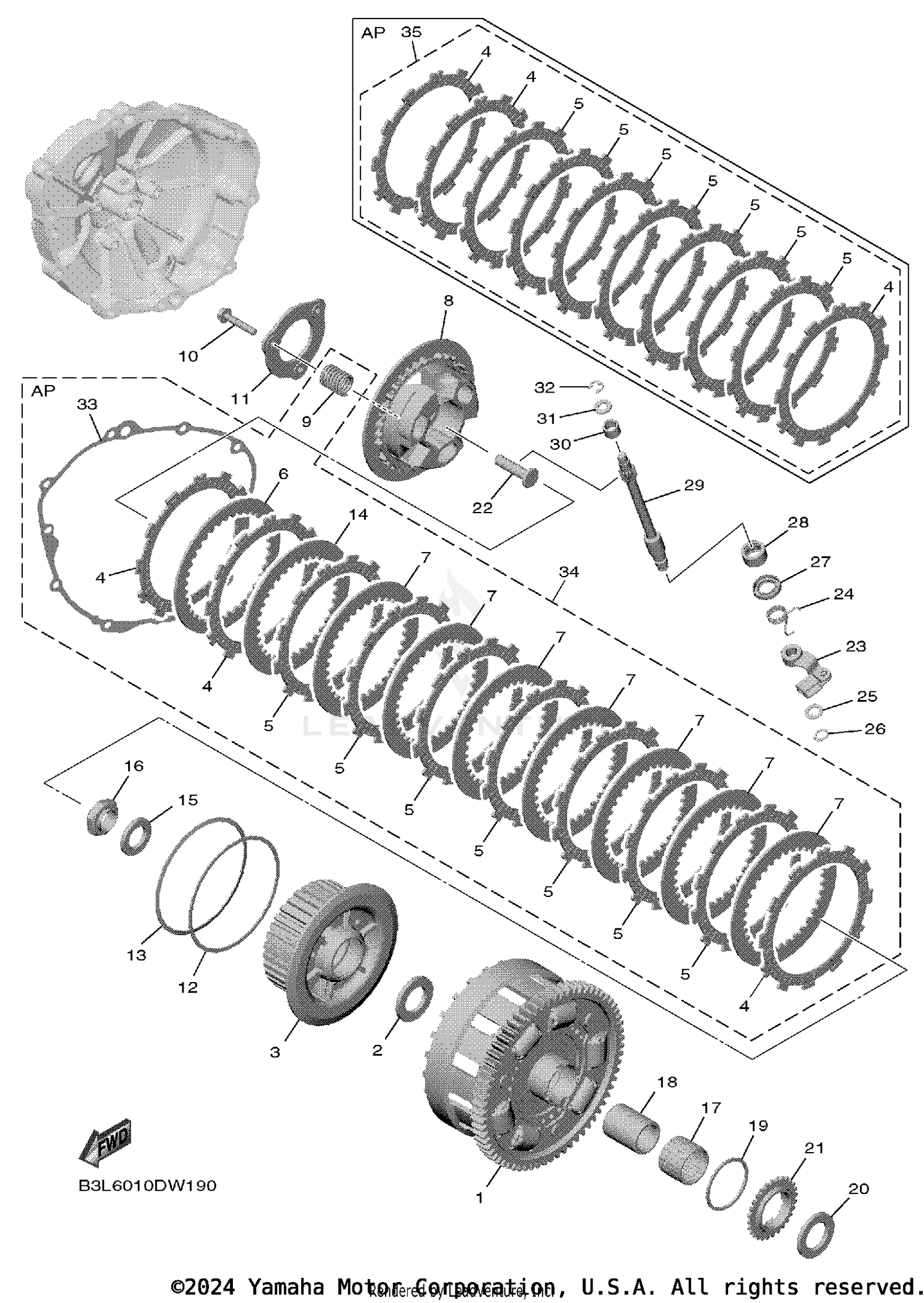

| Ref | Part Number | Description |
|---|
| 1 |
2CR-16150-00-00 |
PRIMARY DRIVEN GEAR COMP. Price: $583.99 |
| 2 |
363-16154-00-00 |
PLATE, THRUST 1 Price: $17.99 |
| 3 |
2CR-16371-00-00 |
BOSS, CLUTCH Price: $181.99 |
| 4 |
2CR-16330-00-00 |
PLATE, FRICTION 2 Price: $33.99 |
| 5 |
2CR-16321-00-00 |
PLATE, FRICTION Price: $31.99 |
| 8 |
BX4-16350-00-00 |
PRESSURE PLATE ASSY Price: $154.99 |
| 9 |
2CR-16173-00-00 |
SPRING, COMPRESSION Price: $14.49 |
| 10 |
2CR-16337-00-00 |
SCREW, SPRING Price: $4.70 |
| 11 |
2CR-16352-00-00 |
PLATE, PRESSURE 2 Price: $9.49 |
| 12 |
2CR-16384-10-00 |
PLATE, SEAT Price: $8.49 |
| 13 |
2CR-16383-00-00 |
SPRING, CUSHION Price: $28.99 |
| 15 |
90208-20001-00 |
WASHER, CONICAL SPRING Price: $18.49 |
| 16 |
90179-20022-00 |
NUT Price: $15.49 |
| 17 |
93310-23168-00 |
BEARING Price: $42.99 |
| 18 |
14B-16181-00-00 |
SPACER 1 Price: $65.99 |
| 19 |
90201-44008-00 |
WASHER, PLATE Price: $9.49 |
| 20 |
2CR-16154-00-00 |
PLATE, THRUST 1 Price: $12.99 |
| 21 |
14B-13354-01-00 |
SPROKET, DRIVE Price: $142.99 |
| 22 |
1WS-16356-00-00 |
ROD, PUSH 1 Price: $58.99 |
| 23 |
2CR-16340-01-00 |
PUSH LEVER ASSY Price: $27.99 |
| 24 |
90508-16041-00 |
SPRING, TORSION Price: $6.49 |
| 25 |
90201-10029-00 |
WASHER, PLATE Price: $8.49 |
| 26 |
99009-10400-00 |
CIRCLIP Price: $5.49 |
| 27 |
93102-15212-00 |
OIL SEAL Price: $10.49 |
| 28 |
93315-21570-00 |
BEARING Price: $18.49 |
| 29 |
5VY-16382-10-00 |
AXLE, PUSH LEVER Price: $79.99 |
| 30 |
93317-11096-00 |
BEARING Price: $25.99 |
| 31 |
92907-08600-00 |
WASHER, PLATE Price: $3.25 |
| 32 |
99080-07600-00 |
CIRCLIP This part replaces 99001-07600-00. Price: $3.55 |
| 33 |
2CR-15461-00-00 |
GASKET, CRANKCASE COVER 2 Price: $26.99 |
