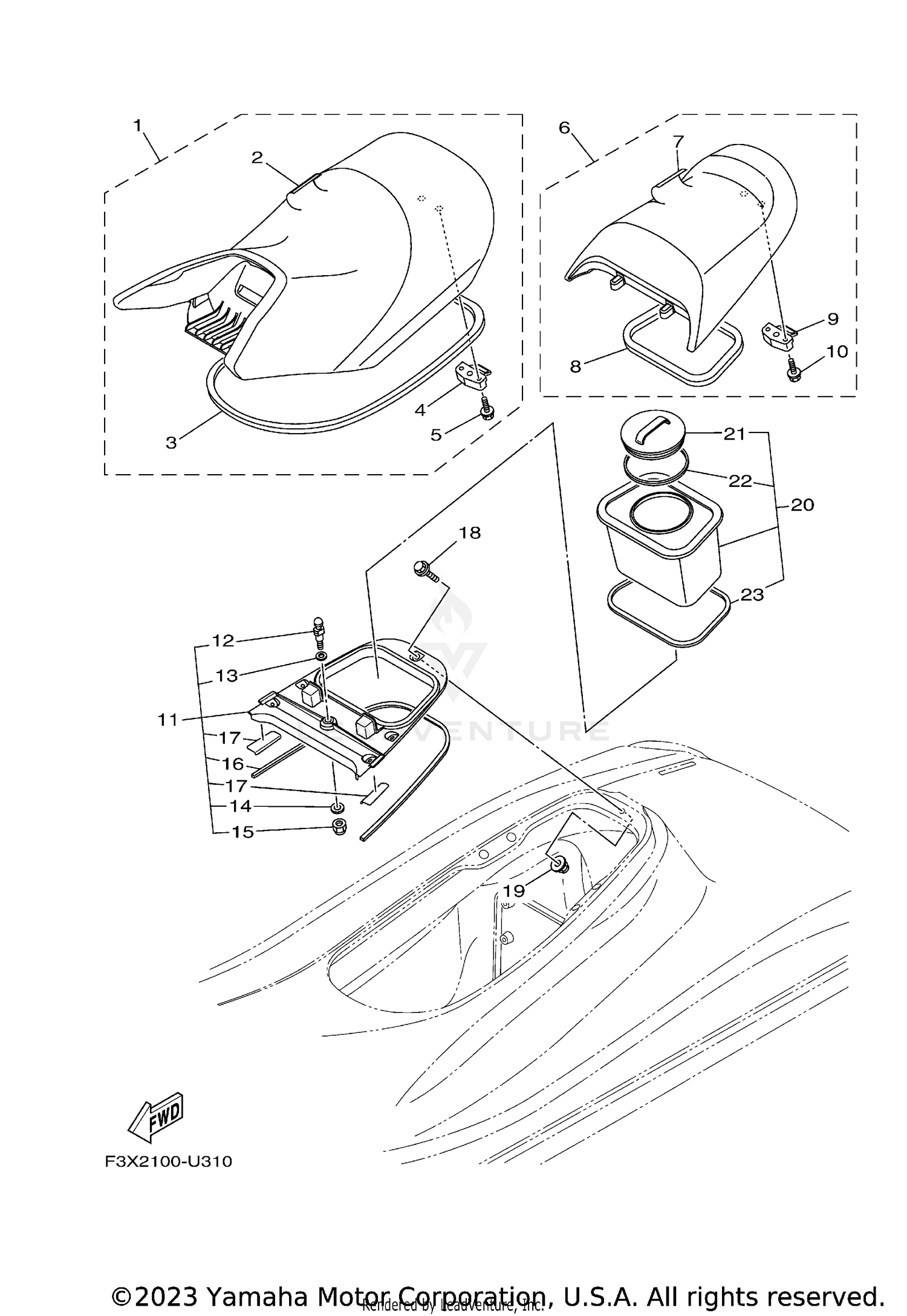

| Ref | Part Number | Description |
|---|
| 1 |
F3X-U371A-11-00 |
DOUBLE SEAT ASSY Price: $363.99 |
| 2 |
F3X-U371B-10-00 |
COVER, SEAT 1 Price: $248.99 |
| 3 |
F3X-U2664-01-00 |
PACKING Price: $85.99 |
| 4 |
F2C-U3850-00-00 |
SEAT LOCK ASSY Price: $34.99 |
| 5 |
90119-06808-00 |
BOLT, WITH WASHER This part replaces 90119-069UP-00. Price: $3.90 |
| 6 |
F3X-U372A-11-00 |
SINGLE SEAT ASSY Price: $209.99 |
| 7 |
F3X-U372B-10-00 |
COVER, SEAT Price: $136.99 |
| 8 |
F3X-U266D-01-00 |
PACKING 5 Price: $69.99 |
| 9 |
F2C-U3850-00-00 |
SEAT LOCK ASSY Price: $34.99 |
| 10 |
90119-06808-00 |
BOLT, WITH WASHER This part replaces 90119-069UP-00. Price: $3.90 |
| 11 |
F2S-U890L-05-00 |
DECK BEAM ASSY Price: $62.99 |
| 12 |
GH1-U3774-00-00 |
PIN Price: $28.99 |
| 13 |
90201-109U6-00 |
WASHER, PLATE Price: $5.99 |
| 14 |
9299R-10200-00 |
WASHER Price: $5.99 |
| 15 |
9572R-10300-00 |
NUT, FLANGE Price: $8.99 |
| 16 |
F2S-U375E-00-00 |
PACKING 1 Price: $8.99 |
| 17 |
F2S-U8244-00-00 |
PACKING Price: $5.99 |
| 18 |
90119-08828-00 |
BOLT, WITH WASHER Price: $6.99 |
| 19 |
F3Y-U142L-00-00 |
NUT, LOCK Price: $6.99 |
| 20 |
F2C-U591A-03-00 |
CASE ASSY 1 Price: $53.99 |
| 21 |
F2C-U591C-00-00 |
CAP,CASE Price: $11.99 |
| 22 |
F2C-U591D-01-00 |
PACKING,CASE Price: $3.99 |
