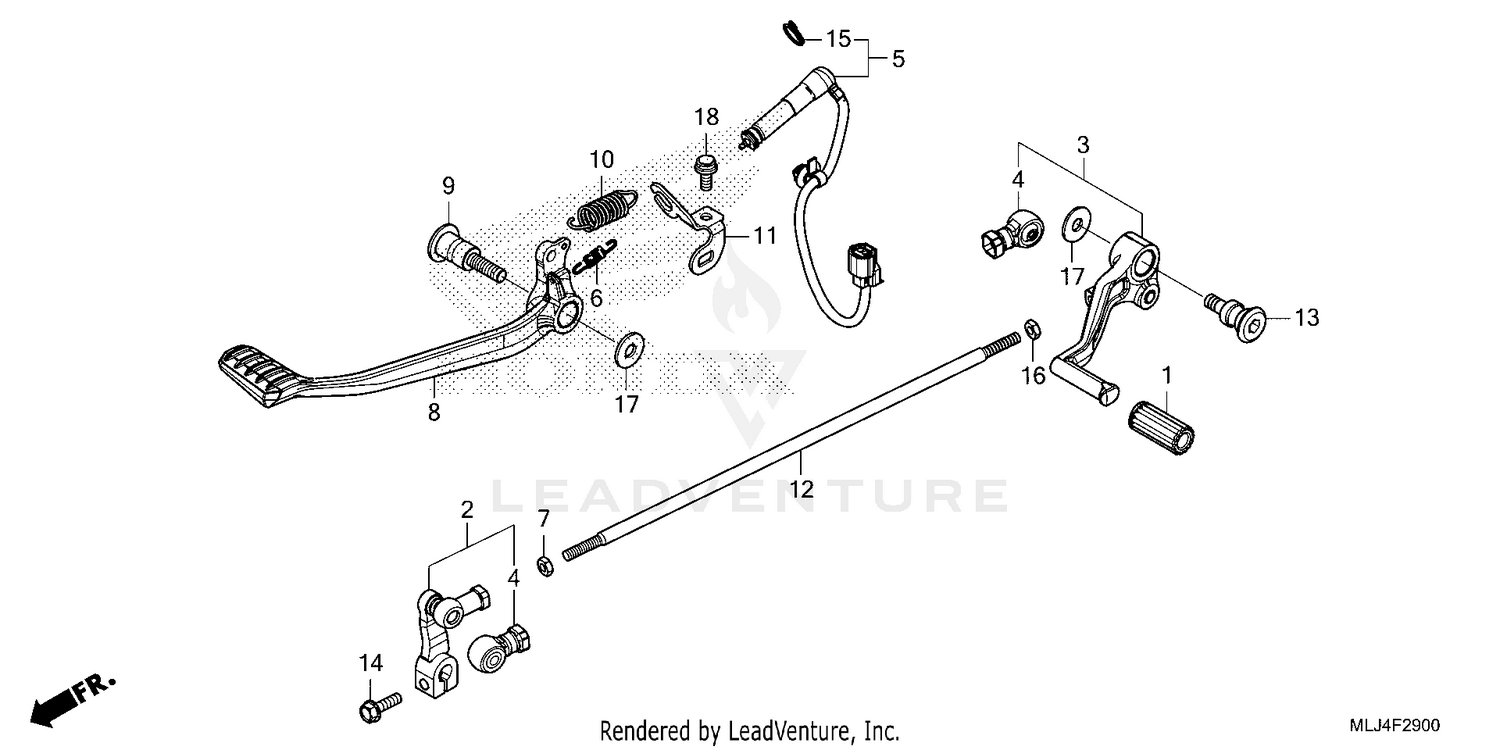

PEDAL
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 5 | 35350-MKC-A01 | SWITCH ASSY., RR. STOP Price: $40.04 |
| 6 | 35357-HP0-A00 | SPRING, STOP SWITCH Price: $2.93 |
| 8 | 46500-MKC-A00 | PEDAL, RR. BRAKE Price: $150.27 |
| 9 | 46512-MKC-A00 | SHAFT, BRAKE PIVOT Price: $24.56 |
| 10 | 46514-MKC-A00 | SPRING, BRAKE PEDAL Price: $6.11 |
| 11 | 50358-MKC-A00 | STAY, RR. STOP SWITCH Price: $6.56 |
| 15 | 90601-KAF-003 | CLIP, SWITCH COVER Price: $3.05 |
| 17 | 94103-08700 | WASHER, PLAIN (8MM) Price: $0.98 |
