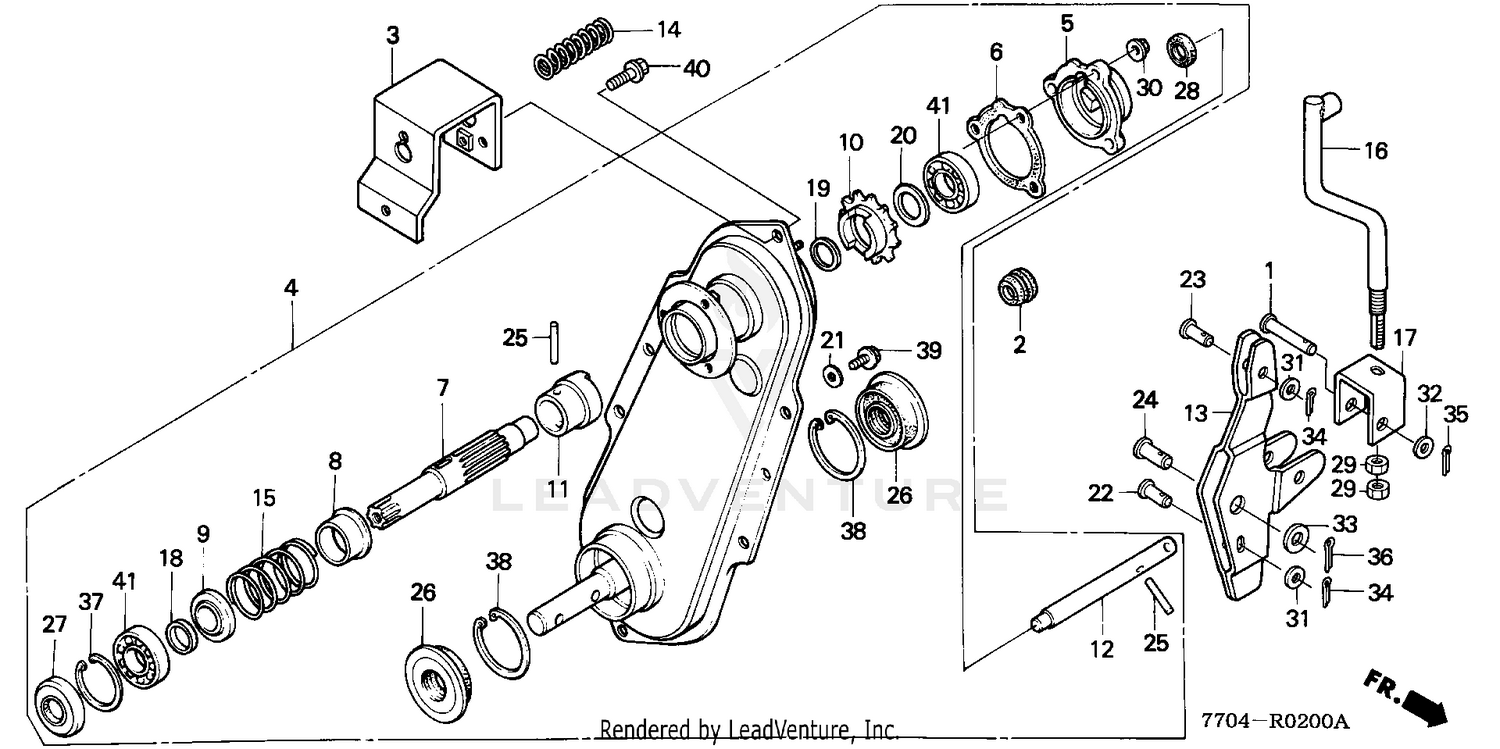

| Ref | Part Number | Description |
|---|
| 1 |
50603-MN9-650 |
PIN, STEP BAR JOINT Price: $3.31 |
| 2 |
71112-723-750 |
GROMMET, ROTARY Price: $5.46 |
| 3 |
71229-770-000ZC |
PLATE, ROTARY REINFORCEMENT *R280* (POWER RED) Price: $46.66 |
| 4 |
71300-770-000ZC |
TRANSMISSION ASSY., SECONDARY *R280* (POWER RED) Price: $1,103.66 |
| 5 |
71317-770-000 |
METAL, CLUTCH Price: $119.74 |
| 6 |
71372-770-801 |
GASKET, CLUTCH METAL Price: $6.94 |
| 7 |
73252-770-000 |
SHAFT, CLUTCH Price: $211.00 |
| 8 |
73258-723-750 |
RETAINER A, CLUTCH SPRING Price: $8.34 |
| 9 |
73259-723-750 |
RETAINER B, CLUTCH SPRING Price: $8.34 |
| 10 |
73550-723-750 |
SPROCKET, SECONDARY DRIVE (11T) Price: $86.20 |
| 11 |
73551-723-750 |
SHIFTER, CLUTCH Price: $52.66 |
| 12 |
74152-770-000 |
SHAFT, CLUTCH RELEASE Price: $19.24 |
| 13 |
74153-770-000 |
LEVER, ROTARY CLUTCH Price: $44.46 |
| 14 |
74155-770-000 |
SPRING, ROTARY CLUTCH SETTING Price: $8.22 |
| 15 |
74156-723-750 |
SPRING, CLUTCH Price: $11.42 |
| 16 |
74166-770-000 |
BAR, REVERSE STOP Price: $33.54 |
| 17 |
74168-770-000 |
ARM, REVERSE STOP BAR Price: $15.06 |
| 18 |
76213-758-L20 |
COLLAR, BLADE SHAFT Price: $7.14 |
| 19 |
90453-428-000 |
WASHER, THRUST (22MM) Price: $3.64 |
| 20 |
90454-428-000 |
SEE PART DETAILS - PRI; WASHER, THRUST (20X1.00) Price: $3.34 |
| 21 |
90463-KRM-840 |
SEE PART DETAILS - PRI; WASHER, SEALING (6.2X12X1.2) Price: $1.72 |
| 22 |
90752-732-000 |
PIN, CLUTCH ARM Price: $5.16 |
| 23 |
90752-735-800 |
PIN, AUXILIARY CHANGE LEVER JOINT Price: $4.26 |
| 24 |
90757-723-750 |
PIN (10X30) Price: $8.96 |
| 25 |
90758-723-750 |
PIN, ROTARY CLUTCH (5X33.5) Price: $4.14 |
| 26 |
91208-723-751 |
SEE PART DETAILS - PRI; SEAL, WATER (30X62X14) Price: $20.78 |
| 27 |
91209-723-751 |
SEE PART DETAILS - PRI; OIL SEAL (20X52X6) Price: $12.46 |
| 28 |
91210-723-751 |
SEE PART DETAILS - PRI; OIL SEAL (12X21X5) Price: $6.80 |
| 29 |
94001-08000-0S |
SEE PART DETAILS - PRI; NUT, HEX. (8MM) (Honda Code 0167338). Price: $1.64 |
| 30 |
94050-08080 |
SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0468447). Price: $1.18 |
| 31 |
94101-06800 |
SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900). Price: $0.82 |
| 32 |
94102-08000 |
WASHER, PLAIN (8MM) (Honda Code 0199596). Price: $1.18 |
| 33 |
94102-10000 |
SEE PART DETAILS - PRI; WASHER, PLAIN (10MM) (Honda Code 0172551). Price: $0.94 |
| 34 |
94201-16100 |
PIN, COTTER (1.6X10) Price: $1.30 |
| 35 |
94201-16120 |
PIN, COTTER (1.6X12) Price: $1.30 |
| 36 |
94201-30150 |
PIN, COTTER (3.0X15) Price: $0.76 |
| 37 |
94520-52000 |
CIRCLIP (INNER) (52MM) Price: $3.94 |
| 38 |
94520-62000 |
CIRCLIP (INNER) (62MM) Price: $2.80 |
| 39 |
95701-06010-08 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X10) (Honda Code 2204709). Price: $2.02 |
| 40 |
95701-08016-00 |
SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) Use from Engine SN 1000016. Price: $2.26 |
