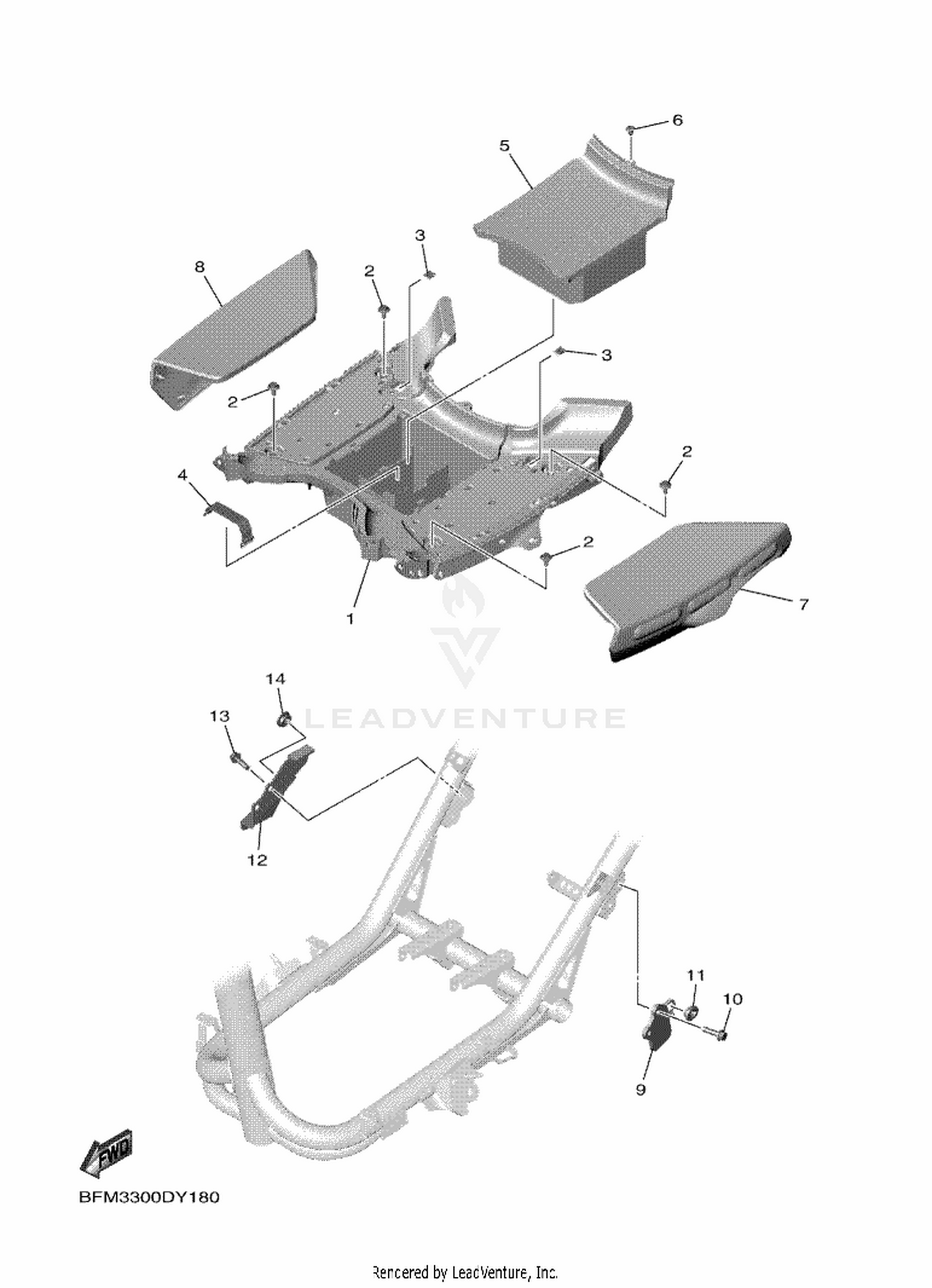

18 FOOTREST
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | BFM-F7481-00 | BOARD, FOOTREST Price: Call Us |
| 2 | 90109-06322 | BOLT Price: Call Us |
| 3 | 90183-05807 | NUT, SPRING Price: Call Us |
| 4 | 31C-H2131-00 | BAND, BATTERY Price: Call Us |
| 5 | BFM-H2129-00 | COVER, BATTERY Price: Call Us |
| 6 | 90269-06816 | RIVET Price: Call Us |
| 7 | BFM-F7496-00 | MOLE 1 Price: Call Us |
| 8 | BFM-F7497-00 | MOLE 2 Price: Call Us |
| 9 | BFM-F7432-10 | BRACKET 1 Price: Call Us |
| 10 | 95817-08030 | BOLT, FLANGE Price: Call Us |
| 11 | 90480-01558 | GROMMET Price: Call Us |
| 12 | BFM-F7442-10 | BRACKET 2 Price: Call Us |
| 13 | 95817-08030 | BOLT, FLANGE Price: Call Us |
