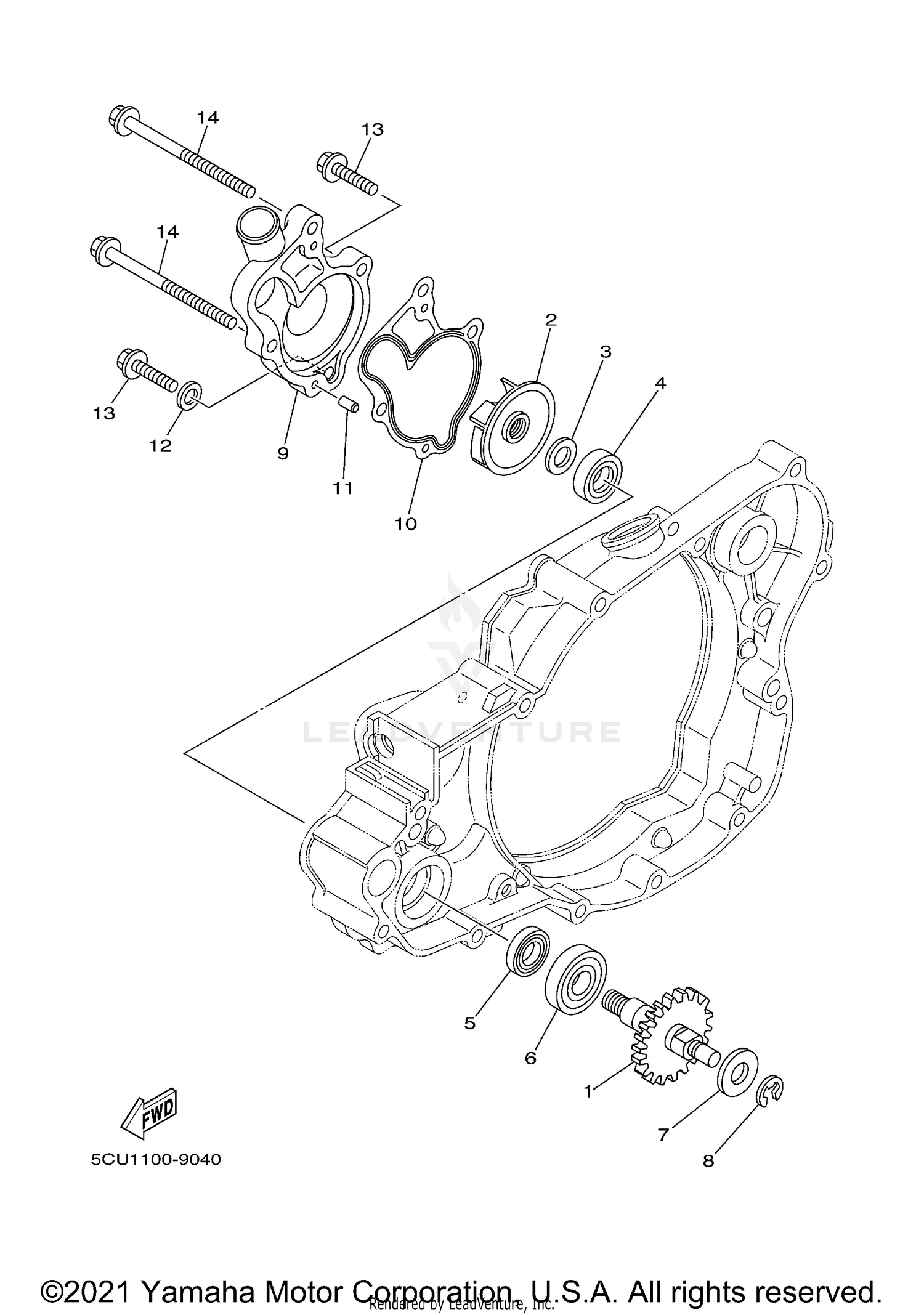

WATER PUMP
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5CU-12459-00-00 | GEAR, IMPELLER SHAFT Price: $143.99 |
| 2 | 5DJ-12451-00-00 | IMPELLER, WATER PUMP Price: $97.99 |
| 3 | 90201-08512-00 | WASHER, PLATE Price: $9.49 |
| 4 | 93109-11073-00 | OIL SEAL Price: $12.49 |
| 5 | 93102-12106-00 | OIL SEAL (SD 12-22-5 HS) Price: $12.49 |
| 6 | 93306-00105-00 | BEARING (B6001) Price: $33.99 |
| 7 | 90201-08784-00 | WASHER, PLATE Price: $3.50 |
| 8 | 99001-06600-00 | CIRCLIP Price: $1.10 |
| 9 | 5MW-12422-00-00 | COVER, HOUSING Price: $217.99 |
| 10 | 5XF-12428-00-00 | GASKET, HOUSING COVER 2 Price: $7.49 |
| 11 | 93604-10011-00 | PIN, DOWEL Price: $8.49 |
| 12 | 90430-06014-00 | GASKET Price: $8.60 |
| 13 | 95022-06025-00 | BOLT, FLANGE Price: $1.90 |
