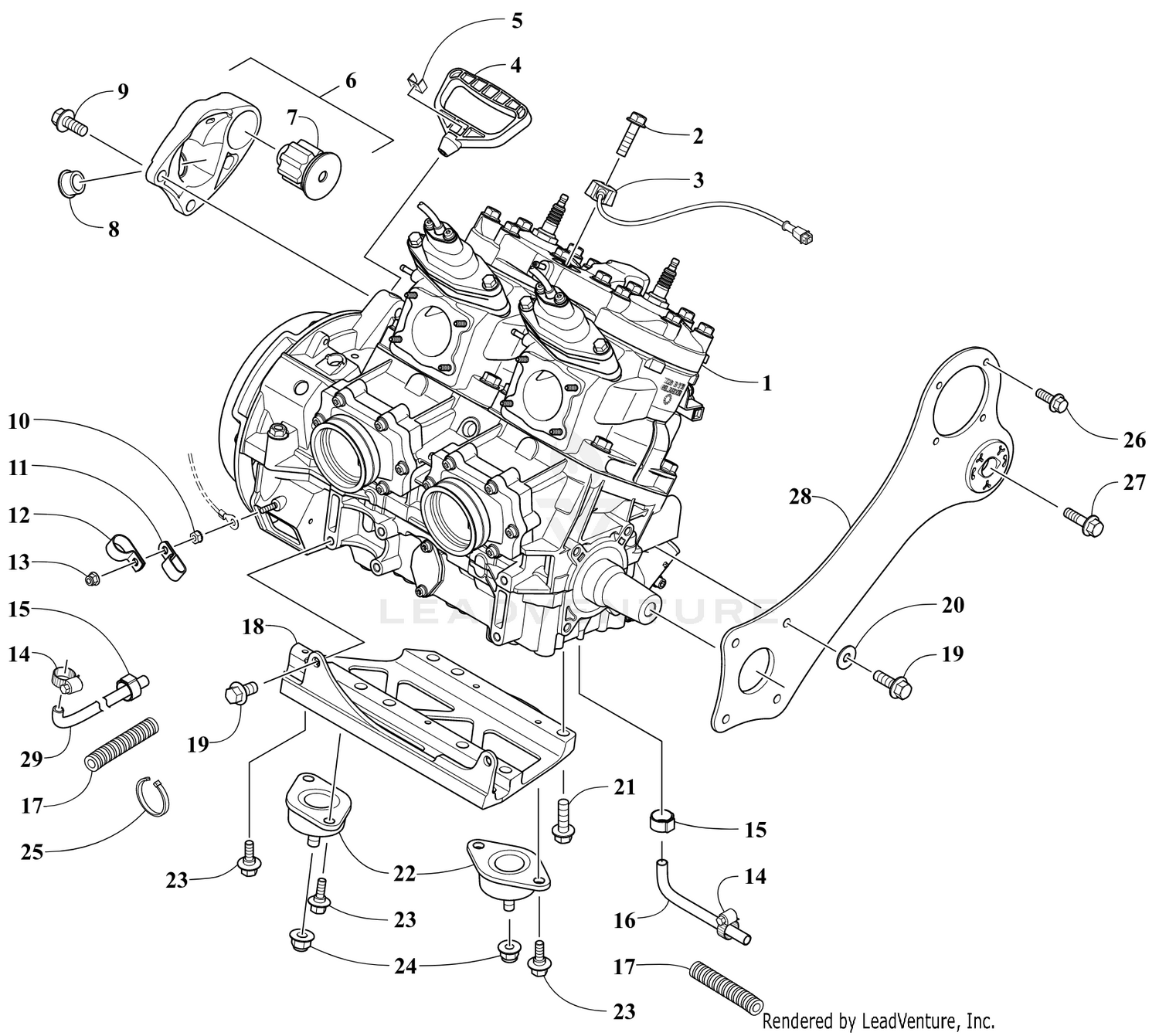

ENGINE AND RELATED PARTS [106207]

ENGINE AND RELATED PARTS [106207]

Parts (28)

RefPart NumberDescription
1 0962-075 Engine, Short Block Price: Call Us
1 0962-077 Engine, Long Block Price: $5,872.95
2 0923-049 Screw, Cap Price: $2.39
3 0902-024 Sensor, Knock Price: $72.95
4 0636-363 Handle, Recoil Price: $15.71
5 0606-885 Cap, Recoil Handle Price: $1.45
7 0608-630 Mount, Engine Price: $46.95
8 0608-633 Bushing Price: $0.71
9 8409-026 Screw, Cap Price: $1.70
10 0623-038 Nut Price: $0.35
11 1623-733 Clamp, Routing Price: $2.17
12 1623-675 Clamp, Routing Price: $2.05
13 8427-602 Nut, Hex Price: $0.23
14 0623-373 Clamp, Hose Price: $3.08
15 0610-563 Clamp, Hose Price: $1.89
16 1610-009 Hose, Coolant - Throttle Body Price: $38.95
17 0619-776 Conduit, Flexible - 5 ft Price: $15.71
19 8409-821 Screw, Cap Price: $0.71
20 8050-252 WASHER,FLAT- 5/16 X .875 X .063 Z&Y Price: $0.70
21 8409-036 Screw, Cap Price: $2.05
22 0708-658 Mount, Engine - Lower Price: $67.95
23 1623-944 Screw, Shoulder Price: $2.05
24 8427-002 Nut, Lock Price: $1.08
25 0123-788 Tie, Cable - 8 in Price: $0.23
25 0123-903 Tie, Cable Price: $0.59
26 8408-621 Screw, Cap Price: $1.08
27 8408-826 Screw, Cap Price: $0.46
28 0708-681 Plate, Engine Mounting - PTO Price: $233.95
