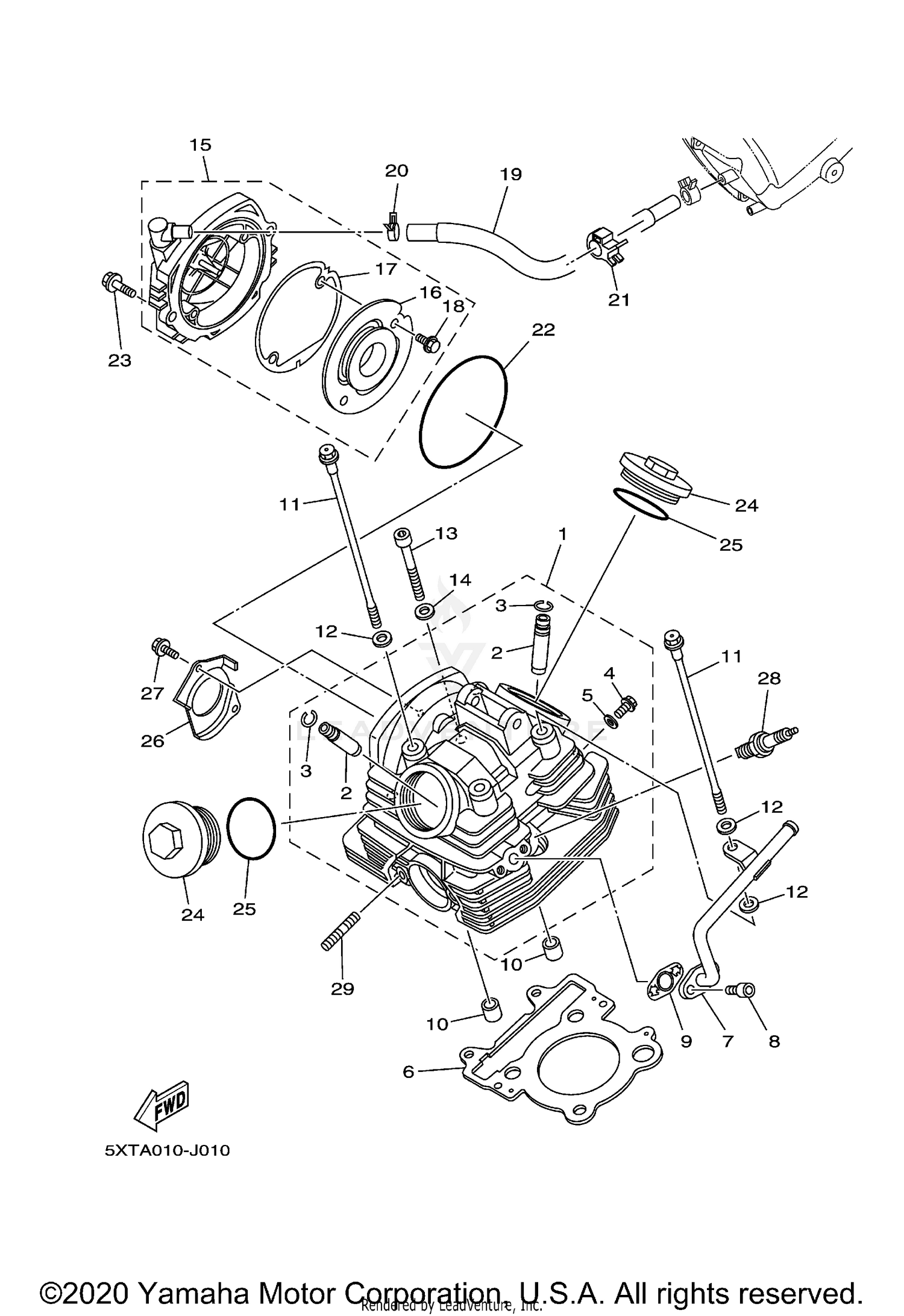

| Ref | Part Number | Description |
|---|
| 1 |
5XT-11102-10-00 |
CYLINDER HEAD ASSY Price: $521.99 |
| 2 |
5H0-11133-11-00 |
GUIDE, INTAKE VALVE Price: $74.99 |
| 3 |
93440-10085-00 |
CIRCLIP Price: $9.49 |
| 4 |
90153-06002-00 |
SCREW, HEXAGON Price: $9.49 |
| 5 |
90430-06014-00 |
GASKET Price: $8.60 |
| 6 |
5XT-11181-20-00 |
GASKET, CYLINDER HEAD 1 Price: $50.99 |
| 7 |
5XT-14871-20-00 |
PIPE 1 Price: $62.99 |
| 8 |
91314-06016-00 |
BOLT, HEXAGON SOCKET HEAD Price: $9.49 |
| 9 |
5XT-14815-00-00 |
GASKET Price: $5.99 |
| 10 |
99530-14016-00 |
PIN, DOWEL A Price: $3.80 |
| 11 |
90105-08117-00 |
BOLT, FLANGE Price: $9.49 |
| 12 |
90201-080L7-00 |
WASHER, PLATE This part replaces 90201-08609-00. Price: $4.05 |
| 13 |
91314-08045-00 |
BOLT, HEXAGON SOCKET HEAD Price: $9.49 |
| 14 |
90201-06018-00 |
WASHER, PLATE Price: $5.49 |
| 16 |
5XT-11165-00-00 |
PLATE, BREATHER Price: $15.49 |
| 17 |
4D3-11196-00-00 |
GASKET, CYLINDER HEAD SIDE Price: $7.49 |
| 18 |
95022-06010-00 |
BOLT, FLANGE This part replaces 90105-06126-00. Price: $6.49 |
| 19 |
5XT-11166-20-00 |
PIPE, BREATHER 1 Price: $52.99 |
| 20 |
90467-11044-00 |
CLIP This part replaces 90467-12053-00. Price: $9.49 |
| 21 |
90464-15192-00 |
CLAMP Price: $9.49 |
| 22 |
93211-05471-00 |
O-RING Price: $16.49 |
| 23 |
95024-06020-00 |
BOLT, FLANGE (SMALL HEAD) Price: $6.49 |
| 24 |
5XT-11186-00-00 |
COVER, CYLINDER HEAD SIDE 2 Price: $49.99 |
| 25 |
93210-54001-00 |
O-RING Price: $8.49 |
| 26 |
5XT-1111F-00-00 |
PLATE Price: $21.99 |
| 27 |
95022-06012-00 |
BOLT, FLANGE This part replaces 90105-06078-00. Price: $3.55 |
