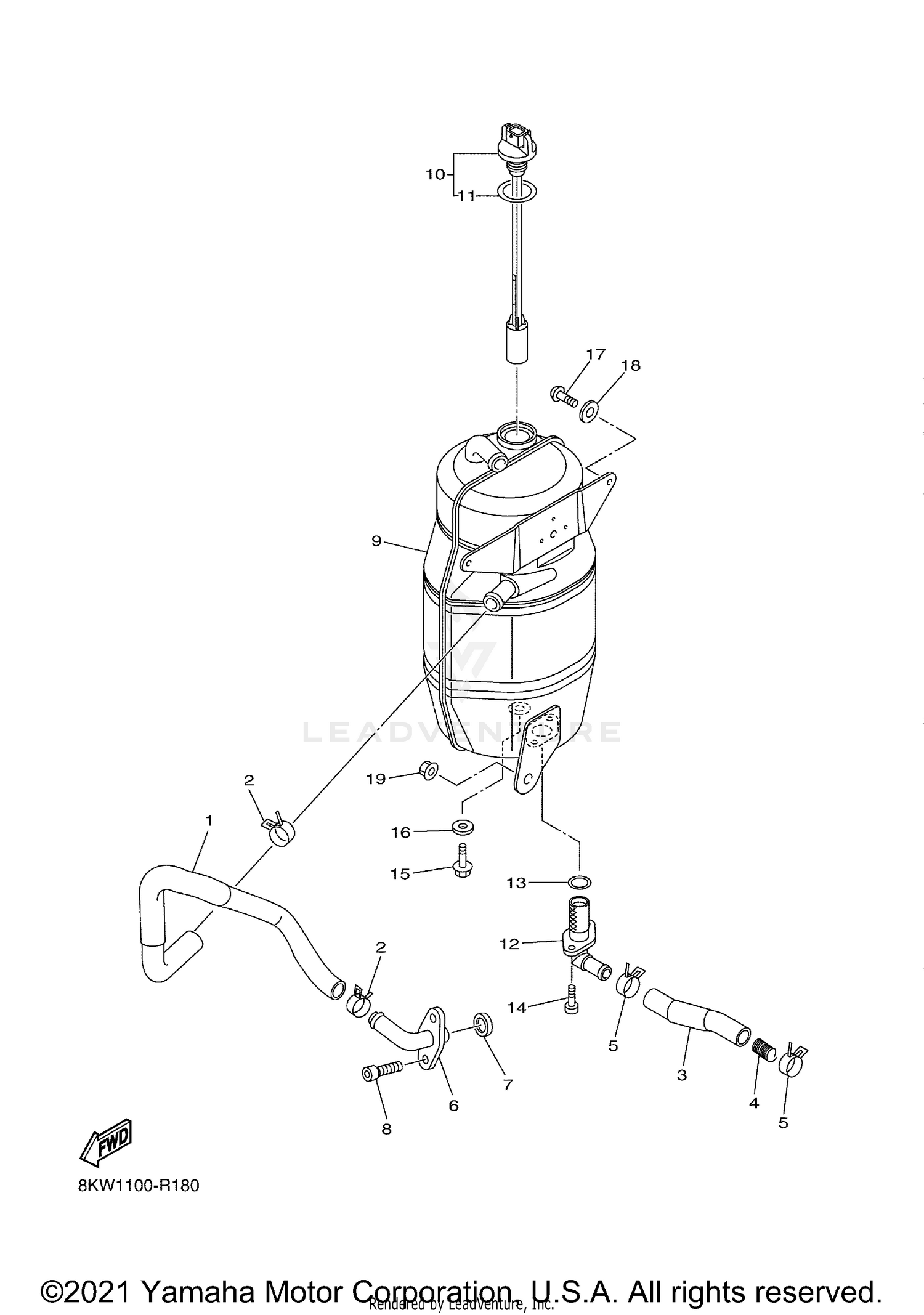

| Ref | Part Number | Description |
|---|
| 1 |
8KW-13464-00-00 |
HOSE, OIL 1 Price: $59.99 |
| 2 |
90467-22097-00 |
CLIP Price: $10.49 |
| 3 |
8KW-13465-00-00 |
HOSE, OIL 2 Price: $24.99 |
| 4 |
90501-080A7-00 |
SPRING, COMPRESSION Price: $18.49 |
| 5 |
90467-22097-00 |
CLIP Price: $10.49 |
| 6 |
8ES-13115-00-00 |
CONNECTOR, SUCTION PIPE Price: $47.99 |
| 7 |
93210-16629-00 |
O-RING Price: $8.49 |
| 8 |
91312-06016-00 |
BOLT, HEXAGON SOCKET HEAD Price: $6.49 |
| 9 |
8HV-21751-00-00 |
TANK, OIL Price: $806.99 |
| 10 |
8GL-85720-00-00 |
OIL LEVEL GAUGE ASSY Price: $65.99 |
| 11 |
8FP-85075-00-00 |
O-RING Price: $12.49 |
| 12 |
8GL-13406-00-00 |
OIL PIPE COMP. 2 Price: $131.99 |
| 13 |
93210-24001-00 |
O-RING Price: $9.49 |
| 14 |
91312-06016-00 |
BOLT, HEXAGON SOCKET HEAD Price: $6.49 |
| 15 |
95817-08012-00 |
BOLT, FLANGE This part replaces 95802-08012-00. Price: $5.49 |
| 16 |
90430-08204-00 |
GASKET Price: $8.99 |
| 17 |
92012-06016-00 |
BOLT, BUTTON HEAD Price: $9.49 |
| 18 |
90201-06078-00 |
WASHER, PLATE Price: $6.49 |
