Parts Catalog

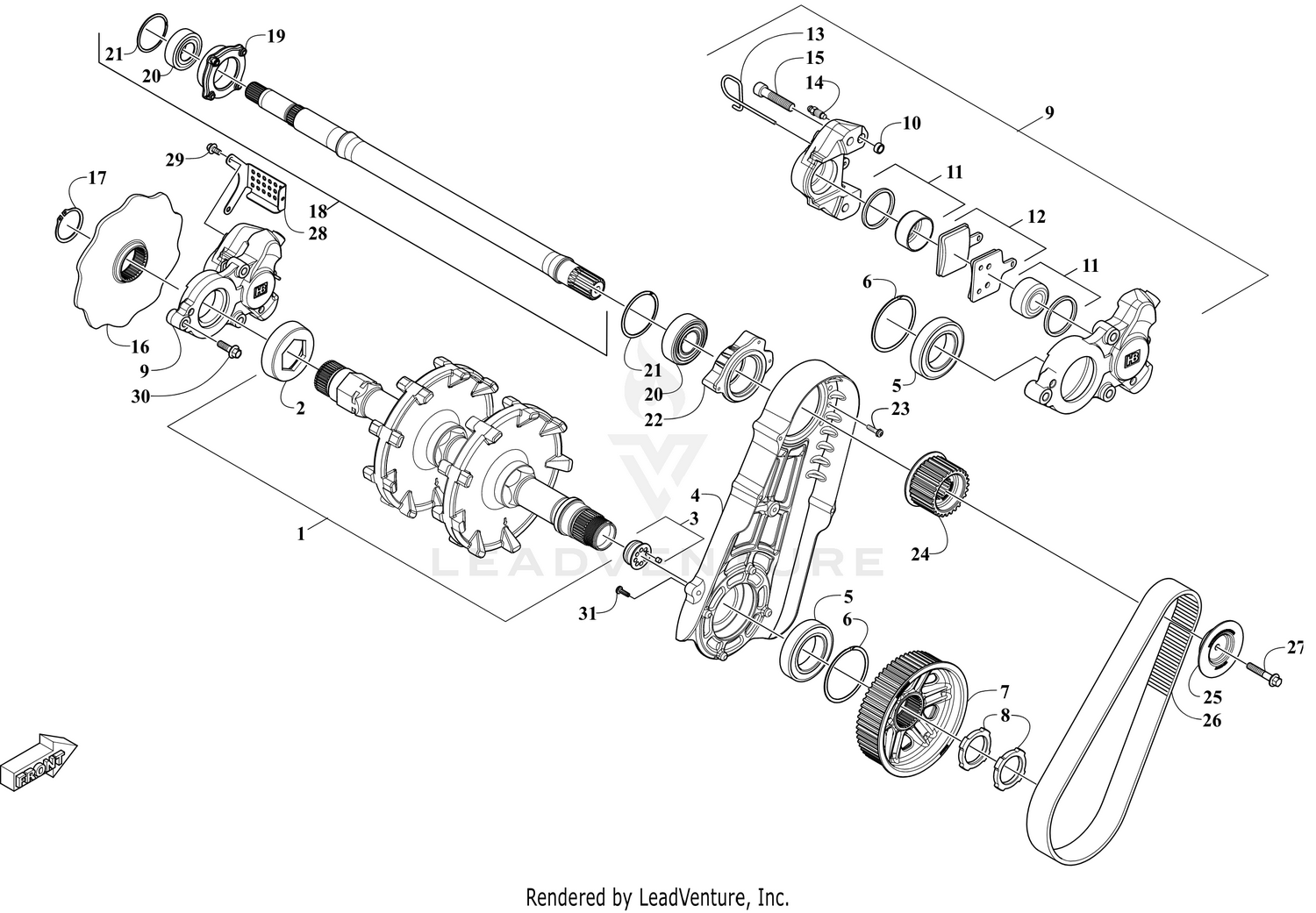

DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES [110618]

Parts (24)

Ref	Part Number	Description
2	1602-984	Seal Price: $15.71
3	1702-072	Plug, Magnetic - Assembly Price: $18.13
5	2602-198	Bearing Price: $26.95
6	2602-280	Ring, Retaining Price: $3.88
7	3602-356	Pulley, Drive - 60T Price: $208.95
8	3602-051	Nut Price: $13.28
10	2602-411	Seal Price: $5.59
11	2602-410	Piston Set Price: $82.95
13	3602-060	Pin, Retaining Price: $19.35
14	2602-408	Fitting, Bleed Price: $7.23
15	2602-412	Screw, Cap Price: $5.15
16	3602-297	Disc, Brake Price: $87.95
17	2602-629	Ring, Retaining Price: $2.91
19	3602-421	Hub, Bearing Housing Price: $21.59
20	2602-247	Bearing Price: $21.77
21	2602-236	Ring, Retaining Price: $3.38
23	8468-631	SCREW,MACH-TSPNH M6X1.0X30 CL8.8 W/2353 Price: $4.23
24	3602-353	Pulley, Drive - 27T Price: $80.95
25	3602-377	Washer, 27T Flange Price: $29.95
26	0627-128	Belt, Drive Price: $199.95
27	8411-841	SCREW,CAP-HFHM8X1.25X40CL10.9RIEBLK/2353 Price: $6.99
28	3602-399	Shield, Brake Disc Price: $8.29
29	8408-613	Screw, Cap Price: $1.66
30	8408-826	Screw, Cap Price: $0.46
