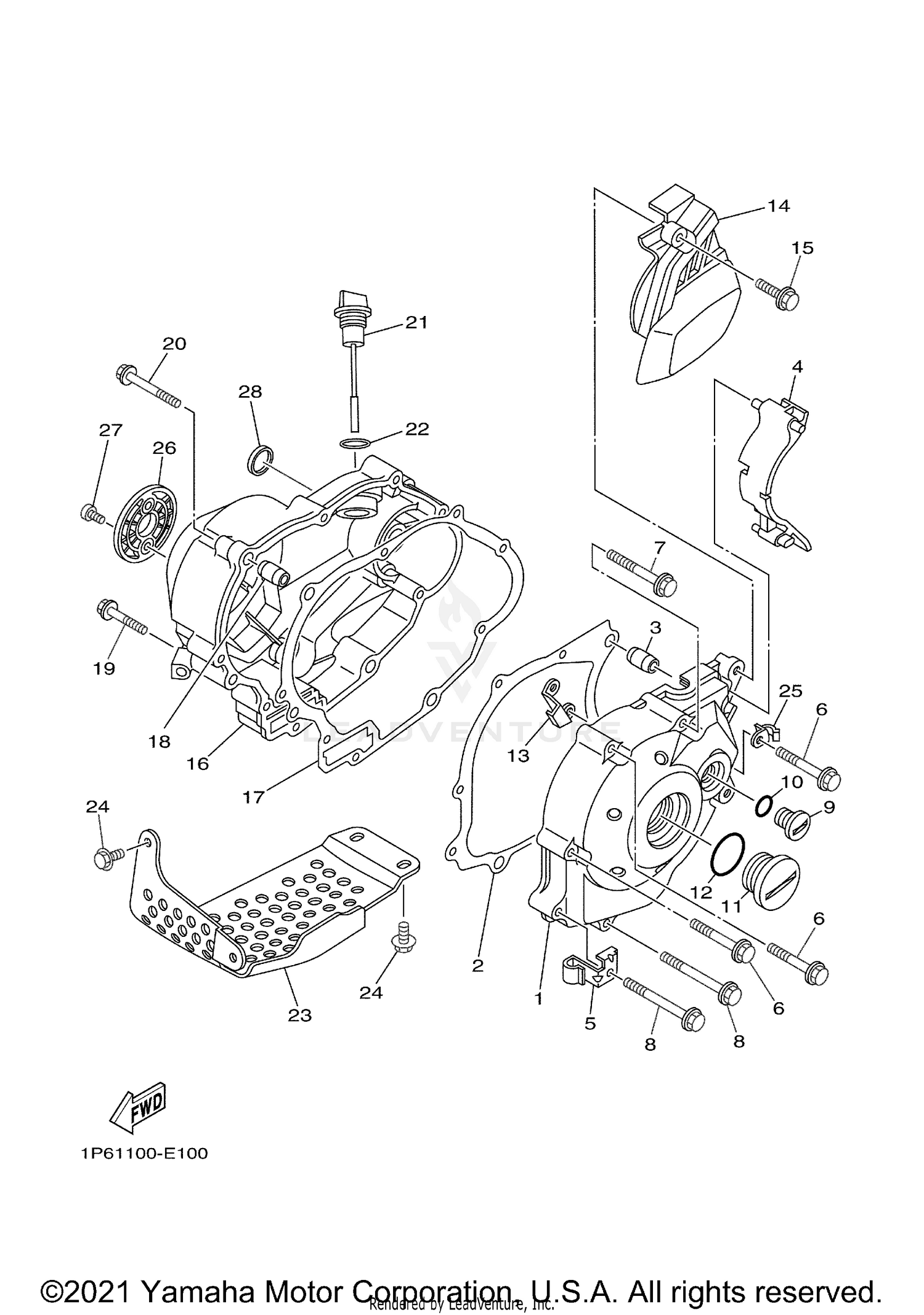

| Ref | Part Number | Description |
|---|
| 2 |
1P6-E5451-00-00 |
GASKET, CRANKCASE COVER 1 Price: $28.99 |
| 3 |
99530-10114-00 |
PIN, DOWEL Price: $2.65 |
| 4 |
1P6-E7466-00-00 |
GUIDE, CHAIN Price: $122.99 |
| 5 |
1P6-E5484-01-00 |
CLAMP 2 Price: $9.49 |
| 6 |
95027-06040-00 |
BOLT, FLANGE Price: $3.55 |
| 7 |
95027-06050-00 |
BOLT, FLANGE Price: $2.75 |
| 8 |
90105-065A1-00 |
BOLT, FLANGE Price: $4.50 |
| 9 |
2CJ-E5167-00-00 |
PLUG, BLIND 1 Price: $15.49 |
| 10 |
93210-14369-00 |
O-RING This part replaces 93210-14899-00. Price: $8.49 |
| 11 |
2CJ-E5168-00-00 |
PLUG, BLIND 2 Price: $19.99 |
| 12 |
93210-32816-00 |
O-RING Price: $3.50 |
| 13 |
1P6-E5113-00-00 |
PLATE Price: $2.20 |
| 14 |
1P6-E5418-00-00 |
COVER, CHAIN CASE Price: $44.99 |
| 15 |
95022-06025-00 |
BOLT, FLANGE Price: $1.90 |
| 17 |
1P6-E5461-00-00 |
GASKET, CRANKCASE COVER 2 Price: $24.99 |
| 18 |
99530-10114-00 |
PIN, DOWEL Price: $2.65 |
| 19 |
95027-06040-00 |
BOLT, FLANGE Price: $3.55 |
| 20 |
95027-06050-00 |
BOLT, FLANGE Price: $2.75 |
| 21 |
1P6-E5362-00-00 |
PLUG, OIL LEVEL Price: $25.99 |
| 22 |
93210-19123-00 |
O-RING This part replaces 93210-19809-00. Price: $8.99 |
| 23 |
1P6-E5436-01-00 |
COVER, STARTING MOTOR Price: $66.99 |
| 24 |
95814-08016-00 |
BOLT, FLANGE This part replaces 95822-08016-00. Price: $10.49 |
| 25 |
90465-08803-00 |
CLAMP Price: $6.49 |
| 26 |
1P6-E5431-00-00 |
COVER, CRANKCASE 3 Price: $37.99 |
| 27 |
98507-05008-00 |
SCREW, PAN HEAD Price: $3.85 |
