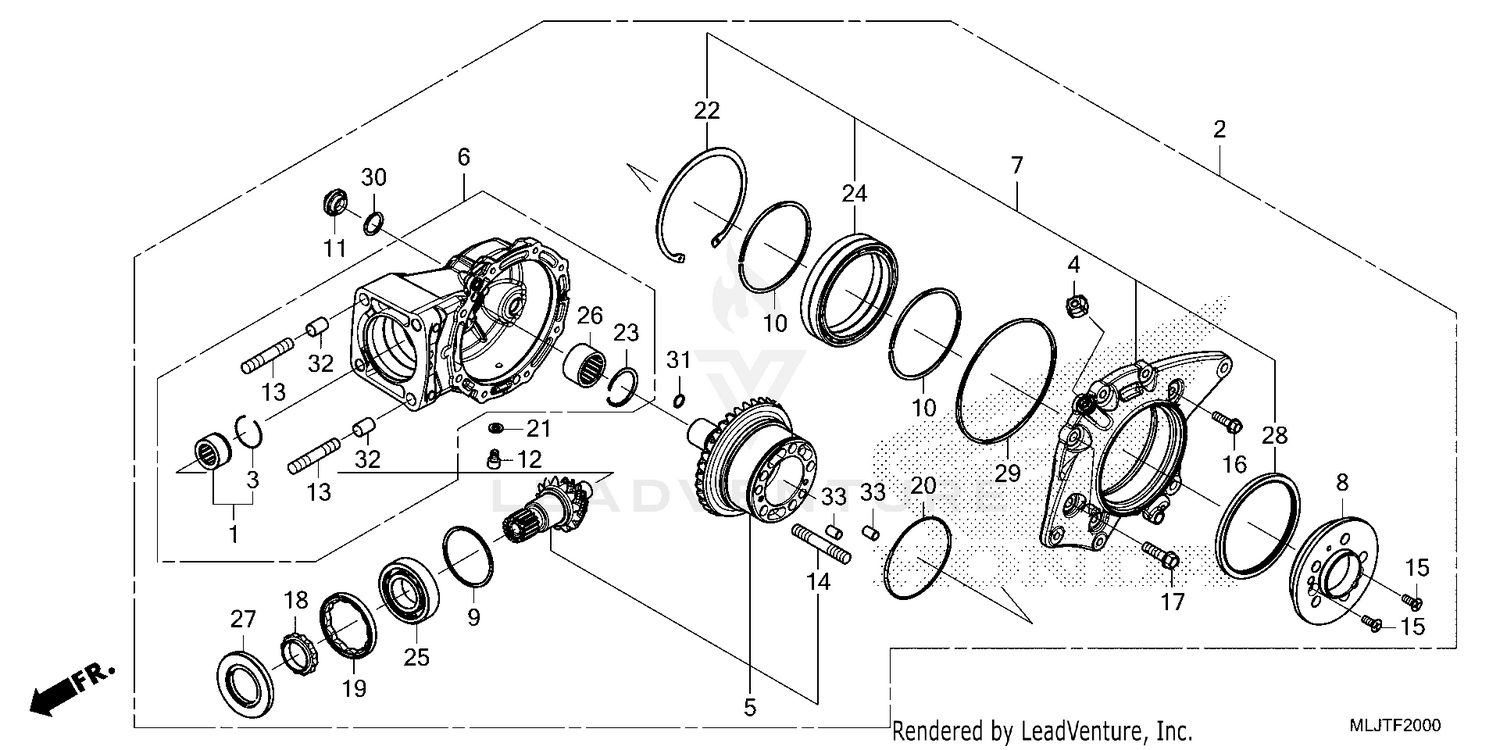

| Ref | Part Number | Description |
|---|
| 1 |
06910-MCA-000 |
BEARING SET, NEEDLE Price: $18.52 |
| 2 |
41300-MKC-A20 |
GEAR ASSY., FINAL Price: $2,019.33 |
| 3 |
41305-MB4-770 |
RING, STOPPER Price: $6.42 |
| 4 |
41306-MKC-A00 |
CAP, BREATHER Price: $8.16 |
| 5 |
41310-MKC-A00 |
GEAR SET, FINAL Price: $529.73 |
| 6 |
41311-MKC-A00 |
CASE SUB-ASSY., FINAL GEAR Price: $1,234.04 |
| 7 |
41320-MKC-A20 |
COVER SUB-ASSY., FINAL GEAR Price: $337.65 |
| 8 |
41441-MKC-A00 |
FLANGE, FINAL GEAR SIDE Price: $130.27 |
| 9 |
41450-MGE-000 |
SHIM A, PINION GEAR (1.32) Price: $12.42 |
| 9 |
41451-MGE-000 |
SHIM B, PINION GEAR (1.38) Price: $12.42 |
| 9 |
41452-MGE-000 |
SHIM C, PINION GEAR (1.44) Price: $12.42 |
| 9 |
41453-MGE-000 |
SHIM D, PINION GEAR (1.50) Price: $12.42 |
| 9 |
41454-MGE-000 |
SHIM E, PINION GEAR (1.56) Price: $12.42 |
| 9 |
41455-MGE-000 |
SHIM F, PINION GEAR (1.62) Price: $12.42 |
| 9 |
41456-MGE-000 |
SHIM G, PINION GEAR (1.68) Price: $12.42 |
| 10 |
41530-MCA-000 |
SHIM A, RING GEAR (1.82) Price: $8.96 |
| 10 |
41531-MCA-000 |
SHIM B, RING GEAR (1.88) Price: $8.96 |
| 10 |
41532-MCA-000 |
SHIM C, RING GEAR (1.94) Price: $8.96 |
| 10 |
41533-MCA-000 |
SHIM D, RING GEAR (2.00) Price: $8.96 |
| 10 |
41534-MCA-000 |
SHIM E, RING GEAR (2.06) Price: $8.96 |
| 10 |
41535-MCA-000 |
SHIM F, RING GEAR (2.12) Price: $8.96 |
| 10 |
41536-MCA-000 |
SHIM G, RING GEAR (2.18) Price: $8.96 |
| 10 |
41537-MCA-000 |
SHIM H, RING GEAR (2.24) Price: $8.96 |
| 10 |
41538-MCA-000 |
SHIM I, RING GEAR (2.30) Price: $8.96 |
| 10 |
41539-MCA-000 |
SHIM J, RING GEAR (2.36) Price: $8.96 |
| 10 |
41540-MCA-000 |
SHIM K, RING GEAR (2.42) Price: $8.96 |
| 10 |
41541-MCA-000 |
SHIM L, RING GEAR (2.48) Price: $8.96 |
| 10 |
41547-MCA-000 |
SHIM S, RING GEAR (1.76) Price: $9.71 |
| 11 |
41530-MGE-000 |
CAP, FINAL GEAR CASE HOLE Price: $20.22 |
| 12 |
90109-ME5-770 |
BOLT, SOCKET (8X11) Price: $7.20 |
| 13 |
90124-MGE-300 |
BOLT, STUD (12X48) Price: $11.96 |
| 14 |
90125-MKC-A00 |
BOLT, STUD (12X51) Price: $6.60 |
| 15 |
90132-MCA-000 |
SCREW, FLAT (6X16) Price: $1.65 |
| 16 |
90132-MKC-A00 |
BOLT, FLANGE (8X28) Price: $3.18 |
| 17 |
90134-MGE-000 |
BOLT, FLANGE (10X35) Price: $3.29 |
| 18 |
90241-MCH-000 |
NUT, LOCK (35MM) Price: $9.76 |
| 19 |
90242-MCH-000 |
NUT, LOCK (75MM) Price: $27.71 |
| 20 |
90351-MCA-003 |
O-RING Price: $7.31 |
| 21 |
90471-580-000 |
WASHER (8MM) Price: $3.40 |
| 22 |
90653-MCA-000 |
CIRCLIP (INNER) (125MM) Price: $22.44 |
| 23 |
90654-MKC-A01 |
CIRCLIP (INNER) (42) Price: $4.49 |
| 24 |
91051-MCA-003 |
BEARING, RADIAL BALL (100X125X26) Price: $135.36 |
| 25 |
91054-MKC-A01 |
BEARING, BALL SPECIAL (35X72X17) Price: $35.24 |
| 26 |
91057-MKC-A01 |
BEARING, NEEDLE (30X42X23) Price: $22.89 |
| 27 |
91254-MKC-A01 |
OIL SEAL (42X76X8) Price: $16.36 |
| 28 |
91265-MCA-003 |
OIL SEAL (110X125X7) Price: $26.31 |
| 29 |
91351-MKC-A00 |
O-RING, FINAL GEAR CASE Price: $11.96 |
| 30 |
91352-MGE-003 |
O-RING (21.5X2.9) Price: $2.22 |
| 31 |
91355-MGE-700 |
O-RING (12X1.5) Price: $2.24 |
| 32 |
94301-14200 |
PIN A, DOWEL (14X20) Price: $2.58 |
