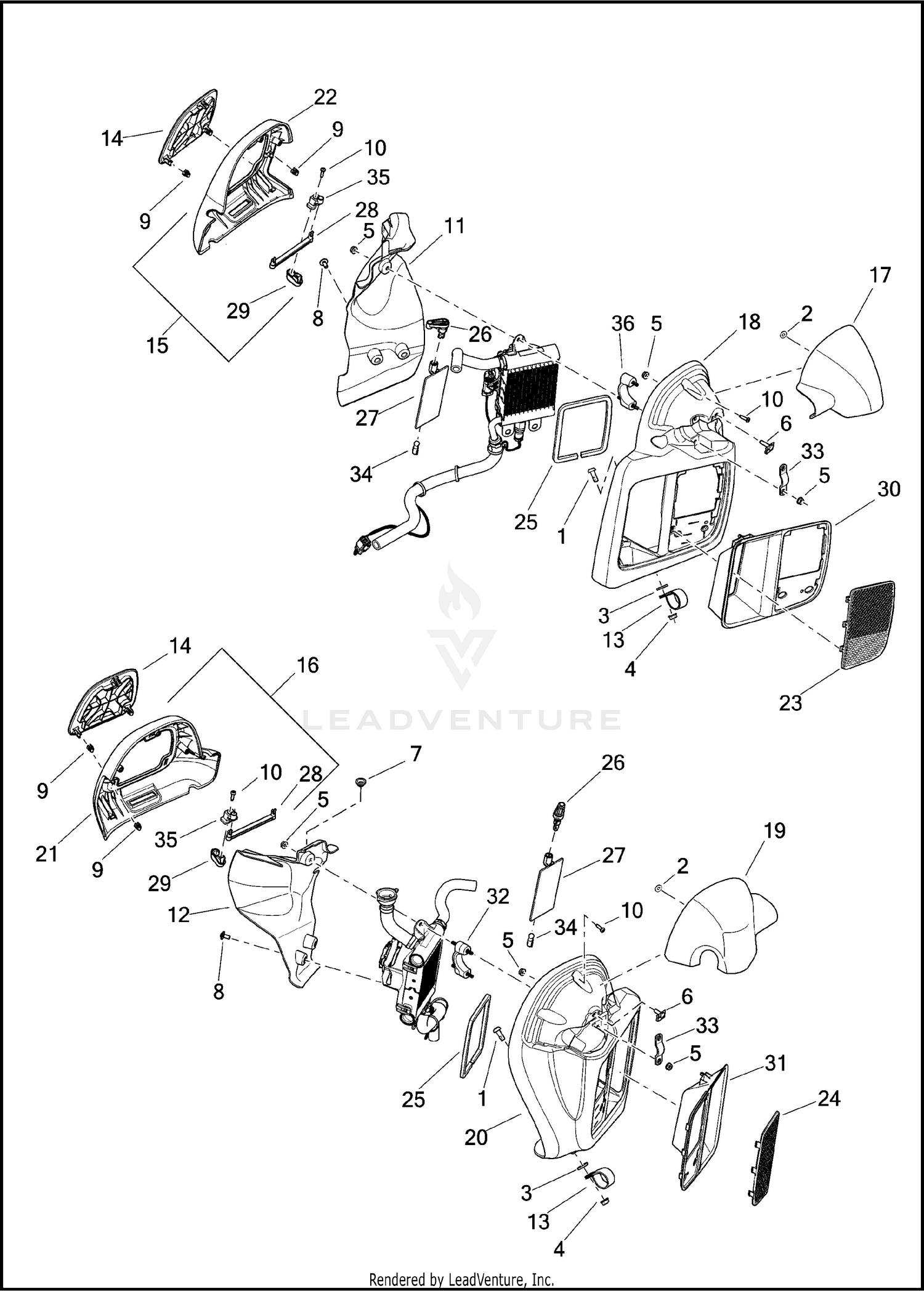

| Ref | Part Number | Description |
|---|
| 1 |
3655A |
SCREW 5/16-18 X 7/8 TORX PAN HEAD, WITH LOCKPATCH (GRADE 8) Price: $0.59 |
| 2 |
6235 |
WASHER 1/4 X 23/32 X 1/16 Price: $0.59 |
| 3 |
7415A |
WASHER 11/32 X 7/8 X 1/8 RUBBER Price: $1.22 |
| 4 |
7576 |
NUT 5/16-18 UNC KEPS FLANGE Price: $1.22 |
| 5 |
7716 |
LOCKNUT 1/4-20 X 7/16 FLANGE Price: $1.22 |
| 6 |
8175 |
BOLT RETAINER Price: $4.12 |
| 7 |
11519 |
MOUNT RUBBER, RIGHT Price: $2.40 |
| 8 |
10200052 |
SCREW 1/4-20 X 39/64 TORX SEMS SOCKET BUTTON HEAD , WITH LOCKPATCH Price: $1.18 |
| 9 |
12200025 |
CLIP Price: $1.19 |
| 10 |
12600049 |
SCREW NO. 10-24 X 3/4 PAN HEAD TORX, WITH LOCKPATCH (GRADE 8) (ZINC) Price: $0.55 |
| 11 |
26800008 |
DUCT RADIATOR (LEFT) Price: $21.40 |
| 12 |
26800009 |
DUCT RADIATOR (RIGHT) Price: $21.40 |
| 13 |
47200275 |
CLAMP Price: $1.17 |
| 14 |
57100099 |
PANEL ASSEMBLY WITH 12200025 Price: $20.57 |
| 15 |
57100107 |
GLOVE BOX ASSEMBLY WITH 12600049, 57100148, 57100164, 57100165 AND 57100225 (LEFT) Price: $91.50 |
| 16 |
57100109 |
GLOVE BOX ASSEMBLY WITH 12600049, 57100147, 57100164, 57100165 AND 57100225 (RIGHT) Price: $91.50 |
| 17 |
57100111 |
CAP FAIRING (LOWER) (LEFT) (UNPAINTED) Price: $217.81 |
| 17 |
57100242DH |
CAP FAIRING (LOWER) (LEFT) (VIVID BLACK) Price: $408.87 |
| 17 |
57100242DSW |
CAP FAIRING (LOWER) (LEFT) (MYSTERIOUS RED SUNGLO) Price: $429.31 |
| 17 |
57100242DWF |
CAP FAIRING (LOWER) (LEFT) (DEEP JADE PEARL) Not Available Price: |
| 17 |
57100242DZP |
CAP FAIRING (LOWER) (LEFT) (BILLET SILVER) Not Available Price: |
| 18 |
57100112 |
FAIRING (LOWER) (LEFT) (UNPAINTED) Price: $373.46 |
| 18 |
57100168DH |
FAIRING WITH 57100170 (LOWER) (LEFT) (VIVID BLACK) Price: $703.97 |
| 18 |
57100168DSW |
FAIRING WITH 57100170 (LOWER) (LEFT) (MYSTERIOUS RED SUNGLO) Price: $770.85 |
| 18 |
57100168DWF |
FAIRING WITH 57100170 (LOWER) (LEFT) (DEEP JADE PEARL) Not Available Price: |
| 18 |
57100168DZP |
FAIRING WITH 57100170 (LOWER) (LEFT) (BILLET SILVER) Price: $703.97 |
| 19 |
57100113 |
CAP FAIRING (LOWER) (RIGHT) (UNPAINTED) Price: $217.81 |
| 19 |
57100243DH |
CAP FAIRING (LOWER) (RIGHT) (VIVID BLACK) Price: $408.87 |
| 19 |
57100243DSW |
CAP FAIRING (LOWER) (RIGHT) (MYSTERIOUS RED SUNGLO) Price: $429.31 |
| 19 |
57100243DWF |
CAP FAIRING (LOWER) (RIGHT) (DEEP JADE PEARL) Not Available Price: |
| 19 |
57100243DZP |
CAP FAIRING (LOWER) (RIGHT) (BILLET SILVER) Price: $408.87 |
| 20 |
57100114 |
FAIRING (LOWER) (RIGHT) (UNPAINTED) Price: $373.46 |
| 20 |
57100169DH |
FAIRING WITH 57100171 (LOWER) (RIGHT) (VIVID BLACK) Price: $703.97 |
| 20 |
57100169DSW |
FAIRING WITH 57100171 (LOWER) (RIGHT) (MYSTERIOUS RED SUNGLO) Price: $770.85 |
| 20 |
57100169DWF |
FAIRING WITH 57100171 (LOWER) (RIGHT) (DEEP JADE PEARL) Not Available Price: |
| 20 |
57100169DZP |
FAIRING WITH 57100171 (LOWER) (RIGHT) (BILLET SILVER) Price: $703.97 |
| 21 |
57100147 |
FRAME GLOVE BOX, WITH 12200025 (RIGHT) Price: $39.11 |
| 22 |
57100148 |
FRAME GLOVE BOX, WITH 12200025 (LEFT) Price: $39.11 |
| 23 |
57100151 |
SCREEN RADIATOR (LEFT) Price: $17.38 |
| 24 |
57100152 |
SCREEN RADIATOR (RIGHT) Price: $17.38 |
| 25 |
57100153 |
GASKET RADIATOR Price: $12.02 |
| 26 |
57100154 |
HINGE Price: $23.37 |
| 27 |
57100155 |
DOOR VENT Price: $67.75 |
| 28 |
57100164 |
LINK DOOR VENT Price: $5.53 |
| 29 |
57100165 |
KNOB DOOR VENT Price: $5.53 |
| 30 |
57100170 |
FASCIA ASSEMBLY (LOWER) (LEFT) Price: $44.18 |
| 31 |
57100171 |
FASCIA ASSEMBLY (LOWER) (RIGHT) Price: $44.18 |
| 32 |
57100172 |
CLAMP LOWER FAIRING Price: $30.81 |
| 33 |
57100187 |
RETAINER U-BOLT Price: $2.91 |
| 34 |
57100200 |
PIN DOOR, VENT Price: $6.26 |
| 35 |
57100225 |
SLIDER DOOR, VENT Price: $5.53 |
