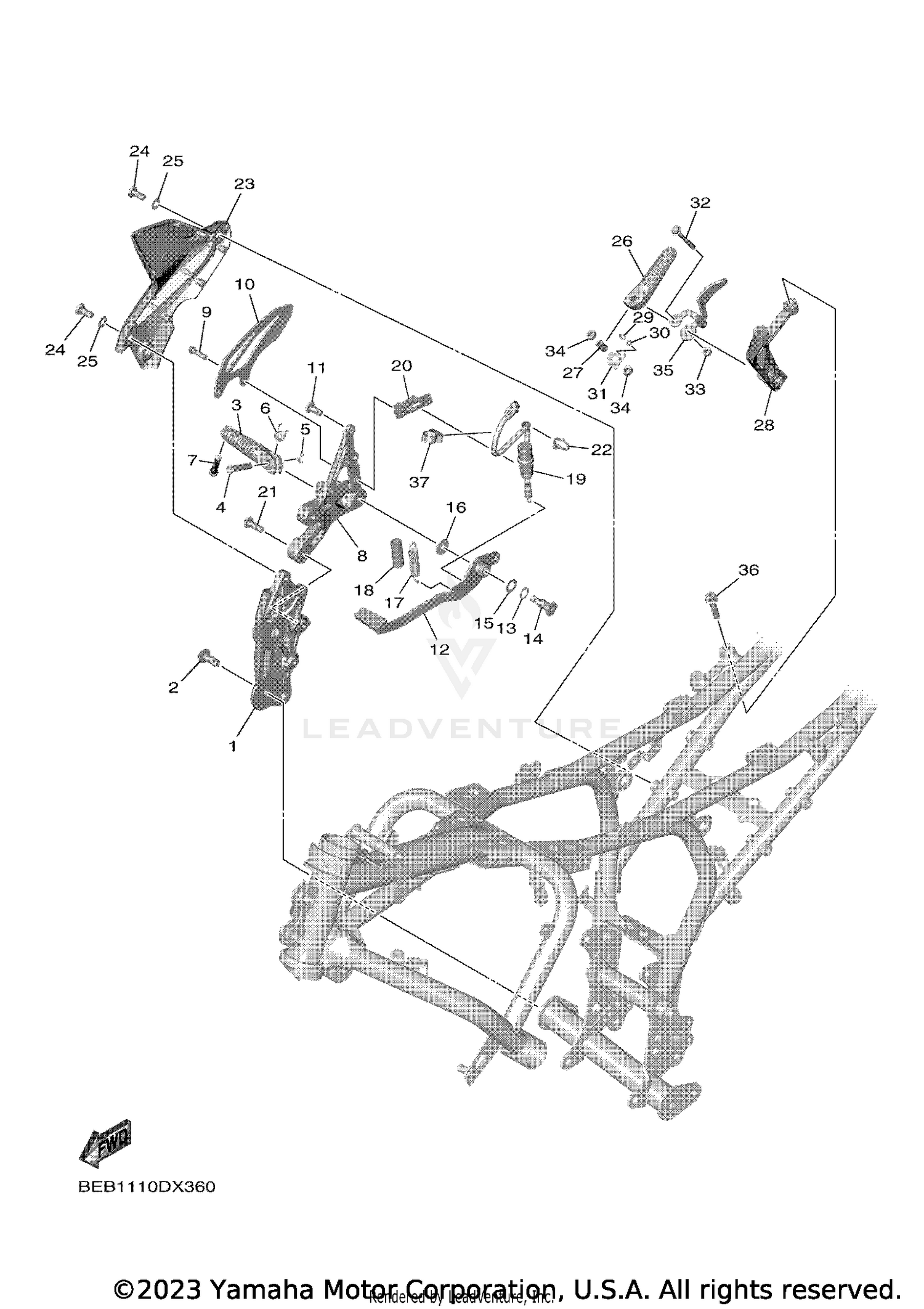

| Ref | Part Number | Description |
|---|
| 1 |
BEB-274A4-00-00 |
BRACKET,ADAPTER 2 Price: $180.99 |
| 2 |
90111-10006-00 |
BOLT, HEX. SOCKET BUTTON This part replaces 90111-10060-00. Price: $5.99 |
| 3 |
B7N-27461-00-00 |
FOOTREST 4 Price: $19.49 |
| 4 |
91702-08040-00 |
PIN, CLEVIS This part replaces 91701-08040-00. Price: $4.85 |
| 5 |
91490-25020-00 |
PIN. COTTER This part replaces 91402-25015-00. Price: $3.45 |
| 6 |
90508-18135-00 |
SPRING, TORSION Price: $11.49 |
| 7 |
90109-08269-00 |
BOLT This part replaces 90109-08268-00. Price: $6.49 |
| 8 |
BEB-27443-00-00 |
BRACKET 3 Price: $135.99 |
| 9 |
92012-06025-00 |
BOLT, BUTTON HEAD Price: $3.40 |
| 10 |
BEB-27446-00-00 |
PLATE 2 Price: $45.99 |
| 11 |
90111-08038-00 |
BOLT, HEX. SOCKET BUTTON Price: $11.49 |
| 12 |
BEB-27211-00-00 |
PEDAL, BRAKE Price: $60.99 |
| 13 |
90206-12074-00 |
WASHER, WAVE Price: $10.49 |
| 14 |
4BP-27434-11-00 |
BOLT This part replaces 4BP-27434-01-00. Price: $4.65 |
| 15 |
90201-12051-00 |
WASHER, PLATE Price: $8.49 |
| 16 |
90201-08053-00 |
WASHER, PLATE Price: $6.49 |
| 17 |
90506-18022-00 |
SPRING, TENSION Price: $8.49 |
| 18 |
90446-15386-00 |
HOSE Price: $8.49 |
| 19 |
BEB-82530-00-00 |
STOP SWITCH ASSY Price: $54.99 |
| 20 |
BEB-2144G-00-00 |
STAY, STOP SWITCH Price: $10.49 |
| 21 |
90109-084F7-00 |
BOLT Price: $10.49 |
| 22 |
90464-16061-00 |
CLAMP Price: $9.49 |
| 23 |
BEB-27463-00-00 |
COVER 2 Price: $152.99 |
| 24 |
90111-08020-00 |
BOLT This part replaces 90111-08019-00. Price: $5.49 |
| 25 |
90201-08085-00 |
WASHER, PLATE This part replaces 90201-08403-00. Price: $10.49 |
| 26 |
B3L-27441-00-00 |
FOOTREST, REAR 2 Price: $16.49 |
| 27 |
90387-06697-00 |
COLLAR Price: $18.49 |
| 28 |
2CR-2742L-01-00 |
BRACKET 5 Price: $65.99 |
| 29 |
90501-12743-00 |
SPRING, COMPRESSION Price: $5.49 |
| 30 |
93501-04011-00 |
BALL Price: $9.49 |
| 31 |
5JJ-27437-01-00 |
WASHER, SPECIAL Price: $7.49 |
| 32 |
95817-06055-00 |
BOLT, FLANGE Price: $2.35 |
| 33 |
95604-06200-00 |
NUT, U FLANGE This part replaces 95607-06200-00. Price: $2.95 |
| 34 |
90387-06358-00 |
COLLAR Price: $3.90 |
| 35 |
BEB-27314-00-00 |
STOPPER Price: $44.99 |
| 36 |
95817-08035-00 |
BOLT, FLANGE This part replaces 95812-08035-00. Price: $10.49 |
