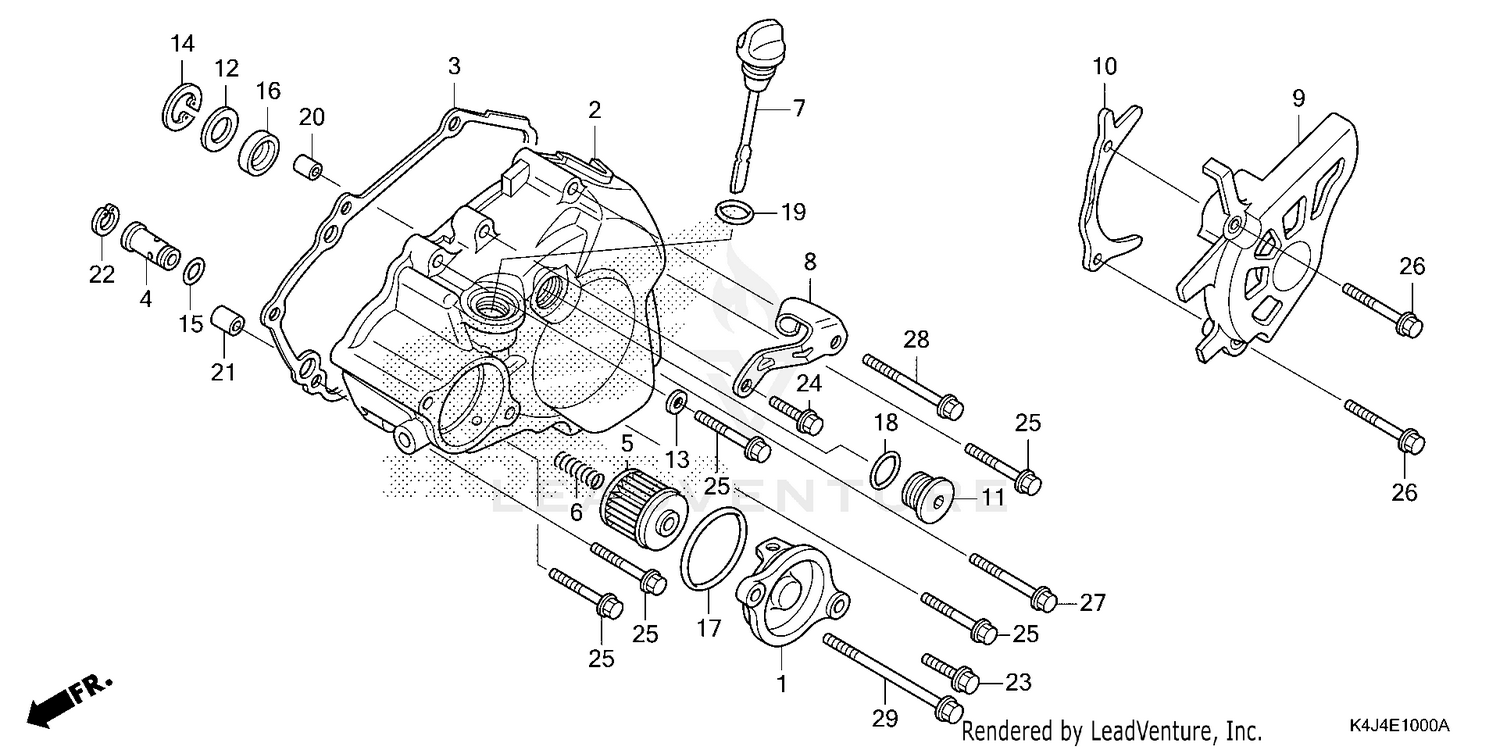

| Ref | Part Number | Description |
|---|
| 1 |
11333-KSE-670 |
COVER, OIL FILTER Price: $52.89 |
| 2 |
11340-KSE-671 |
COVER, L. CRANKCASE Price: $139.02 |
| 3 |
11395-KSE-672 |
GASKET, L. COVER Price: $15.65 |
| 4 |
15220-MEB-670 |
VALVE ASSY., RELIEF Price: $28.80 |
| 5 |
15412-MEN-671 |
FILTER, ENGINE OIL Price: $9.44 |
| 6 |
15414-MEB-670 |
SPRING, OIL FILTER Price: $3.00 |
| 7 |
15650-KSE-670 |
DIPSTICK, OIL Price: $15.04 |
| 8 |
22838-KSE-670 |
RECEIVER, CLUTCH CABLE Price: $9.38 |
| 9 |
23810-KSE-670 |
COVER, DRIVE SPROCKET Price: $32.11 |
| 10 |
23812-KSE-670 |
GUIDE, DRIVE CHAIN Price: $15.85 |
| 11 |
90084-MN8-010 |
CAP (14MM) This part replaces 90084-HB3-000. Price: $15.53 |
| 12 |
90401-MEY-670 |
WASHER (13X24X1.6) Price: $2.25 |
| 13 |
90463-ML7-000 |
WASHER, SEALING (6.5MM) Price: $3.53 |
| 14 |
90602-MEB-670 |
CIRCLIP, SPECIAL (INNER) (24MM) Price: $3.85 |
| 15 |
90751-GK1-003 |
O-RING (8.5X1.7) Price: $3.09 |
| 16 |
91204-HP1-601 |
OIL SEAL (10X21X5) Price: $4.62 |
| 17 |
91302-K0G-911 |
O-RING (39.8X2.2) Price: $1.15 |
| 18 |
91303-377-000 |
O-RING (13.8X2.5) Price: $4.29 |
| 19 |
91307-035-000 |
O-RING (18X3) Price: $3.40 |
| 20 |
94301-08140 |
PIN, DOWEL (8X14) (Honda Code 0069310) Price: $2.35 |
| 21 |
94301-10160 |
PIN, DOWEL (10X16) (Honda Code 0058206) Price: $2.58 |
| 22 |
94520-14000 |
CIRCLIP (INNER) (14MM) Price: $1.05 |
| 23 |
96001-06016-00 |
BOLT, FLANGE (6X16) Price: $1.10 |
| 24 |
96001-06018-00 |
BOLT, FLANGE (6X18) Price: $1.88 |
| 25 |
96001-06028-00 |
BOLT, FLANGE (6X28) Price: $2.27 |
| 26 |
96001-06030-00 |
BOLT, FLANGE (6X30) Price: $1.60 |
| 27 |
96001-06035-00 |
BOLT, FLANGE (6X35) (Honda Code 2112209) Price: $1.60 |
| 28 |
96001-06045-00 |
BOLT, FLANGE (6X45) Price: $2.24 |
