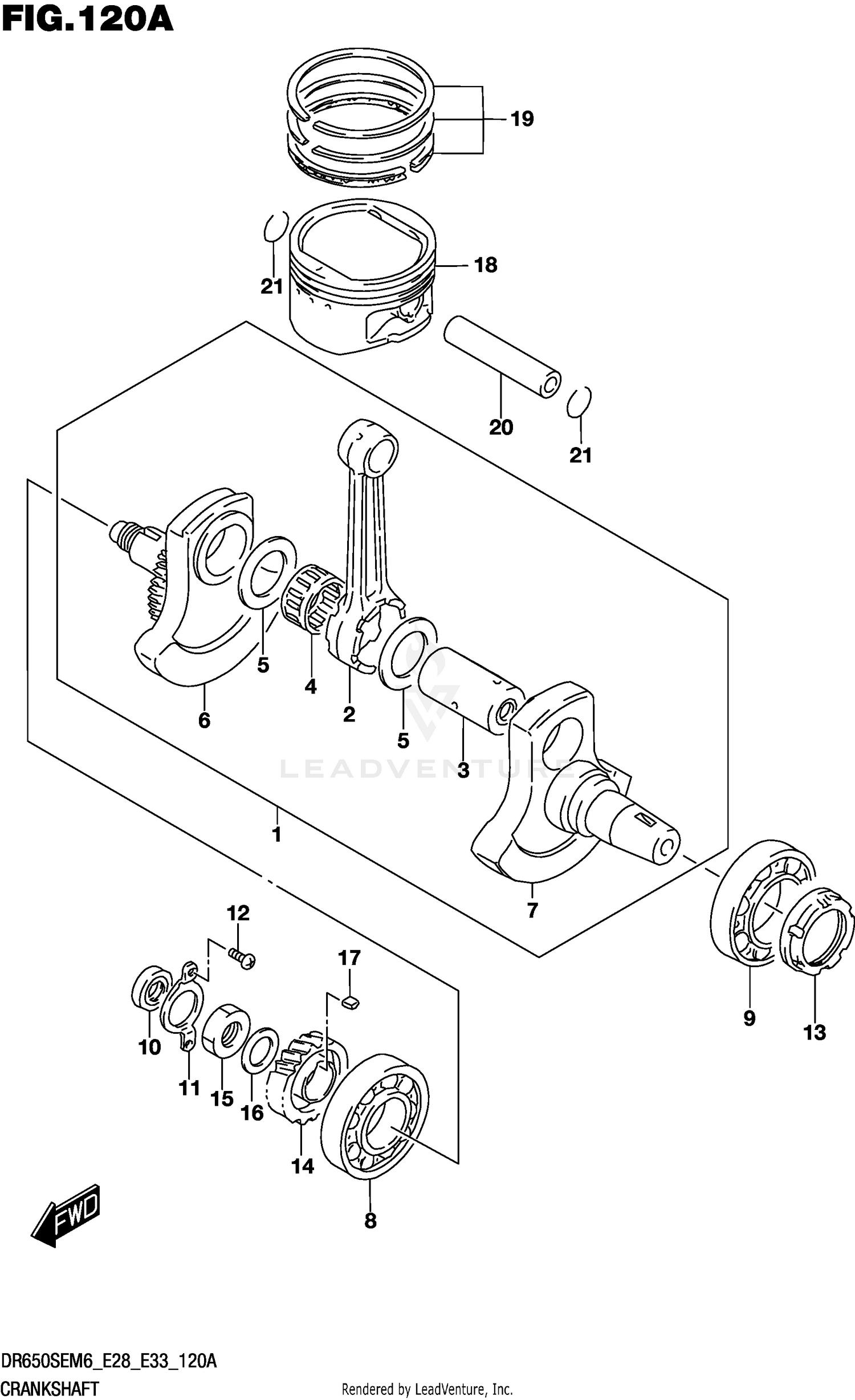

CRANKSHAFT
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 12000-32830 | CRANKSHAFT SET Price: $637.05 |
| 8 | 09262-40008 | BEARING (40X80X18) Price: $84.34 |
| 9 | 09262-45011 | BEARING (45X85X19) Price: $92.42 |
| 10 | 09282-16002 | OIL SEAL (16X30X6) Price: $11.86 |
| 11 | 12548-37400 | PLATE, RH Price: $8.09 |
| 12 | 02112-0508A | SCREW Price: $1.73 |
| 13 | 12664-04F00 | NUT,CRANKSHAFT BRG LH Price: $52.26 |
| 14 | 21111-32E00 | GEAR,PRIMARY DRIVE (NT:28) Price: $82.77 |
| 15 | 09140-20013 | NUT Price: $5.26 |
| 16 | 09164-20003 | WASHER Price: $4.04 |
| 17 | 09420-05007 | KEY Price: $4.83 |
| 18 | 12111-32E00-0F0 | PISTON Price: $122.39 |
| 19 | 12140-32E10 | RING SET,PISTON Price: $64.32 |
| 20 | 12151-14A01 | PIN,PISTON Price: $29.73 |
