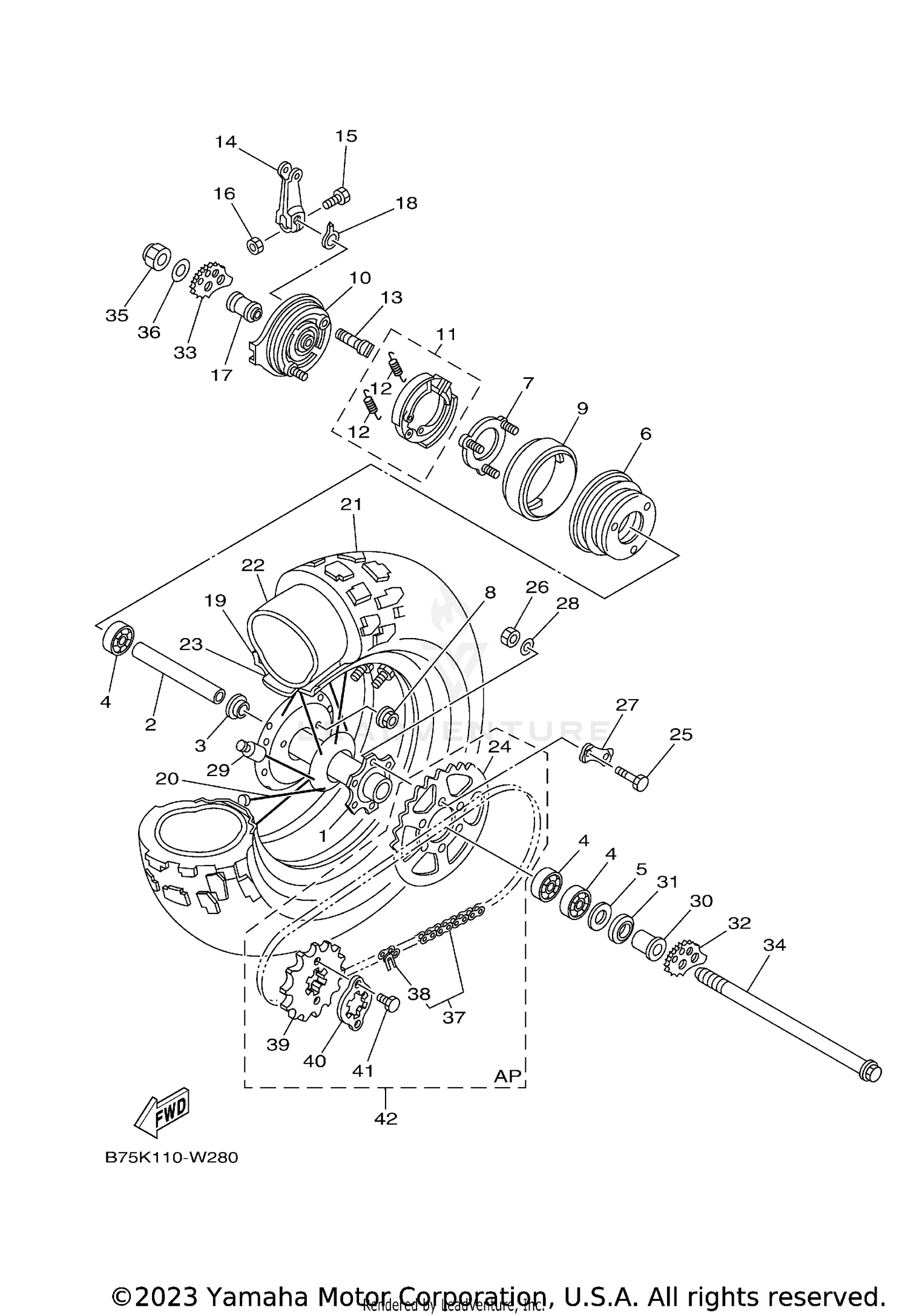

| Ref | Part Number | Description |
|---|
| 1 |
2JX-25311-00-00 |
HUB, REAR Price: $332.99 |
| 2 |
90560-17305-00 |
SPACER Price: $20.99 |
| 3 |
146-25315-00-00 |
FLANGE, SPACER This part replaces 152-25115-00-00. Price: $8.49 |
| 4 |
93306-20348-00 |
BEARING Price: $44.99 |
| 5 |
93102-25311-00 |
OIL SEAL (FPJ 25-44-8 TS) Price: $16.49 |
| 7 |
54G-25185-00-00 |
RING 1 Price: $28.99 |
| 8 |
90179-08410-00 |
NUT Price: $6.49 |
| 9 |
2JX-25336-00-00 |
RING 2 Price: $69.99 |
| 11 |
4KN-W253E-11-00 |
BRAKESHOE SET-2PCS Price: $27.99 |
| 12 |
90506-15260-00 |
SPRING, TENSION Price: $9.49 |
| 13 |
4GL-25351-00-00 |
CAMSHAFT This part replaces 3Y6-25351-00-00. Price: $74.99 |
| 14 |
2N3-25155-00-00 |
LEVER, CAMSHAFT 1 Price: $31.99 |
| 15 |
90101-06278-00 |
BOLT Price: $2.60 |
| 16 |
95317-06600-00 |
NUT This part replaces 95307-06600-00. Price: $3.85 |
| 17 |
90387-171T1-00 |
COLLAR Price: $25.99 |
| 18 |
2JX-2533A-00-00 |
PLATE, INDICATOR Price: $8.49 |
| 19 |
94445-14605-00 |
RIM (MT4.50-14 M/C) Price: $295.99 |
| 20 |
2JX-25304-21-00 |
SPOKE SET, REAR Price: $87.99 |
| 24 |
15A-25450-20-00 |
SPROCKET, DRIVEN (50T) Price: $42.99 |
| 25 |
90109-08618-00 |
BOLT Price: $10.49 |
| 26 |
90185-08089-00 |
NUT, SELF-LOCKING Price: $10.49 |
| 27 |
90215-08160-00 |
WASHER, LOCK Price: $10.49 |
| 28 |
90201-086P8-00 |
WASHER, PLATE Price: $5.49 |
| 30 |
90387-171T2-00 |
COLLAR Price: $45.99 |
| 31 |
36R-25367-00-00 |
COVER, HUB DUST Price: $9.49 |
| 32 |
3Y1-25388-01-00 |
PULLER, CHAIN 1 Price: $28.99 |
| 33 |
3Y1-25389-00-00 |
PULLER, CHAIN 2 Price: $33.99 |
| 34 |
2JX-25381-11-00 |
AXLE, WHEEL Price: $99.99 |
| 35 |
90185-16002-00 |
NUT, SELF-LOCKING Price: $18.49 |
| 36 |
90201-164H4-00 |
WASHER, PLATE Price: $10.49 |
| 37 |
9Y582-51121-00 |
CHAIN Price: $124.99 |
| 38 |
94682-51001-00 |
JOINT, CHAIN Price: $7.99 |
| 39 |
93823-14149-00 |
SPROCKET, DRIVE (14T) Price: $18.49 |
| 40 |
2JX-17456-00-00 |
HOLDER, SPROCKET Price: $24.99 |
| 41 |
97027-05010-00 |
BOLT, HEXAGON This part replaces 97007-05010-00. Price: $8.49 |
