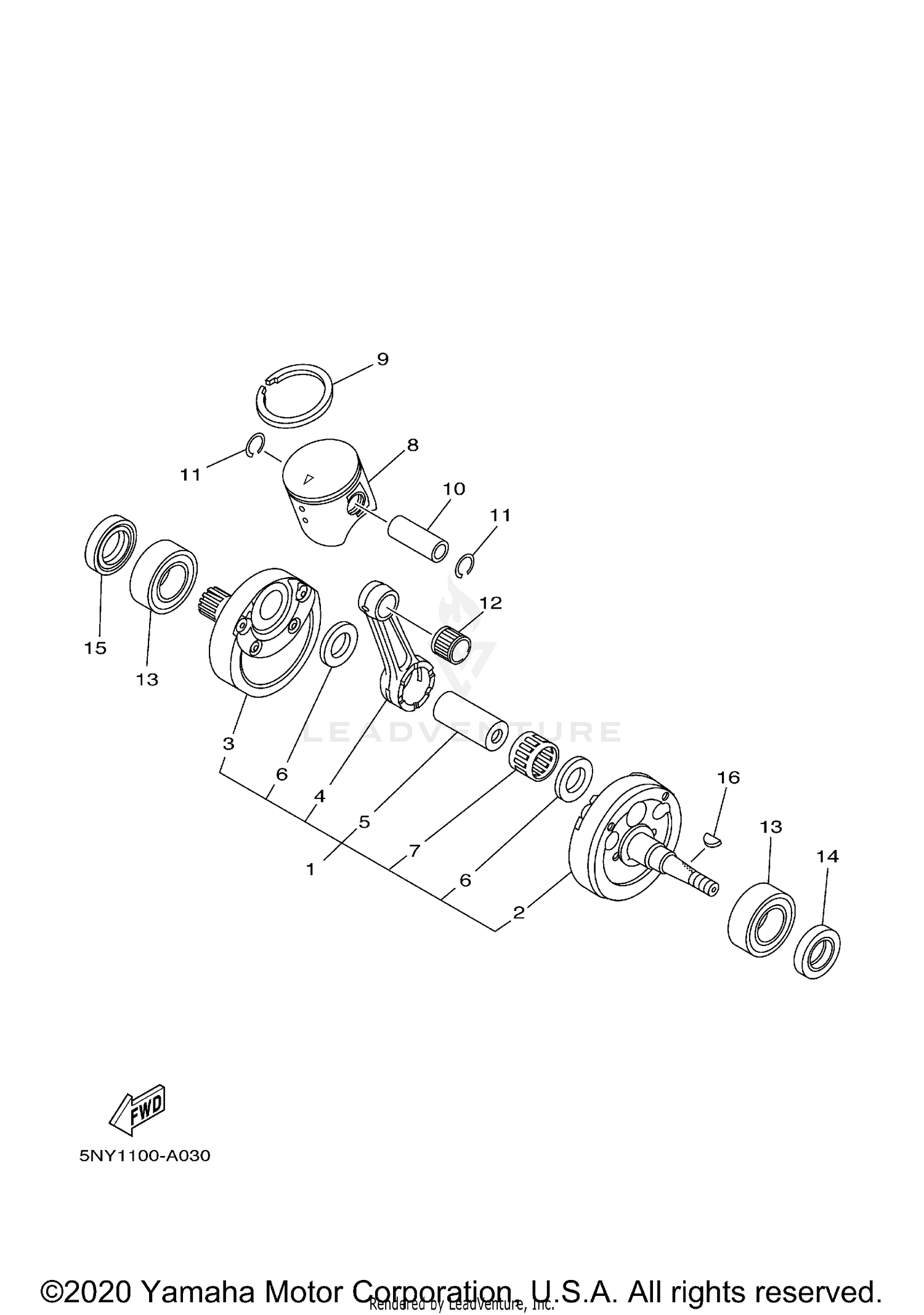

CRANKSHAFT PISTON
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 1C3-11400-20-00 | CRANKSHAFT ASSY Price: $563.99 |
| 2 | 1C3-11410-10-00 | CRANKSHAFT Price: $175.99 |
| 3 | 1C3-11420-20-00 | CRANKSHAFT Price: $164.99 |
| 4 | 1C3-11651-00-00 | ROD, CONNECTING Price: $109.99 |
| 5 | 3JD-11681-10-00 | PIN, CRANK 1 Price: $74.99 |
| 6 | 90209-22326-00 | WASHER Price: $36.99 |
| 7 | 93310-52238-00 | BEARING Price: $80.99 |
| 9 | 5NY-11611-00-00 | RING, PISTON Price: $28.99 |
| 10 | 1C3-11633-00-00 | PIN, PISTON Price: $39.99 |
| 11 | 93450-16068-00 | CIRCLIP Price: $8.49 |
| 12 | 93310-21510-00 | BEARING Price: $36.99 |
| 14 | 93102-20485-00 | OIL SEAL Price: $23.99 |
| 15 | 93102-22419-00 | OIL SEAL Price: $13.49 |
