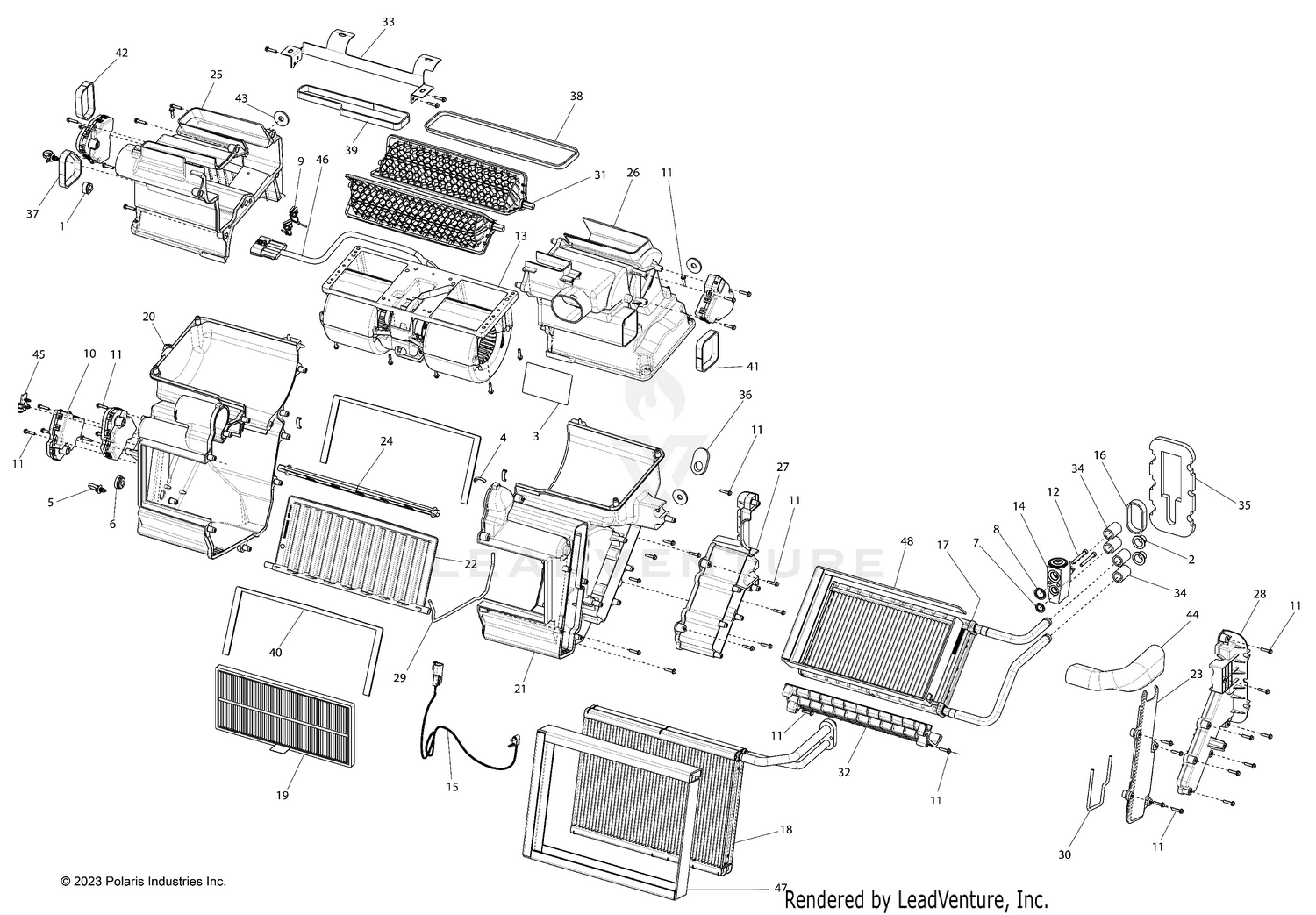

| Ref | Part Number | Description |
|---|
| 1 |
------- |
GROMMET - WIRE HARNESS |
| 2 |
------- |
CAP NO W-8 PLASTIC PROTECT |
| 3 |
------- |
DECAL, CAT SERIAL |
| 4 |
------- |
CLIP, SPRING |
| 5 |
------- |
TIE, CHRISTMAS TREE WIRE |
| 6 |
------- |
GROMMET, 3/4" SPLIT |
| 7 |
------- |
WASHER, 1/2" SLIM LINE |
| 8 |
------- |
WASHER, 5/8" SLIM LINE |
| 9 |
------- |
TIE, CABLE CLIP INST |
| 10 |
------- |
ACTUATOR, 12V 126 DEG CCW |
| 11 |
------- |
SCREW - #8-16X19.1MM TRI-LOBE |
| 12 |
------- |
SCREW - M5-0.8X45.0MM SHCS |
| 13 |
------- |
BLOWER ASSEMBLY - 12V HIGH PERF |
| 14 |
------- |
TXV, 2.0 TON SLSW PARALLEL |
| 15 |
------- |
SENSOR, EVAPORATOR TEMP |
| 16 |
------- |
GASKET, BULK STRIP - MANIFOLD PERIMETER |
| 17 |
------- |
HEATER COIL, TUBE AND FIN - ALUMINUM |
| 18 |
------- |
EVAPORATOR COIL, TUBE AND FIN - ALUMINUM |
| 19 |
------- |
FILTER - RECIRC/FRESH AIR |
| 20 |
------- |
PLASTIC, INJECTION MOLDED - CASE, DRIVERS SIDE BLEND |
| 21 |
------- |
PLASTIC, INJECTION MOLDED - CASE, PASSENGER SIDE BLEND |
| 22 |
------- |
PLASTIC, INJECTION MOLDED - DOOR, BLEND (FLAG) |
| 23 |
------- |
PLASTIC, INJECTION MOLDED - COVER, EVAPORATOR |
| 24 |
------- |
PLASTIC, INJECTION MOLDED - DOOR, FRESH AIR |
| 25 |
------- |
PLASTIC, INJECTION MOLDED - CASE, DRIVERS SIDE MODE |
| 26 |
------- |
PLASTIC, INJECTION MOLDED - CASE, PASSENGER SIDE MODE |
| 27 |
------- |
PLASTIC, INJECTION MOLDED - COVER, INNER TUBE |
| 28 |
------- |
PLASTIC, INJECTION MOLDED - COVER, TUBE |
| 29 |
------- |
RUBBER - 5MM DIA CORD-STOCK |
| 30 |
------- |
RUBBER - 5MM DIA CORD-STOCK |
| 31 |
------- |
PLASTIC, INJECTION MOLDED - BARREL DOOR |
| 32 |
------- |
PLASTIC, INJECTION MOLDED - BRIDGE, HEATER SUPPORT |
| 33 |
------- |
SHEET METAL COMPONENT - MOUNTING BRACKET, UNIT |
| 34 |
------- |
GASKET, DIE CUT - TUBE INSULATION |
| 35 |
------- |
GASKET, DIE CUT - TXV CLOSEOUT |
| 36 |
------- |
GASKET, DIE CUT - DRAIN TUBE |
| 37 |
------- |
GASKET, BULK STRIP - FLOOR, DRIVER SIDE |
| 38 |
------- |
GASKET, BULK STRIP - DEFROST |
| 39 |
------- |
GASKET, BULK STRIP - PANEL |
| 40 |
------- |
GASKET, DIE CUT - BLEND FLOOR |
| 41 |
------- |
GASKET, BULK STRIP - FLOOR, PASSENGER SIDE |
| 42 |
------- |
GASKET, BULK STRIP - REAR DUCT |
| 43 |
------- |
GASKET, DIE CUT - MOUNTING STUD |
| 44 |
------- |
GASKET, DIE CUT - EVAPORATOR, TUBE INSULATION |
| 45 |
------- |
CLIP - ATTACHMENT, RECEPTACLES FIR TREE STUD MOUNT DT AND DTM SERIES |
| 46 |
------- |
WIRE ASSEMBLY - BLOWER HARNESS |
| 47 |
------- |
GASKET, DIE CUT - EVAPORATOR |
