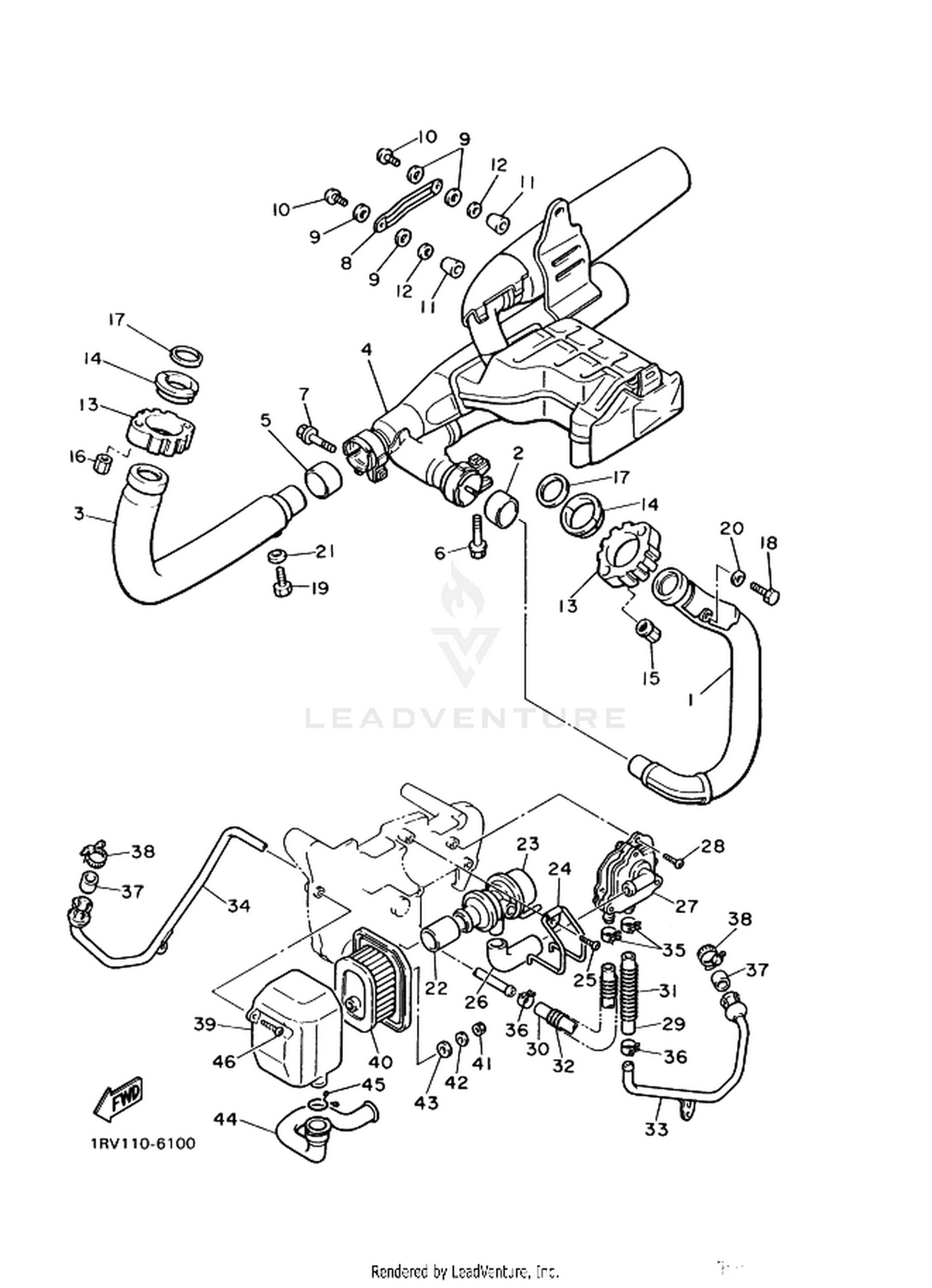

| Ref | Part Number | Description |
|---|
| 1 |
42X-14611-00 |
PIPE, exhaust 1 Price: Call Us |
| 2 |
3EG-14714-00 |
GASKET, MUFFLER Price: Call Us |
| 3 |
1RV-14621-00 |
PIPE, exhaust 2 Price: Call Us |
| 4 |
1RM-14711-01 |
MUFFLER 1 Price: Call Us |
| 5 |
3YF-14755-00 |
GASKET, SILENCER Price: Call Us |
| 6 |
95027-08045 |
BOLT, FLANGE Price: Call Us |
| 7 |
95027-08045 |
BOLT, FLANGE Price: Call Us |
| 8 |
42X-14748-01 |
PROTECTOR, MUFFLER 4 Price: Call Us |
| 9 |
4BD-14766-00 |
WASHER, PROTECTOR Price: Call Us |
| 10 |
98904-06010 |
SCREW, BIND Price: Call Us |
| 11 |
42X-1479H-00 |
COVER, 1 Price: Call Us |
| 12 |
92907-06200 |
WASHER Price: Call Us |
| 13 |
42X-14612-00 |
NUT, ring Price: Call Us |
| 14 |
42X-1468A-00 |
RING, SILENCER 1 Price: Call Us |
| 15 |
90179-08210 |
NUT Price: Call Us |
| 16 |
90179-08673 |
NUT Price: Call Us |
| 17 |
3EG-14613-00 |
GASKET, EXHAUST PIPE Price: Call Us |
| 20 |
92990-06600 |
WASHER, PLATE Price: Call Us |
| 21 |
92990-06600 |
WASHER, PLATE Price: Call Us |
| 22 |
42H-14882-00 |
HOSE, bend 2 Price: Call Us |
| 23 |
1RV-14840-00 |
AIR CUT VALVE ASSY Price: Call Us |
| 24 |
90462-20188 |
CLAMP Price: Call Us |
| 25 |
97707-60114 |
SCREW, tapping Price: Call Us |
| 26 |
42H-14883-00 |
HOSE, bend 3 Price: Call Us |
| 27 |
42H-14808-00 |
REED VALVE ASSY Price: Call Us |
| 28 |
97707-60114 |
SCREW, tapping Price: Call Us |
| 29 |
42H-14884-00 |
HOSE, bend 4 Price: Call Us |
| 30 |
42H-14885-00 |
HOSE, bend 5 Price: Call Us |
| 31 |
90501-101J3 |
SPRING, compression Price: Call Us |
| 32 |
90501-101J4 |
SPRING, COMPRESSION Price: Call Us |
| 33 |
42H-14871-01 |
PIPE 1 Price: Call Us |
| 34 |
42H-14872-02 |
PIPE 2 Price: Call Us |
| 35 |
90468-08104 |
CLIP Price: Call Us |
| 36 |
90467-16098 |
CLIP Price: Call Us |
| 37 |
42H-14714-10 |
GASKET, MUFFLER Price: Call Us |
| 38 |
90460-15227 |
CLAMP, hose Price: Call Us |
| 39 |
42H-14857-00 |
CASE, air cleaner Price: Call Us |
| 40 |
42H-14858-00 |
CAP, case Price: Call Us |
| 41 |
95307-05600 |
NUT Price: Call Us |
| 42 |
92907-05200 |
WASHER Price: Call Us |
| 43 |
90202-05057 |
WASHER, PLATE Price: Call Us |
| 44 |
1TA-14881-00 |
HOSE, BEND 1 Price: Call Us |
| 45 |
90467-22080 |
CLIP Price: Call Us |
