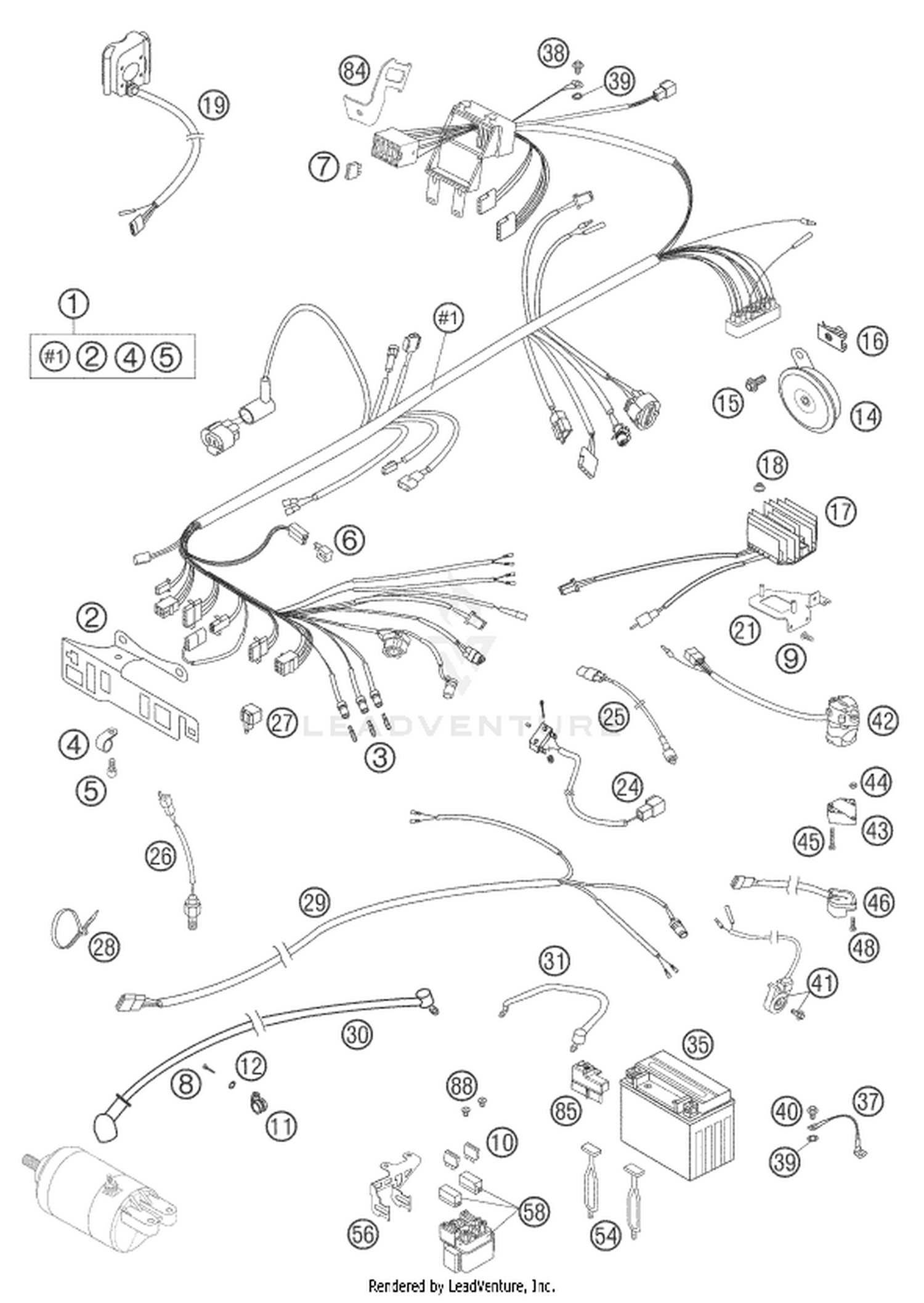

| Ref | Part Number | Description |
|---|
| 1 |
58611075100 |
WIRING HARNESS 625 SMC 05 Price: Call Us |
| 2 |
59011083000 |
SUPPORT BRACKET BLACK 2001 Price: Call Us |
| 3 |
49111425200 |
BULB 12V 2,3W (W2X4,6D) This part replaces 49111425000. Price: Call Us |
| 4 |
57013070100 |
PVC-CLAMP 7,9 MM HEYCO 3355 Price: Call Us |
| 5 |
0912050083 |
SHCS DIN 912 M5x8 Price: Call Us |
| 6 |
58411096100 |
DIODE S3H-15 97 Price: Call Us |
| 7 |
58011109110 |
Plug-in fuse, big 10A Price: Call Us |
| 8 |
0981480133 |
SHEET MET.SCR.DIN7981- 4,8X13 Not Available Price: |
| 9 |
0081050121 |
EJOT PT screw K50x12 This part replaces 0016050121. Price: Call Us |
| 10 |
58011109120 |
Plug-in fuse, big 20A Price: Call Us |
| 11 |
45001070000 |
BRAKE CABLE CLAMP RSGU 9/12 Price: Call Us |
| 12 |
0797050003 |
TOOTH LOCK WASH. DIN6797-J 5,3 Not Available Price: |
| 14 |
50311060100 |
DC HORN L.E.B. 03 Price: Call Us |
| 15 |
0024060156 |
HH collar screw M6x15 TX30 This part replaces 0014060153. Price: Call Us |
| 17 |
58411034100 |
VOLT.REGULATOR-RECTIFIER 12V Price: Call Us |
| 18 |
56509064100 |
Self locking nut M6 - 10 Price: Call Us |
| 19 |
59011074200 |
START-STOP TIP SWITCH 2001 Price: Call Us |
| 21 |
58611055200 |
BRACKET REGULATOR 06 This part replaces 58611055000. Price: Call Us |
| 24 |
58411050000 |
BRAKE LIGHT SWITCH FRONT SM 03 Price: Call Us |
| 26 |
50311051100 |
BRAKE LIGHT SWITCH REAR '98 Price: Call Us |
| 27 |
44611207200 |
FLASHER UNIT 97 Price: Call Us |
| 28 |
44011076140 |
CABLE TIE 140/2,5MM BLACK This part replaces 44011076100. Price: Call Us |
| 28 |
44011076200 |
CABLE TIE 200/3,6MM BLACK Price: Call Us |
| 28 |
44011076305 |
CABLE TIE 300/4,8MM BLACK Price: Call Us |
| 29 |
58611076000 |
WIRING HARNESS REAR 05 Price: Call Us |
| 30 |
58611059000 |
STARTERCABLE L=810MM 05 Price: Call Us |
| 31 |
58611059050 |
BATTERY CABLE L=140MM 05 Price: Call Us |
| 35 |
58411053100 |
BATTERY 12V 8,6AH 03 Price: Call Us |
| 37 |
58611097000 |
GROUND CABLE L=80MM 05 Price: Call Us |
| 38 |
0025060106 |
HH collar screw M6x10 TX30 This part replaces 0015060103. Price: Call Us |
| 39 |
58411098100 |
CONTACT WASHER M6 VSV-K6 Price: Call Us |
| 40 |
0025060126 |
HH collar screw M6x12 TX30 This part replaces 0015060123. Price: Call Us |
| 41 |
58411045000 |
SIDE STAND SWITCH CPL. '97 Price: Call Us |
| 42 |
50311070100 |
H.LIGHT SWITCH CEV EGS AUS.'98 Price: Call Us |
| 43 |
13011070060 |
ADAPTER FOR FLASHER SWITCH '98 Price: Call Us |
| 44 |
0934040003 |
HEXAGON NUT DIN0934-M 4 Price: Call Us |
| 45 |
0084040223 |
CYL.HEAD SCREW DIN0084-M 4X22A Price: Call Us |
| 46 |
50311029000 |
FLASHER SWITCH CEV '98 Price: Call Us |
| 48 |
0985040163 |
FLAT HEAD SCREW DIN7985-M 4X16 Price: Call Us |
| 54 |
50303018000 |
RUBBER L=145MM Price: Call Us |
| 56 |
58611058050 |
BRACKET STARTER RELAY 05 Not Available Price: |
| 58 |
58211058000 |
Starter reley 12V 99 Price: Call Us |
| 73 |
0985060003 |
Self lock. nut DIN985-M6-A2 Price: Call Us |
| 84 |
58611087050 |
BRACKET FUSE BOX 05 Not Available Price: |
| 85 |
58611059060 |
TERMINAL POST COVER 05 Not Available Price: |
