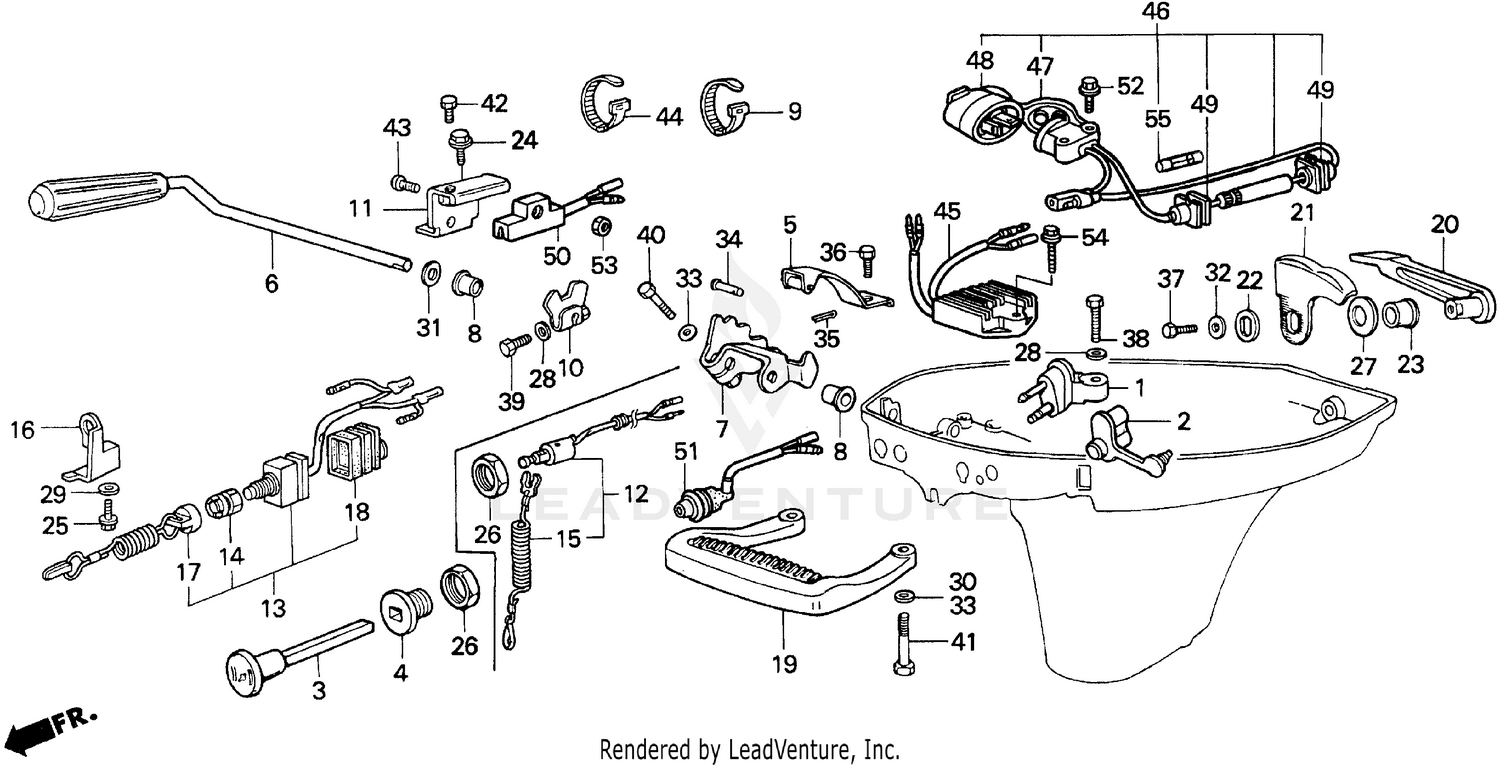

| Ref | Part Number | Description |
|---|
| 1 |
17710-881-000ZC |
CONNECTOR, FUEL *B107* (SENIOR BLUE) (NOT AVAILABLE) Price: Call Us |
| 2 |
17711-881-000 |
CAP, FUEL JOINT Price: $3.34 |
| 3 |
17951-921-030 |
KNOB, CHOKE Price: $14.96 |
| 4 |
17953-921-010 |
GUIDE, CHOKE KNOB Price: $7.00 |
| 5 |
24210-921-000 |
SPRING, CLICK Price: $12.40 |
| 6 |
24610-881-010 |
SEE PART DETAILS - PRI; SHAFT, SHIFT Price: $50.04 |
| 7 |
24612-881-020 |
ARM, GEARSHIFT Price: Call Us |
| 8 |
24621-921-010 |
BUSH, SHAFT Price: $6.84 |
| 10 |
35110-881-000 |
PLATE, SWITCH SHIELD Price: $31.50 |
| 11 |
35120-881-000 |
PLATE, SWITCH SETTING Price: $28.44 |
| 19 |
50281-921-000ZC |
HANDLE, CARRYING *B107* (SENIOR BLUE) Price: Call Us |
| 20 |
63201-935-000ZC |
LEVER, COVER LOCK *B107* (SENIOR BLUE) (NOT AVAILABLE) Price: Call Us |
| 21 |
63202-881-000 |
HOOK, COVER LOCK Price: $19.48 |
| 22 |
63203-935-000 |
WASHER, COVER LOCK Price: $3.94 |
| 23 |
63205-920-000 |
BUSH, COVER LOCK Price: $6.20 |
| 24 |
90016-920-000 |
BOLT, FLANGE (6X12) Price: $2.46 |
| 26 |
90302-921-000 |
NUT, HEX. (16MM) DUAL QTY = (2) (SINGLE) Price: $5.62 |
| 27 |
90455-881-000 |
SEE PART DETAILS - PRI; SPRING, LEVER Price: $4.46 |
| 28 |
90504-921-010 |
WASHER, PLAIN (6MM) Use from Frame SN 4800713. Price: $1.74 |
| 31 |
90511-921-000 |
WASHER, PLAIN (10MM) Price: $1.18 |
| 32 |
90512-921-010 |
SEE PART DETAILS - PRI; WASHER (6MM) Price: $1.46 |
| 33 |
90518-921-000 |
WASHER, PLAIN (8MM) Use from Frame SN 4800713. Price: $1.64 |
| 34 |
90754-921-010 |
PIN (5X17) Price: $11.94 |
| 35 |
90756-921-000 |
PIN, COTTER (1.6MM) Price: $1.98 |
| 36 |
92101-06012-0B |
SEE PART DETAILS - PRI; BOLT, HEX. (6X12) (Honda Code 2959526). Price: $1.46 |
| 37 |
92101-06016-0B |
SEE PART DETAILS - PRI; BOLT, HEX. (6X16) Price: $1.62 |
| 38 |
92101-06020-4J |
SEE PART DETAILS - PRI; BOLT, HEX. (6X20) Price: $1.74 |
| 39 |
92101-06028-4J |
SEE PART DETAILS - PRI; BOLT, HEX. (6X28) Price: $5.92 |
| 40 |
92101-08028-4J |
BOLT, HEX. (8X28) Price: $4.24 |
| 41 |
92000-08032-4J |
BOLT, HEX. (8X32) (NOT AVAILABLE) Price: Call Us |
| 43 |
93500-05020-4J |
SCREW, PAN (5X20) Price: $1.18 |
