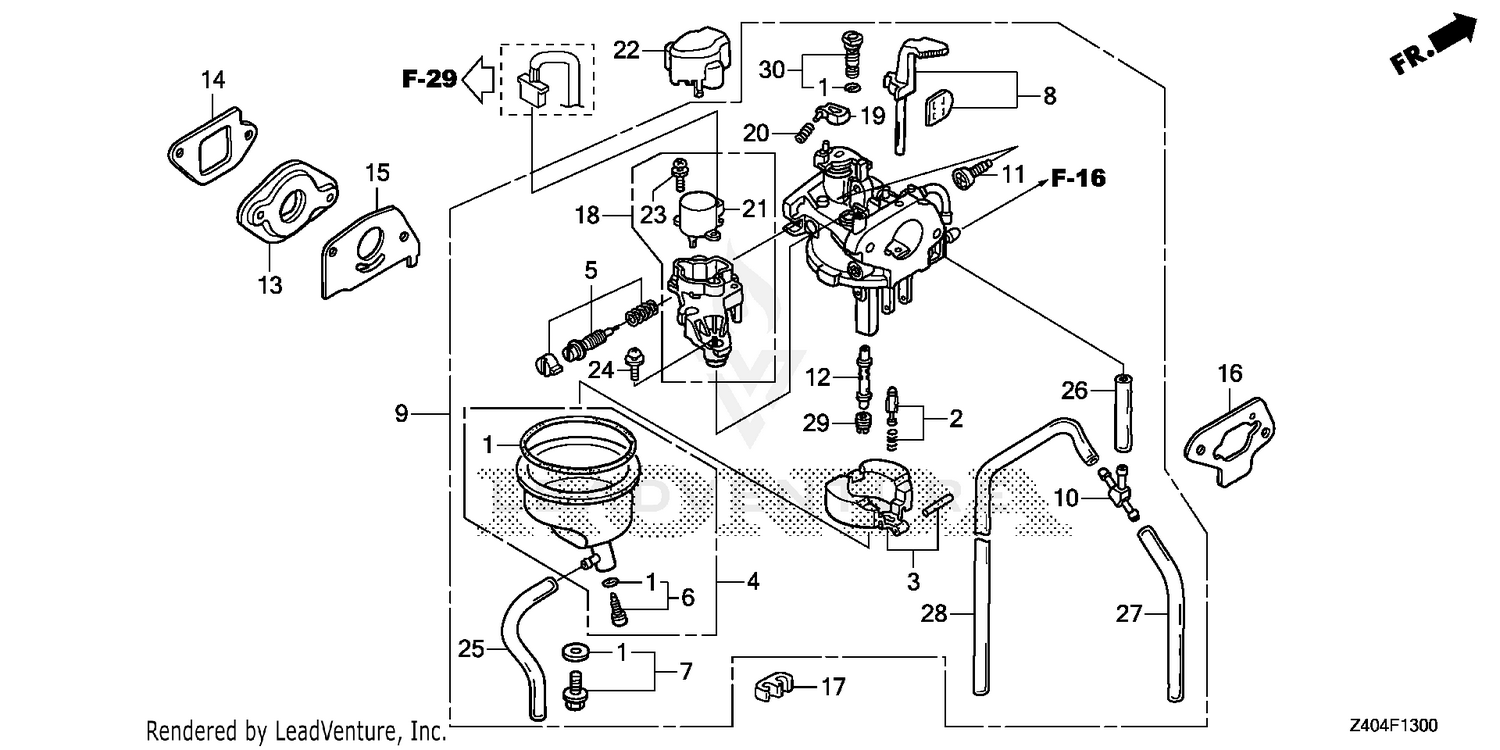

| Ref | Part Number | Description |
|---|
| 1 |
16010-ZM7-D01 |
GASKET SET (CARBURETOR NO.) Price: $17.20 |
| 2 |
16011-ZE0-005 |
VALVE SET, FLOAT (CARBURETOR NO.) (SEAT NOT INCLUDED) Price: $29.34 |
| 3 |
16013-ZDJ-801 |
FLOAT SET Price: $6.08 |
| 4 |
16015-ZM7-003 |
CHAMBER SET, FLOAT (CARBURETOR NO.) Price: $60.12 |
| 5 |
16016-ZH7-W01 |
SEE PART DETAILS - PRI; SCREW SET (Honda Code 4219879). (CARBURETOR NO.) Price: $21.02 |
| 6 |
16024-ZB9-005 |
SCREW SET, DRAIN (CARBURETOR NO.) Price: $9.94 |
| 7 |
16028-ZW6-611 |
SEE PART DETAILS - PRI; SCREW SET This part replaces 16028-ZG0-811. Price: $14.88 |
| 8 |
16044-ZM7-D01 |
CHOKE SET Price: $38.84 |
| 9 |
16100-ZM7-D28 |
SEE PART DETAILS - PRI; CARBURETOR ASSY. (BF30C G) Price: $109.61 |
| 10 |
16112-ZM7-D01 |
JOINT, AIR VENT TUBE (CARBURETOR NO.) Price: $11.30 |
| 11 |
16124-ZE0-005 |
SCREW, THROTTLE STOP (Honda Code 1441559). Price: $17.88 |
| 12 |
16166-ZM7-D02 |
SEE PART DETAILS - PRI; NOZZLE, MAIN (CARBURETOR NO.) Price: $23.60 |
| 13 |
16211-ZM7-D10 |
INSULATOR, CARBURETOR Price: $9.74 |
| 14 |
16212-ZM7-D00 |
GASKET, INSULATOR (ENGINE NO.) Price: $2.36 |
| 15 |
16221-ZG0-801 |
SEE PART DETAILS - PRI; GASKET, CARBURETOR Price: $2.66 |
| 16 |
17274-ZT3-000 |
GASKET, AIR IN. JOINT Price: $2.94 |
| 17 |
32765-PE0-000 |
CLAMP D, IGNITION WIRE Price: $7.76 |
| 18 |
36160-ZM7-D01 |
MOTOR ASSY., THROTTLE CONTROL Price: $112.68 |
| 19 |
36161-ZM7-D21 |
LEVER, LINK (CARBURETOR NO.) Price: $13.70 |
| 20 |
36162-ZM7-D21 |
SPRING, COMPRESSION COIL (CARBURETOR NO.) Price: $5.78 |
| 21 |
36165-ZL0-D31 |
MOTOR, THROTTLE CONTROL (CARBURETOR NO.) Price: $105.46 |
| 22 |
36168-Z39-C90 |
COVER, THROTTLE MOTOR Price: $1.02 |
| 23 |
90003-ZL0-D30 |
SCREW-WASHER (3X8) Price: $2.36 |
| 24 |
93893-04010-08 |
SEE PART DETAILS - PRI; SCREW-WASHER (4X10) Price: $1.68 |
| 25 |
95003-05008-60M |
BULK HOSE, VINYL (3.5X6.5X8000) (9500(95003-05001-60M) (CARBURETOR NO.) Price: $28.12 |
| 26 |
95003-07008-60M |
BULK HOSE, VINYL (4X7X8000) (95003-07(95003-07001-60M) (CARBURETOR NO.) Price: $35.60 |
| 27 |
95003-07008-60M |
BULK HOSE, VINYL (4X7X8000) (95003-07(95003-07001-60M) (CARBURETOR NO.) Price: $35.60 |
| 28 |
95003-07008-60M |
BULK HOSE, VINYL (4X7X8000) (95003-07(95003-07001-60M) (CARBURETOR NO.) Price: $35.60 |
| 29 |
99101-ZG0-0580 |
JET, MAIN (#58) Use from Engine SN BF22B D. Price: $8.74 |
| 30 |
99204-ZE0-0350 |
JET SET, PILOT (#35) (Honda Code 1441609). Price: $23.18 |
