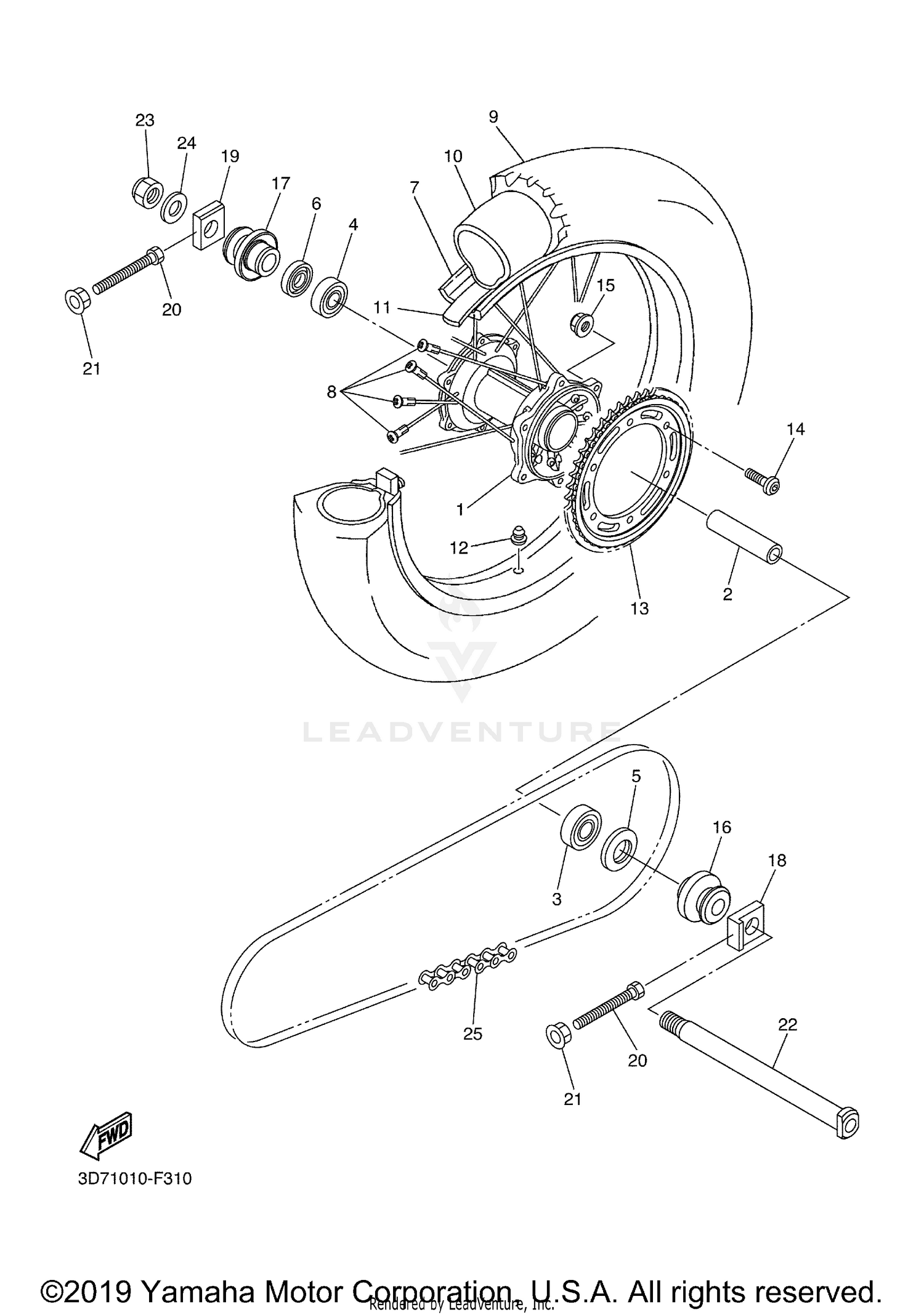

| Ref | Part Number | Description |
|---|
| 1 |
3D7-25311-00-00 |
HUB, REAR Price: $340.99 |
| 2 |
5ET-25317-00-00 |
SPACER, BEARING Price: $53.99 |
| 3 |
93306-27206-00 |
BEARING This part replaces 93306-27205-00. Price: $76.99 |
| 4 |
93306-07202-00 |
BEARING Price: $42.99 |
| 5 |
93106-30001-00 |
OIL SEAL Price: $13.49 |
| 6 |
93106-30045-00 |
OIL SEAL Price: $11.49 |
| 7 |
94421-18016-00 |
RIM (2.15-18) Price: $446.99 |
| 8 |
3D7-25304-00-00 |
SPOKE SET, REAR Price: $101.99 |
| 12 |
90480-10068-00 |
GROMMET This part replaces 90480-08608-00. Price: $9.49 |
| 13 |
32C-25443-00-00 |
SPROCKET, REAR WHEEL (43T) Price: $49.99 |
| 14 |
90111-08030-00 |
BOLT, HEX. SOCKET BUTTON Price: $9.49 |
| 15 |
95602-08200-00 |
NUT, SELF-LOCKING Price: $3.20 |
| 16 |
3D7-2530S-01-00 |
COLLAR ASSY This part replaces 3D7-2530S-00-00. Price: $64.99 |
| 17 |
3D7-2531S-01-00 |
COLLAR ASSY This part replaces 3D7-2531S-00-00. Price: $61.99 |
| 18 |
1C3-25388-H0-00 |
PULLER, CHAIN 1 Price: $24.99 |
| 19 |
1C3-25389-H0-00 |
PULLER, CHAIN 2 Price: $33.99 |
| 20 |
90101-08006-00 |
BOLT Price: $9.49 |
| 21 |
90179-08019-00 |
NUT Price: $8.49 |
| 22 |
3D7-25381-00-00 |
AXLE, WHEEL Price: $101.99 |
| 23 |
90185-20002-00 |
NUT, SELF-LOCKING Price: $31.99 |
| 24 |
90201-20020-00 |
WASHER, PLATE Price: $10.49 |
