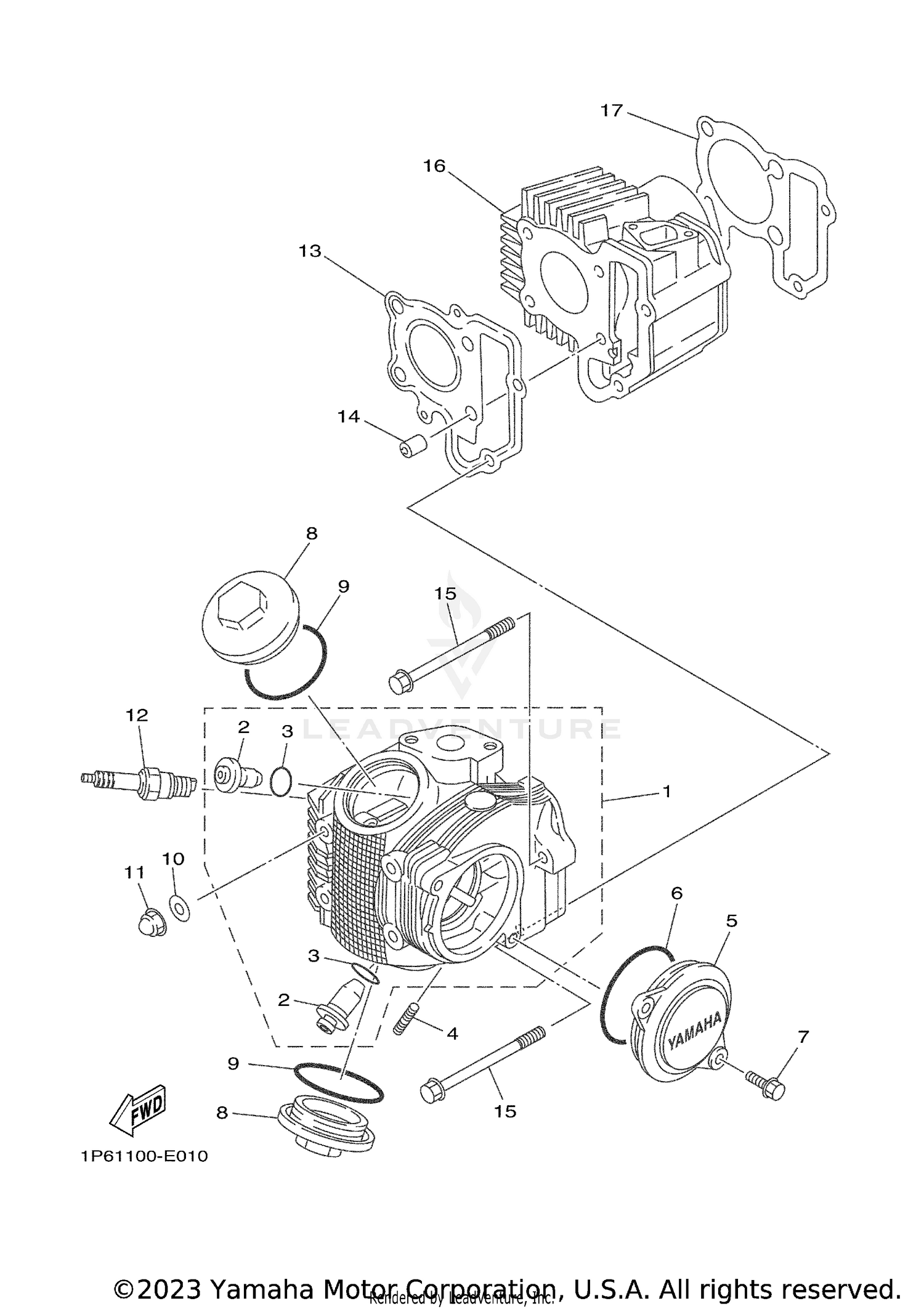

| Ref | Part Number | Description |
|---|
| 1 |
1P6-W1102-01-00 |
HEAD CYLINDER ASSY Price: $504.99 |
| 2 |
4GL-11134-10-00 |
GUIDE, VALVE 2 Price: $167.99 |
| 3 |
93210-09418-00 |
O-RING This part replaces 93210-09802-00. Price: $6.49 |
| 4 |
1P6-14651-00-00 |
BOLT Price: $7.49 |
| 5 |
1P6-E1185-00-00 |
COVER, CYLINDER HEAD SIDE 3 Price: $37.99 |
| 6 |
93210-63556-00 |
O-RING This part replaces 93210-628B6-00. Price: $6.49 |
| 7 |
90105-06696-00 |
BOLT, FLANGE This part replaces 95027-06016-00. Price: $10.49 |
| 8 |
22F-11186-10-00 |
COVER, CYLINDER HEAD SIDE 2 This part replaces 1P6-E1186-00-00. Price: $22.99 |
| 9 |
93210-44704-00 |
O-RING This part replaces 93210-44889-00. Price: $8.49 |
| 10 |
90201-080L7-00 |
WASHER, PLATE This part replaces 90201-088C3-00. Price: $4.05 |
| 11 |
90176-08026-00 |
NUT, CROWN Price: $16.49 |
| 12 |
CR7-HSA00-00-00 |
PLUG, SPARK (NGK CR7HSA) Price: $4.40 |
| 13 |
1P6-E1181-00-00 |
GASKET, CYLINDER HEAD 1 Price: $28.99 |
| 14 |
99530-10114-00 |
PIN, DOWEL Price: $2.65 |
| 15 |
95027-06085-00 |
BOLT, FLANGE Price: $10.49 |
| 16 |
1P6-E1311-10-00 |
CYLINDER 1 Price: $269.99 |
