Home / POWERSPORTS / SNOWMOBILE / 2018 / 2018 BEARCAT XT BLUE INTERNATIONAL [S2018BCCWTNAL] / TRACK SUSPENSION 1 [106349]

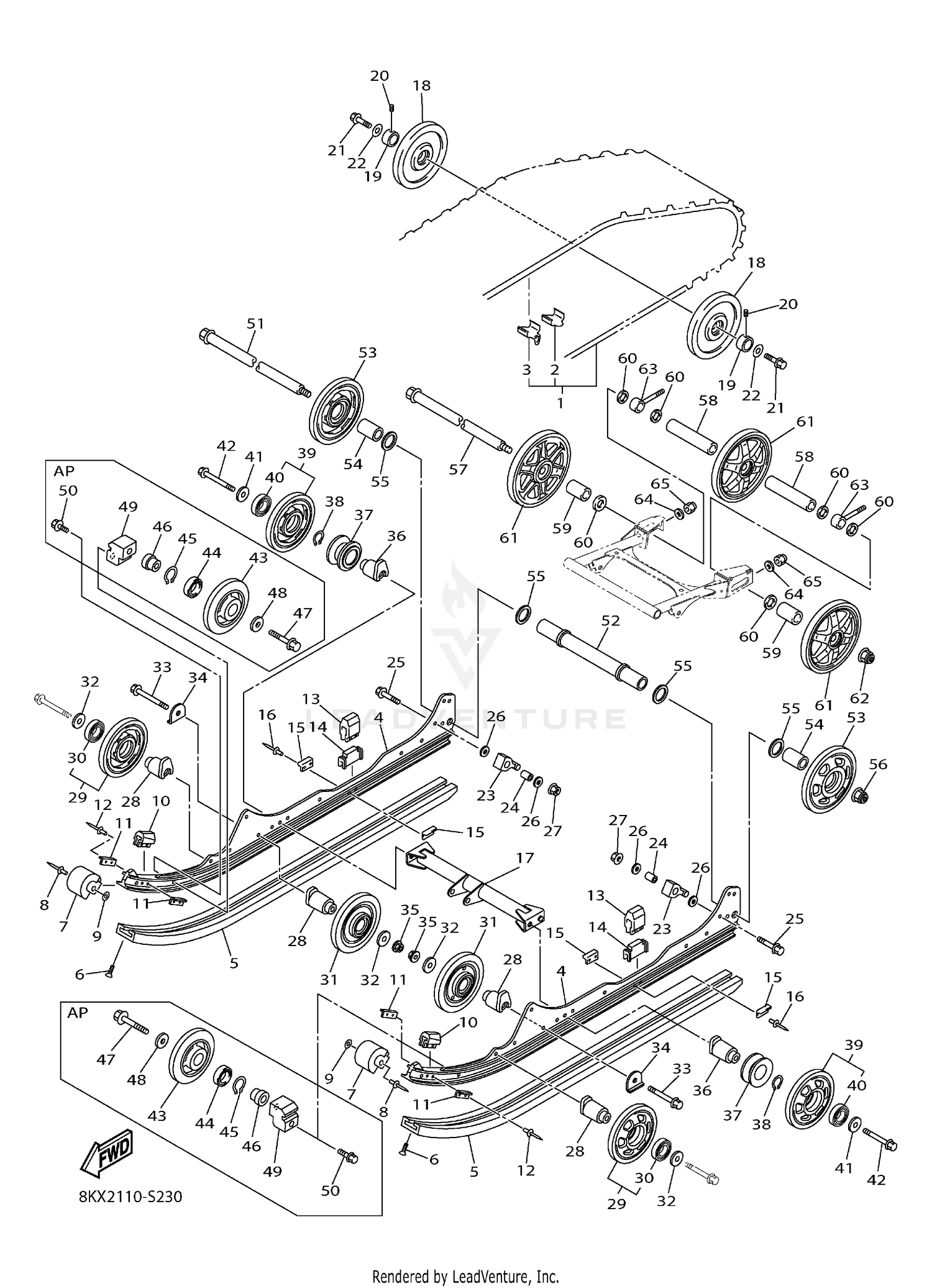

TRACK SUSPENSION 1 [106349]

TRACK SUSPENSION 1 [106349]

Parts (61)

RefPart NumberDescription
2 3021-018 Plate, Reinforcement Price: $14.55
3 3021-019 Metal, Slide Price: $14.55
4 3021-103 Frame, Sliding Price: $289.95
5 3021-029 Runner, Sliding 1 Price: $55.95
6 3021-292 Screw, Countersunk Price: $3.14
7 3020-965 Runner, Sliding 2 Price: $24.79
8 3021-394 Rivet, Blind (4.8X28 Silver) Price: $2.91
9 3021-315 Washer, Plate Price: $2.53
10 3020-926 Damper 1 Price: $3.29
11 3021-058 Plate, Damper Price: $12.07
12 3021-395 Rivet, Blind (4.8X28.3) Price: $2.53
13 3020-865 Damper 2 Price: $6.95
14 3021-092 Spacer Price: $6.69
15 3020-899 Plate, Damper Price: $12.07
16 3021-395 Rivet, Blind (4.8X28.3) Price: $2.53
17 3021-102 Bracket, Arm Pivot Price: $72.95
18 3020-866 Guide Wheel Assembly Price: $102.95
19 3021-027 Collar 1 Price: $7.95
20 3021-285 Bolt, Set Price: $5.04
21 3021-283 Bolt Price: $5.44
22 3021-337 Washer, Plate Price: $2.34
23 3021-040 Stopper 2 Price: $11.18
24 3021-436 Collar Price: $3.49
25 3021-274 Bolt, Flange Price: $4.94
26 3021-336 Washer, Plate Price: $4.37
27 3021-609 Nut, S/L Flange Price: $3.25
28 3020-924 Bracket 7 Price: $22.41
30 3021-560 Bearing Price: $40.95
31 3021-075 Suspension Wheel Assembly Price: $60.95
32 3021-334 Washer, Plate Price: $4.84
33 3021-640 Bolt, Flange Price: $7.23
34 3021-372 Washer, Claw Price: $4.48
35 3021-609 Nut, S/L Flange Price: $3.25
36 3020-923 Bracket 7 Price: $22.41
37 3020-931 Hook 1 Price: $14.55
38 3021-694 Circlip Price: $2.09
40 3021-560 Bearing Price: $40.95
41 3021-334 Washer, Plate Price: $4.84
42 3021-640 Bolt, Flange Price: $7.23
43 3020-864 Suspension Wheel Comp Price: $82.95
44 3021-559 Bearing Price: $34.95
45 3021-696 Circlip Price: $6.69
46 3020-969 Collar Price: $17.92
47 3021-638 Bolt, Flange Price: $4.37
48 3021-336 Washer, Plate Price: $4.37
49 3020-970 Bracket 7 Price: $51.79
50 3021-275 Bolt, Flange Price: $4.37
51 3021-043 Rear Axle Comp Price: $96.95
52 3020-760 Collar 1 Price: $33.95
53 3021-017 Suspension Wheel Assembly Price: $119.95
54 3021-442 Collar Price: $21.29
55 3021-350 Washer, Plate Price: $6.69
56 3021-610 Nut, Self-Locking Price: $5.95
57 3021-043 Rear Axle Comp Price: $96.95
58 3021-443 Collar Price: $21.29
59 3021-442 Collar Price: $21.29
60 3021-350 Washer, Plate Price: $6.69
61 3021-091 Guide Wheel Assy Price: $98.95
62 3021-610 Nut, Self-Locking Price: $5.95
63 3020-915 Collar 3 Price: $7.95
64 3021-539 Washer, Plate Price: $3.25
