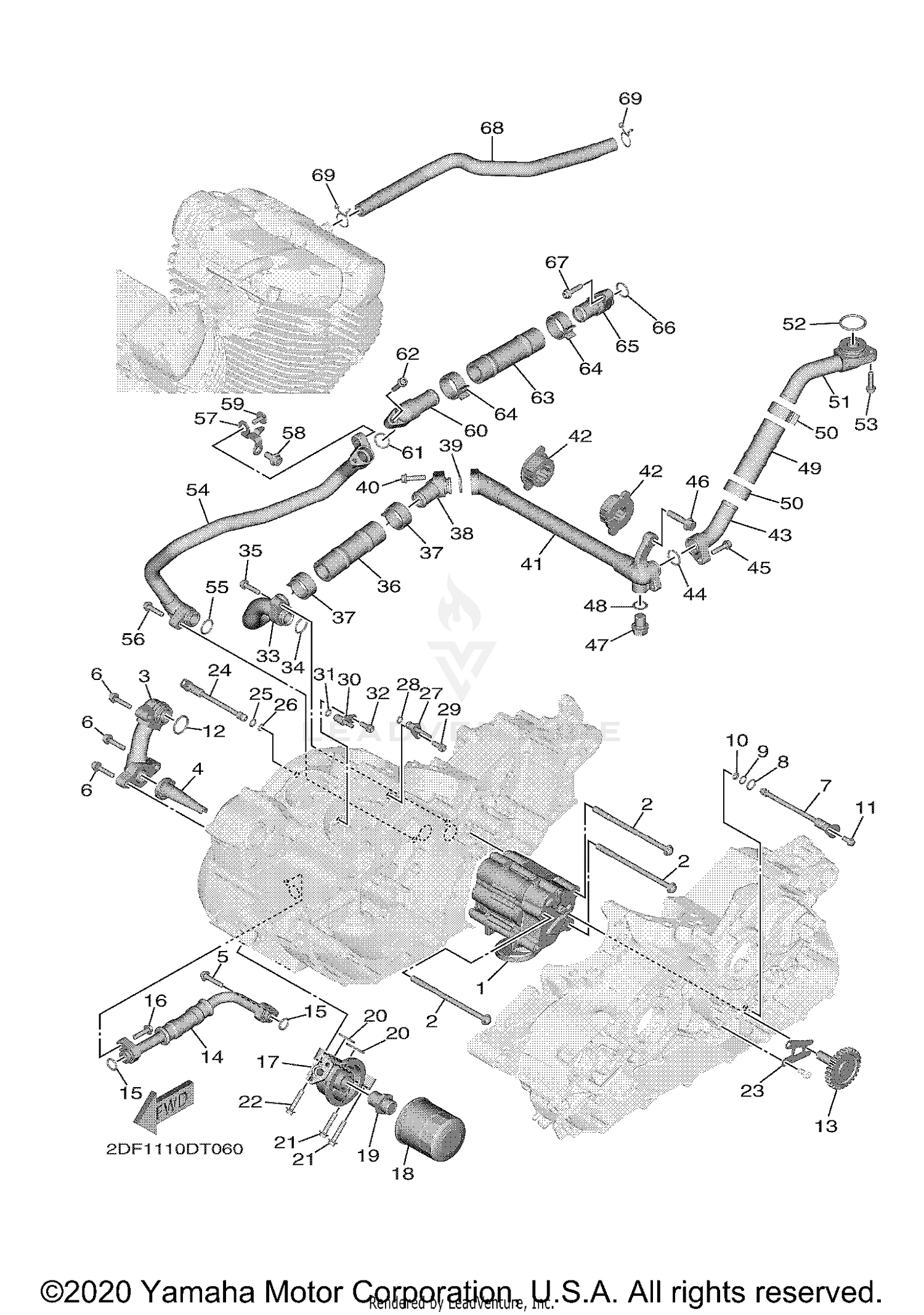

| Ref | Part Number | Description |
|---|
| 1 |
2DF-13300-00-00 |
OIL PUMP ASSY Price: $268.99 |
| 2 |
90105-08270-00 |
BOLT, FLANGE Price: $3.80 |
| 3 |
2DF-13406-00-00 |
OIL PIPE COMP. 2 Price: $170.99 |
| 4 |
2DF-13415-00-00 |
SEAL, OIL STRAINER Price: $18.99 |
| 5 |
90110-06388-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 90110-06389-00. Price: $6.49 |
| 6 |
90110-06416-00 |
BOLT, HEXAGON SOCKET HEAD Price: $4.05 |
| 7 |
2DF-13171-00-00 |
PIPE, DELIVERY 2 Price: $35.99 |
| 8 |
93210-12010-00 |
O-RING Price: $8.49 |
| 9 |
93210-09525-00 |
O-RING Price: $6.49 |
| 10 |
93210-06667-00 |
O-RING Price: $8.49 |
| 11 |
95022-06012-00 |
BOLT, FLANGE This part replaces 90105-06078-00. Price: $3.55 |
| 12 |
93210-23326-00 |
O-RING Price: $9.49 |
| 13 |
2DF-13360-00-00 |
DRIVEN GEAR ASSY Price: $60.99 |
| 14 |
2DF-13161-00-00 |
PIPE, DELIVERY 1 Price: $113.99 |
| 15 |
93210-13657-00 |
O-RING Price: $8.49 |
| 16 |
90110-06387-00 |
BOLT, HEXAGON SOCKET HEAD Price: $4.65 |
| 17 |
2DF-13461-00-00 |
PLATE, ADAPTOR Price: $59.99 |
| 18 |
5GH-13440-90-00 |
ELEMENT ASSY, OIL CLEANER This part replaces 5GH-13440-61-00. Price: $16.49 |
| 19 |
90401-20012-00 |
BOLT, UNION Price: $19.49 |
| 20 |
93210-23326-00 |
O-RING Price: $9.49 |
| 21 |
90110-06346-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 90110-06345-00. Price: $9.49 |
| 22 |
90110-06415-00 |
BOLT, HEXAGON SOCKET HEAD Price: $0.95 |
| 23 |
2DF-1357N-00-00 |
PLATE, STOPPER 1 Price: $9.99 |
| 24 |
1D7-13181-00-00 |
PIPE, DELIVERY 3 Price: $69.99 |
| 25 |
93210-08003-00 |
O-RING Price: $10.49 |
| 26 |
93210-07540-00 |
O-RING This part replaces 93210-07435-00. Price: $7.49 |
| 27 |
5C7-13352-00-00 |
NOZZLE Price: $58.99 |
| 28 |
93210-07540-00 |
O-RING This part replaces 93210-07435-00. Price: $7.49 |
| 29 |
91312-06014-00 |
BOLT This part replaces 90110-06168-00. Price: $5.49 |
| 30 |
5C7-13454-00-00 |
NOZZLE Price: $58.99 |
| 31 |
93210-07540-00 |
O-RING This part replaces 93210-07435-00. Price: $7.49 |
| 32 |
91312-06014-00 |
BOLT This part replaces 90110-06168-00. Price: $5.49 |
| 33 |
2DF-13582-00-00 |
PIPE Price: $77.99 |
| 34 |
93210-18006-00 |
O-RING Price: $8.49 |
| 35 |
90110-06411-00 |
BOLT, HEXAGON SOCKET HEAD Price: $2.15 |
| 36 |
2DF-13465-00-00 |
HOSE, OIL 2 Price: $17.49 |
| 37 |
90467-270A0-00 |
CLIP Price: $4.80 |
| 38 |
2DF-13815-00-00 |
JOINT 1 Price: $79.99 |
| 39 |
93210-18006-00 |
O-RING Price: $8.49 |
| 40 |
90110-06411-00 |
BOLT, HEXAGON SOCKET HEAD Price: $2.15 |
| 41 |
2DF-1316E-00-00 |
PIPE, DELIVERY 5 Price: $212.99 |
| 42 |
2DF-13159-00-00 |
DAMPER Price: $5.99 |
| 43 |
2DF-13816-00-00 |
JOINT 2 Price: $66.99 |
| 44 |
93210-18006-00 |
O-RING Price: $8.49 |
| 45 |
90110-06411-00 |
BOLT, HEXAGON SOCKET HEAD Price: $2.15 |
| 46 |
95D37-08025-00 |
BOLT, FLANGE DEEP RE This part replaces 90105-08271-00. Price: $2.00 |
| 47 |
90340-14132-00 |
PLUG, STRAIGHT SCREW Price: $3.15 |
| 48 |
214-11198-01-00 |
GASKET Price: $3.17 |
| 49 |
2DF-13464-00-00 |
HOSE, OIL 1 Price: $14.49 |
| 50 |
90467-270A0-00 |
CLIP Price: $4.80 |
| 51 |
2DF-13418-01-00 |
PIPE, OIL 2 Price: $107.99 |
| 52 |
93210-29198-00 |
O-RING Price: $8.49 |
| 53 |
90110-06411-00 |
BOLT, HEXAGON SOCKET HEAD Price: $2.15 |
| 54 |
2DF-13416-02-00 |
PIPE, OIL 1 Price: $271.99 |
| 55 |
93210-18006-00 |
O-RING Price: $8.49 |
| 56 |
90110-06411-00 |
BOLT, HEXAGON SOCKET HEAD Price: $2.15 |
| 57 |
2DF-13151-00-00 |
STAY Price: $23.99 |
| 58 |
90109-085E2-00 |
BOLT Price: $8.49 |
| 59 |
90111-06121-00 |
BOLT, HEX. SOCKET BUTTON Price: $4.85 |
| 60 |
2DF-13595-02-00 |
JOINT Price: $100.99 |
| 61 |
93210-18006-00 |
O-RING Price: $8.49 |
| 62 |
90110-06411-00 |
BOLT, HEXAGON SOCKET HEAD Price: $2.15 |
| 63 |
2DF-13467-00-00 |
HOSE Price: $17.99 |
| 64 |
90467-270A0-00 |
CLIP Price: $4.80 |
| 65 |
2DF-13284-01-00 |
PIPE Price: $59.99 |
| 66 |
93210-18006-00 |
O-RING Price: $8.49 |
| 67 |
90110-06411-00 |
BOLT, HEXAGON SOCKET HEAD Price: $2.15 |
| 68 |
2DF-13543-00-00 |
HOSE, AIR Price: $127.99 |
