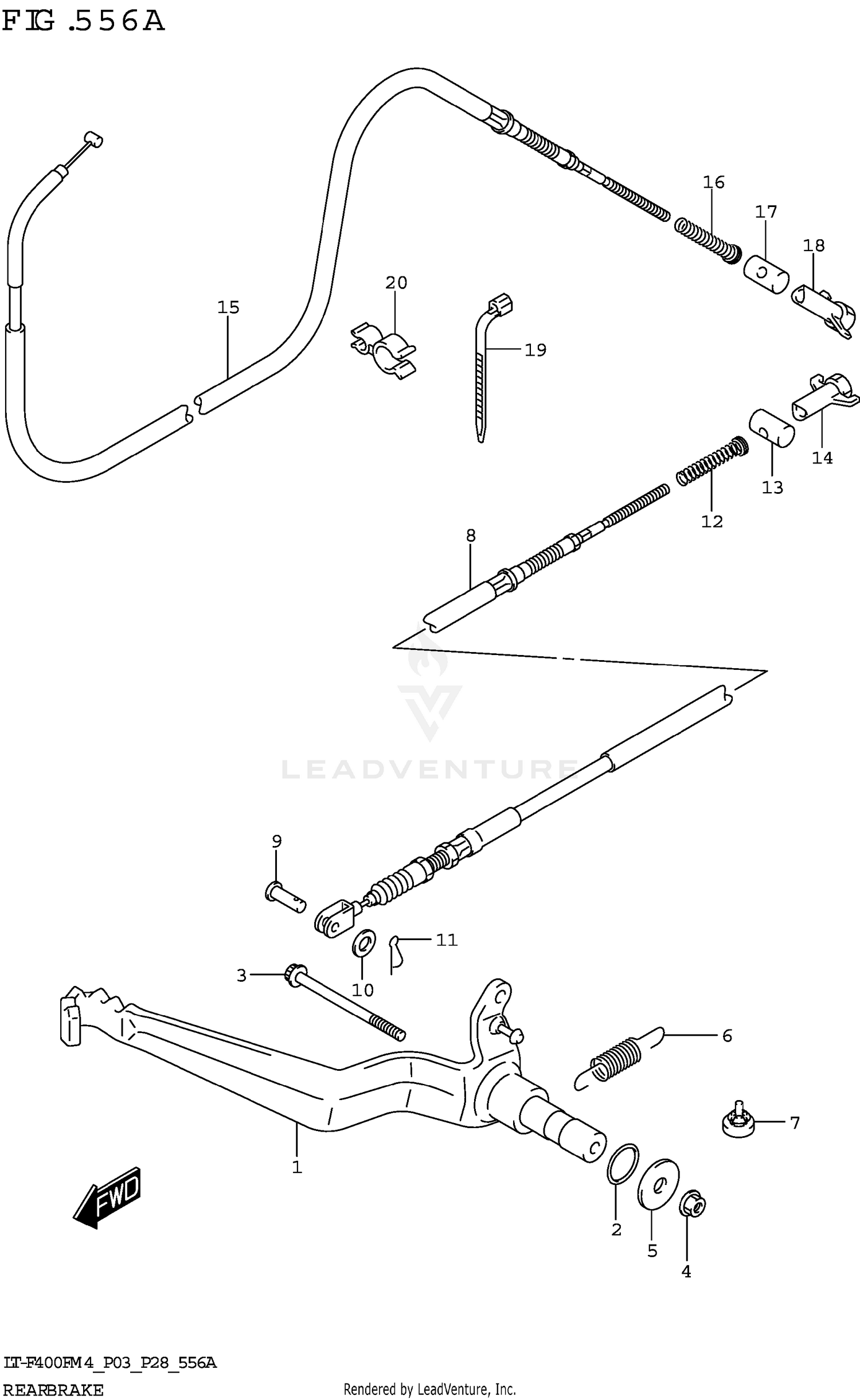

REAR BRAKE
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 43110-27H00 | PEDAL,BRAKE Price: $62.97 |
| 2 | 09280-17002 | O-RING (D:2.4,ID:16.8) Price: $6.23 |
| 3 | 01550-0685A | BOLT Price: $2.53 |
| 4 | 08319-3106A | NUT Price: $2.45 |
| 5 | 09160-06136 | WASHER (6.5X28X1.6) Price: $2.22 |
| 6 | 09443-12019 | SPRING Price: $5.49 |
| 7 | 09321-08026 | CUSHION Price: $2.37 |
| 8 | 58510-27H10 | CABLE,REAR BRAKE Price: $60.51 |
| 9 | 09200-05001 | PIN (L:17.5) Price: $1.73 |
| 10 | 08322-0106B | WASHER Price: $2.72 |
| 11 | 09385-06012 | CLIP Price: $2.30 |
| 12 | 09440-08042 | SPRING Price: $3.07 |
| 13 | 09209-13006 | PIN Price: $6.38 |
| 14 | 09150-06015 | NUT Price: $4.40 |
| 15 | 58810-27H11 | CABLE,PARKING BRAKE Price: $62.43 |
| 16 | 09440-08042 | SPRING Price: $3.07 |
| 17 | 09209-13006 | PIN Price: $6.38 |
| 18 | 09150-06015 | NUT Price: $4.40 |
| 19 | 09407-14403 | CLAMP (L:125) Price: $2.72 |
