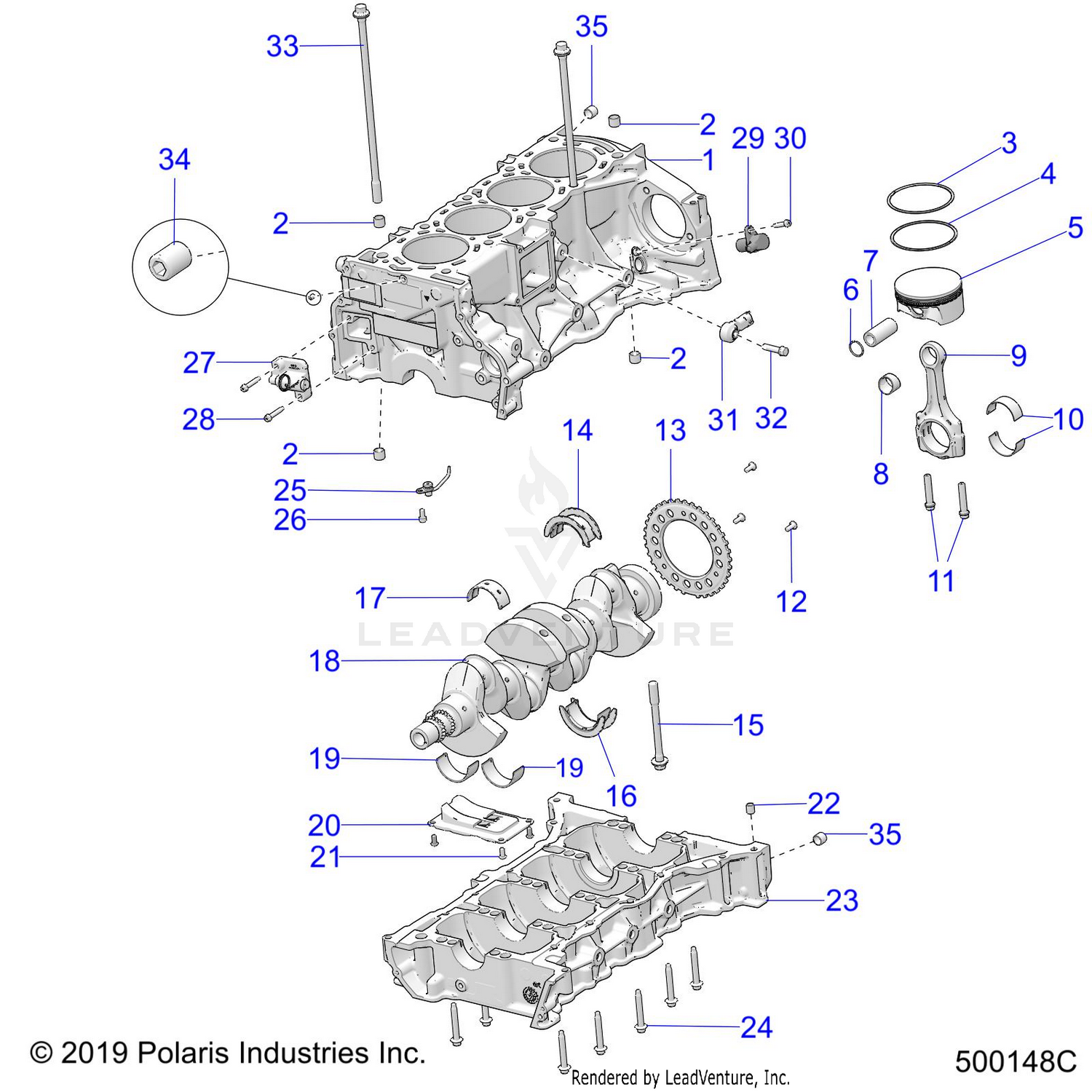

| Ref | Part Number | Description |
|---|
| 2 |
7662300 |
DOWEL-HOLLOW,M15 Price: $29.99 |
| 3 |
3023463 |
RING-TOP Price: $39.99 |
| 4 |
3023464 |
RING-SECOND Price: $34.99 |
| 5 |
3023198 |
PISTON Price: $114.99 |
| 6 |
7710479 |
RING-RTNG,RND,22.0X1.6,0600102 Price: $8.99 |
| 7 |
3023199 |
PIN-PISTON Price: $29.99 |
| 8 |
------- |
BUSHING-WRIST PIN |
| 10 |
3514998-015 |
BEARING-CON ROD,RED Price: $24.99 |
| 10 |
3514998-016 |
BEARING-CON ROD,WHITE Price: $24.99 |
| 10 |
3514998-027 |
BEARING-CON ROD,BLUE Price: $24.99 |
| 10 |
3514998-053 |
BEARIN-CON ROD,YELLOW Price: $24.99 |
| 11 |
7520356 |
BOLT-CONROD MJ9X1.0X44 Price: $29.99 |
| 12 |
7520501 |
SCR-CSK-M6X1 8.8 Price: $3.99 |
| 13 |
3023176 |
WHEEL-CPS,36-1 Price: $24.99 |
| 14 |
3023376-001 |
BEARING-MAIN,UPR,THRUST, BLACK Price: $24.99 |
| 14 |
3023376-002 |
BEARING-MAIN,UPR,THRUST, BLUE Price: $24.99 |
| 14 |
3023376-003 |
BEARING-MAIN,UPR,THRUST, GREEN Price: $24.99 |
| 14 |
3023376-004 |
BEARING-MAIN,UPR,THRUST, YELLOW Price: $24.99 |
| 14 |
3023376-005 |
BEARING-MAIN,UPR,THRUST, RED Price: $24.99 |
| 15 |
3023276 |
SCR-HXFL-M12X1.5X123 10.9 SEMS Price: $9.99 |
| 16 |
3023374-001 |
BEARING-MAIN,LWR THRUST,GRADE 1 BLACK Price: $24.99 |
| 16 |
3023374-002 |
BEARING-MAIN,LWR THRUST,GRADE 2 BLUE Price: $24.99 |
| 16 |
3023374-003 |
BEARING-MAIN,LWR THRUST,GRADE 3 GREEN Price: $24.99 |
| 16 |
3023374-004 |
BEARING-MAIN,LWR THRUST,GRADE 4 YELLOW Price: $24.99 |
| 16 |
3023374-005 |
BEARING-MAIN,LWR THRUST,GRADE 5 RED Price: $24.99 |
| 17 |
3023375-001 |
BEARING-MAIN,UPR,GRADE 1 BLACK Price: $19.99 |
| 17 |
3023375-002 |
BEARING-MAIN,UPR,GRADE 2 BLUE Price: $19.99 |
| 17 |
3023375-003 |
BEARING-MAIN,UPR,GRADE 3 GREEN Price: $19.99 |
| 17 |
3023375-004 |
BEARING-MAIN,UPR,GRADE 4 YELLOW Price: $19.99 |
| 17 |
3023375-005 |
BEARING-MAIN,UPR,GRADE 5 RED Price: $19.99 |
| 18 |
3023298 |
CRANKSHAFT Price: $1,294.99 |
| 19 |
3023373-001 |
BEARING-MAIN,LWR,GRADE 1 BLACK Price: $19.99 |
| 19 |
3023373-002 |
BEARING-MAIN,LWR,GRADE 2 BLUE Price: $19.99 |
| 19 |
3023373-003 |
BEARING-MAIN,LWR,GRADE 3 GREEN Price: $19.99 |
| 19 |
3023373-004 |
BEARING-MAIN,LWR,GRADE 4 YELLOW Price: $19.99 |
| 19 |
3023373-005 |
BEARING-MAIN,LWR,GRADE 5 RED Price: $19.99 |
| 20 |
3023317 |
ASM., REED VALVE Price: $54.99 |
| 21 |
7518330 |
SCR-TORX BTNHD,M6X12,0600129 Price: $5.99 |
| 22 |
7052670 |
DOWEL-M11,H6 Price: $6.99 |
| 23 |
------- |
BEDPLATE-CAST |
| 24 |
7520503 |
SCR-HXFL-M8X1.25X50 8.8 DOG Price: $3.99 |
| 25 |
2521788 |
JET-PISTON COOLING,0.8 Price: $59.99 |
| 26 |
7517739 |
SCREW-SH-M6X1.0X12 10.9 ZPB D204 Price: $11.99 |
| 27 |
3023189 |
TENSIONER-CHAIN Price: $109.99 |
| 28 |
7520497 |
SCR-HXFL-M6X1.0X30 8.8 DOG Price: $3.99 |
| 29 |
4015068 |
SENSOR-CRANK POSITION,445MM Price: $139.99 |
| 30 |
7520496 |
SCR-HXFL-M6X1.0X20 8.8 DOG Price: $3.99 |
| 31 |
2413713 |
SENSOR-KNOCK BOSCH Price: $79.99 |
| 32 |
7517262 |
SCREW-M8X1.25X30,HX/FL-YD Price: $6.99 |
| 33 |
3023275 |
SCR-HXFL-M12X1.5X300 10.9 SEMS Price: $29.99 |
| 34 |
2521817 |
JET-OIL,M6X1.0,1.0 ORIFICE Price: $6.99 |
