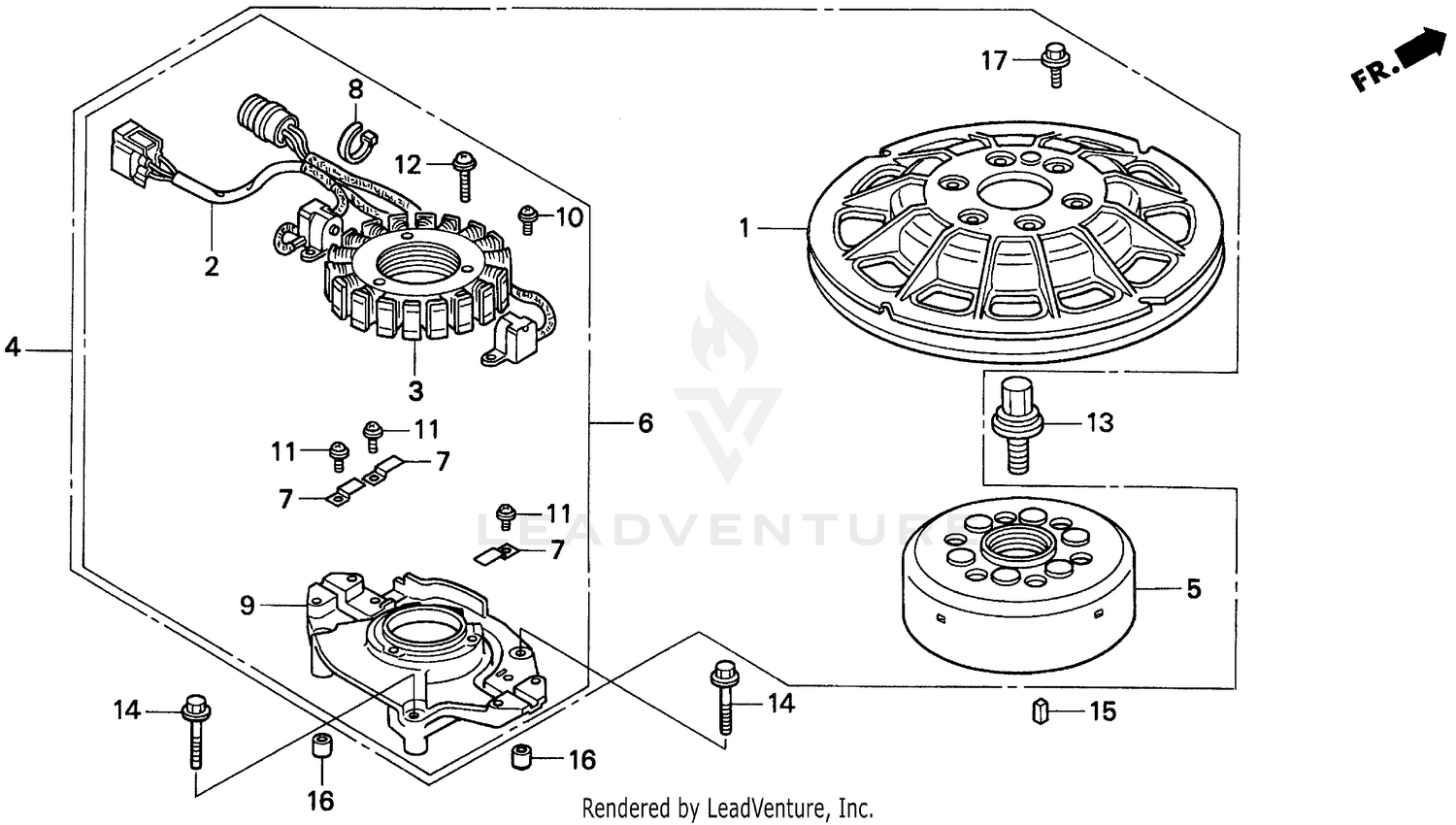

ALTERNATOR
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 28451-ZW1-000 | PULLEY, STARTER Price: $143.22 |
| 2 | 30310-ZW1-003 | COIL ASSY., PULSER Price: $216.98 |
| 3 | 31120-ZW1-003 | STATOR Price: $251.16 |
| 4 | 31630-ZW1-003 | ALTERNATOR ASSY. Price: $519.04 |
| 5 | 31631-ZW1-003 | ROTOR Price: $372.11 |
| 6 | 31632-ZW1-003 | STATOR ASSY. Price: $300.23 |
| 7 | 31633-ZW1-003 | CLAMP, WIRE Price: $6.88 |
| 8 | 31634-ZW1-003 | CLAMP, CABLE Price: $4.42 |
| 9 | 31635-ZW1-003 | BASE, COIL SETTING Price: $142.14 |
| 10 | 90004-ZW1-003 | SCREW-WASHER (5X12) Price: $4.74 |
| 11 | 90005-ZW1-003 | SCREW-WASHER (4X8) Price: $3.50 |
| 12 | 90007-ZW1-003 | SCREW-WASHER (6X30) Price: $5.64 |
| 13 | 04133-P01-305 | SEE PART DETAILS - PRI; BOLT-WASHER (14X29) Price: $26.92 |
| 13 | 90017-P01-003 | SEE PART DETAILS - SUP; BOLT-WASHER (14X29) Price: Call Us |
| 14 | 90125-ZV1-010 | BOLT, FLANGE (6X42) Price: $2.56 |
| 15 | 90704-634-000 | KEY (4.5X11.0) Price: $8.02 |
| 16 | 94301-08100 | SEE PART DETAILS - PRI; PIN A, DOWEL (8X10) Price: $2.82 |
