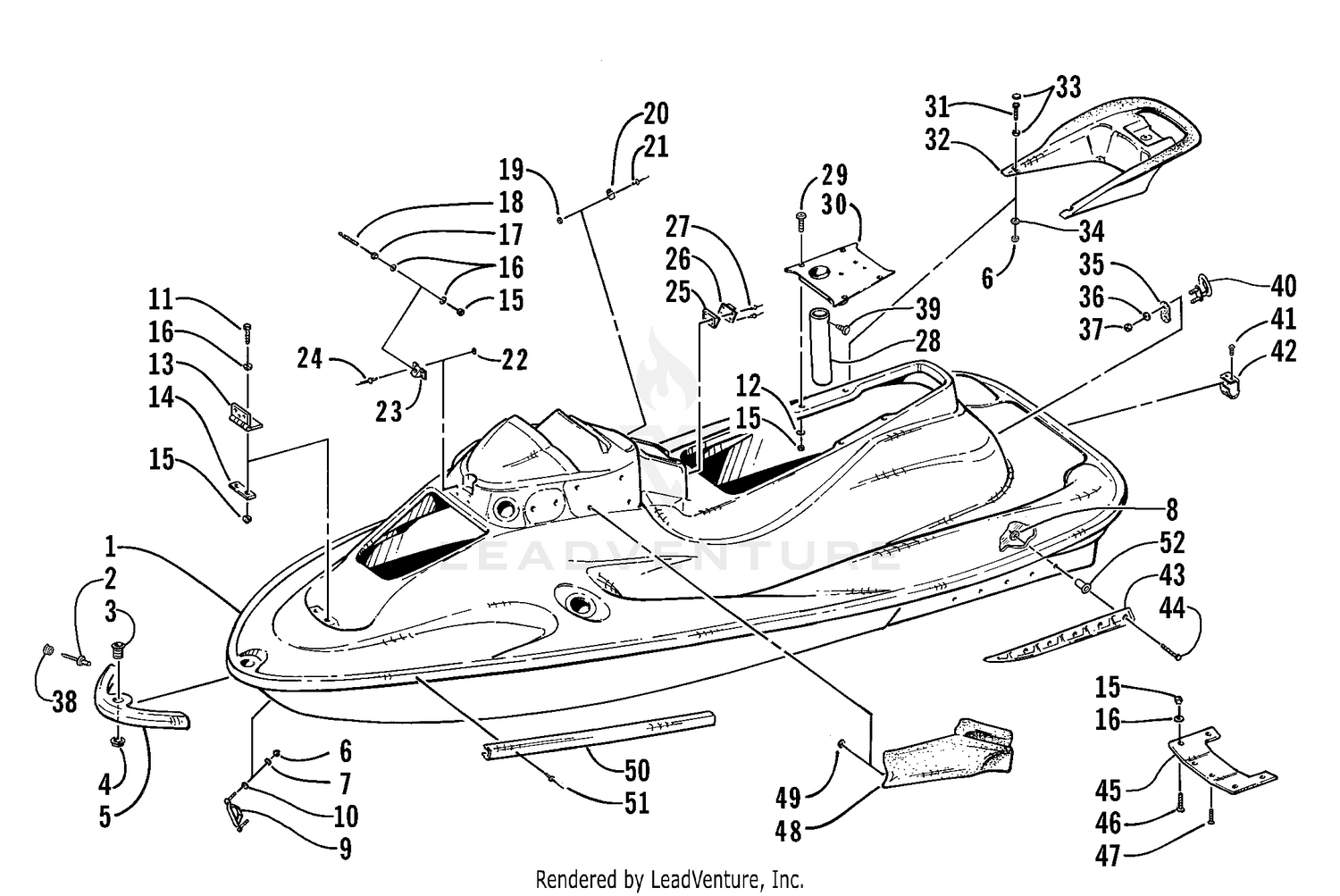

HULL AND RELATED PARTS ASSEMBLY [54145]

HULL AND RELATED PARTS ASSEMBLY [54145]

Parts (55)

RefPart NumberDescription
1 0773-987 Hull/Deck - Assembly Price: $3,660.79
2 0623-636 Rivet Price: $0.96
3 1673-479 Boweye Price: $6.59
4 0623-753 Nut Price: $4.95
5 0773-974 Nosecone, Black Price: $91.29
6 0624-089 Nut, Lock (900) Price: $1.09
7 0624-247 Washer Price: $0.59
8 0624-293 Washer Price: $0.26
9 0773-516 BOWEYE-WELDMENT Price: $64.75
10 0624-299 Washer, Sealing Price: $0.66
11 0624-112 SCREW,CAP HH6MM 1.0TX25MM Price: $0.53
12 0624-022 Washer Price: $0.18
13 1673-032 Hinge, Hatch Assembly Price: $179.23
14 1673-031 Plate, Hinge Price: $3.51
15 0624-250 NUT,LOCK-NSL M6-1.0 SS Price: $0.71
16 0624-182 Washer Price: $0.41
17 0624-059 Nut Price: $0.92
18 1673-467 Stud, Strike Price: $8.29
19 0623-603 Washer Price: $0.35
20 1673-578 Receiver, Glove Box Lid - Starboard Price: $2.08
20 1673-579 Receiver, Glove Box Lid - Port Price: $2.08
21 8060-633 Rivet, Blind - DH Price: $1.20
22 0624-004 Washer Price: $0.35
23 1673-483 Strike, Hatch Cover Price: $18.82
24 0624-072 Rivet Price: $0.87
25 1673-609 Wedge, Latch Price: $12.93
26 1673-592 Latch, Glove Box Lid Price: $31.95
27 0623-763 Rivet Price: $2.63
28 0610-399 Hose, Air Exhaust (770) Price: $21.79
29 0624-184 Screw, Machine Price: $1.69
30 1673-480 Bridge, Seat Price: $73.39
31 0624-187 Screw, Cap Price: $1.09
32 1673-417 Handle, Grab Price: $146.83
33 0124-054 Cap, Snap - Washer Price: $1.32
34 0624-228 Washer Price: $0.49
35 1673-083 Gasket, Eyehook Price: $0.52
36 0624-159 Washer Price: $2.29
37 0624-258 Nut Price: $0.96
38 1673-687 Plug Price: $1.39
39 0623-585 Clip, Retaining Price: $1.39
40 0624-484 Eyehook Price: $53.49
41 0623-725 CLIP,RETAINING-BLACK Price: $0.59
42 0673-975 COVER,RUB RAIL Price: $39.95
43 0673-996 Sponson - Starboard Price: $73.95
43 0673-997 Sponson - Port Price: $59.95
44 0624-271 Screw, Cap Price: $0.39
45 0675-179 Plate, Ride Price: $86.29
46 0624-186 Screw, Machine Price: $1.69
47 0624-184 Screw, Machine Price: $1.69
48 1673-700 Pad, Knee - Starboard Price: $186.79
48 1673-701 Pad, Knee - Port Price: $94.79
49 0624-487 Nut, Stamped Price: $0.52
50 1673-524 Trim, Rub Rail - Starboard (640) Price: $159.79
50 1673-525 Trim, Rub Rail - Port (640) Price: $159.79
51 0624-068 Rivet Price: $1.00
