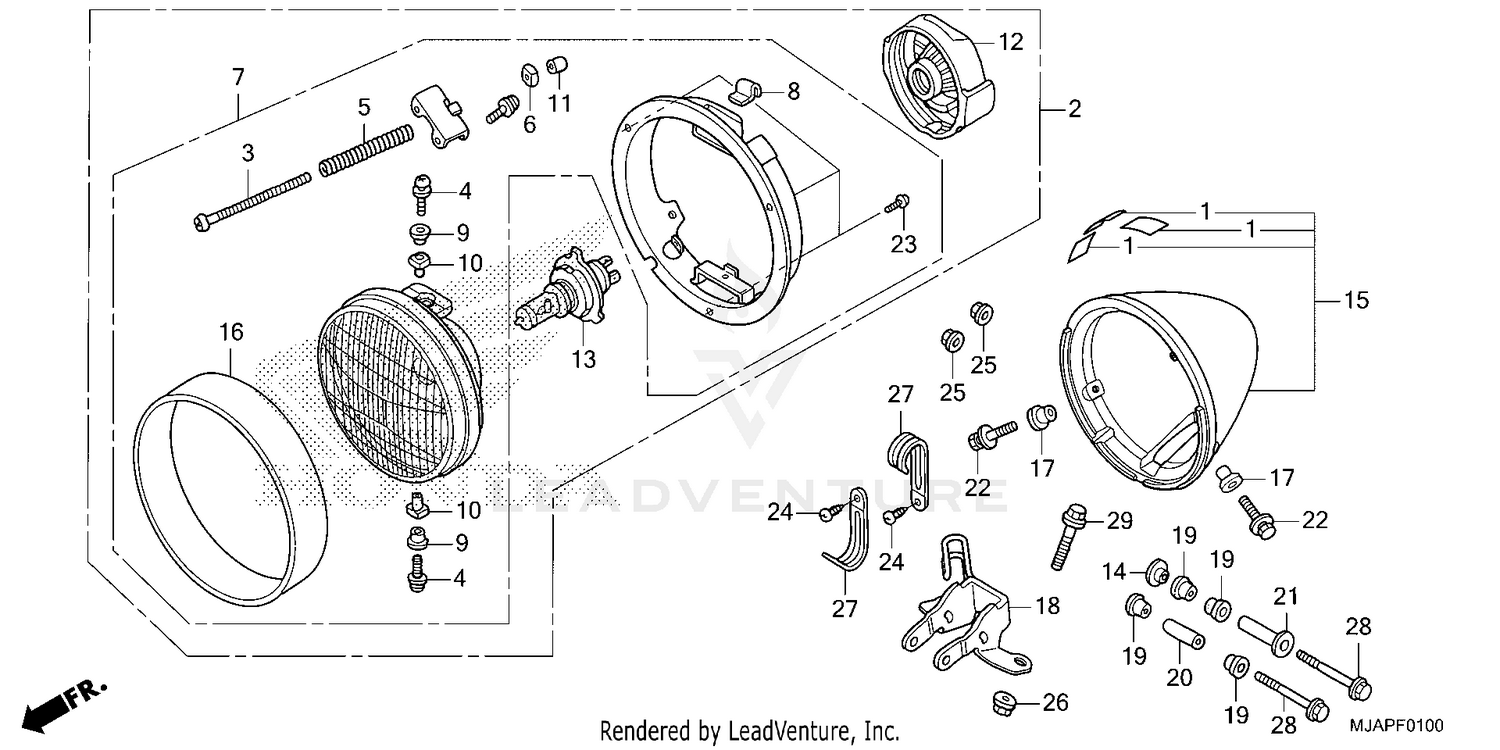

| Ref | Part Number | Description |
|---|
| 1 |
17518-MY9-690 |
PROTECTOR Price: $3.45 |
| 2 |
33100-MEG-305 |
HEADLIGHT ASSY. (12V 60/55W) (COO) (STANLEY) This part replaces 33100-MEG-A41. Price: $221.80 |
| 3 |
33103-MM2-003 |
SCREW, BEAM ADJUSTING (PER PARTS NEWS 005 8/21/00) Price: $3.13 |
| 4 |
33104-MAH-671 |
SCREW-WASHER Price: $5.04 |
| 5 |
33108-MM2-003 |
SPRING, BEAM ADJUSTING (PER PARTS NEWS 005 8/21/00) Price: $3.73 |
| 6 |
33118-438-841 |
NUT, BEAM ADJUSTING (PER PARTS NEWS 005 8/21/00) Price: $2.55 |
| 7 |
33120-MEG-305 |
HEADLIGHT UNIT (COO) This part replaces 33120-MEG-A41. Price: $171.69 |
| 8 |
33126-MEA-650 |
TAPE, PROTECTOR Price: $3.55 |
| 9 |
33127-MAA-A31 |
SPACER Price: $3.02 |
| 10 |
33128-MAA-A31 |
NUT, UNIT HOLDER Price: $2.56 |
| 11 |
33136-426-830 |
COVER, SCREW Price: $2.15 |
| 12 |
33180-MR7-003 |
COVER, RUBBER Price: $17.25 |
| 13 |
34901-MC7-602 |
BULB, HEADLIGHT (12V 60/55W) (STANLEY) Price: $45.05 |
| 14 |
52157-GC5-000 |
COLLAR, CHAIN GUARD Price: $5.62 |
| 15 |
61300-MEG-A40 |
CASE SET, HEADLIGHT Price: $128.49 |
| 16 |
61302-MEG-000 |
RIM, HEADLIGHT Price: $72.33 |
| 17 |
61304-292-000 |
COLLAR, HEADLIGHT SETTING Price: $4.35 |
| 18 |
61311-MEG-A40 |
STAY, HEADLIGHT Price: $54.76 |
| 19 |
61315-MR1-000 |
RUBBER, HEADLIGHT MOUNTING Price: $3.73 |
| 20 |
61316-MK7-000 |
COLLAR, HEADLIGHT STAY Price: $3.73 |
| 21 |
90501-MCF-000 |
COLLAR A Price: $5.58 |
| 22 |
93402-05020-00 |
BOLT-WASHER (5X20) Price: $1.18 |
| 23 |
93901-24310 |
SCREW, TAPPING (4X12) Price: $0.95 |
| 24 |
93901-34310 |
SCREW, TAPPING (4X12) Price: $0.95 |
| 25 |
94050-06070 |
NUT, FLANGE (6MM) Price: $1.52 |
| 26 |
94050-08000 |
NUT, FLANGE (8MM) NUT, FLANGE (10MM) Price: $0.98 |
| 27 |
94591-49000 |
CLIP (4X90) Price: $3.78 |
| 28 |
95701-06055-07 |
BOLT, FLANGE (6X55) Price: $2.05 |
