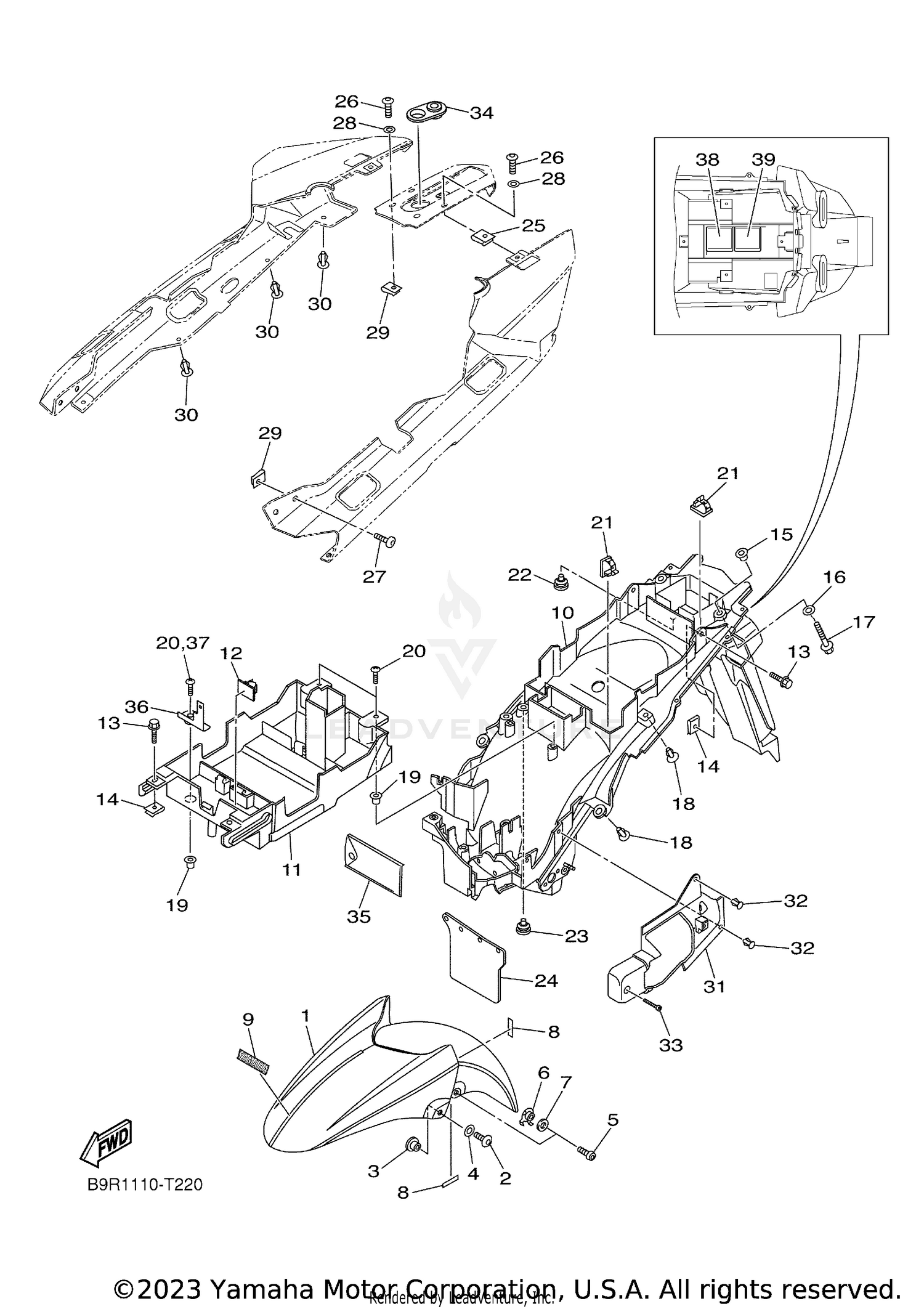

| Ref | Part Number | Description |
|---|
| 2 |
90110-06200-00 |
BOLT, HEXAGON SOCKET HEAD Price: $9.49 |
| 3 |
90387-07006-00 |
COLLAR Price: $8.49 |
| 4 |
90202-06170-00 |
WASHER, PLATE Price: $2.05 |
| 5 |
92012-06020-00 |
BOLT, BUTTON HEAD Price: $9.49 |
| 6 |
3P6-21535-11-00 |
NUT 1 Price: $24.99 |
| 7 |
3P6-21541-00-00 |
DAMPER 1 Price: $7.49 |
| 8 |
5DM-28371-00-00 |
DAMPER Price: $8.49 |
| 9 |
3WF-2153E-71-00 |
EMBLEM, YAMAHA Price: $5.49 |
| 10 |
BK5-21611-01-00 |
FENDER, REAR Price: $91.99 |
| 11 |
5P5-2160E-01-00 |
BOX Price: $17.49 |
| 12 |
90464-25160-00 |
CLAMP Price: $12.49 |
| 13 |
90119-06159-00 |
BOLT, WITH WASHER Price: $9.49 |
| 14 |
90183-060A7-00 |
NUT, SPRING Price: $9.49 |
| 15 |
90387-06231-00 |
COLLAR Price: $5.49 |
| 16 |
90201-07081-00 |
WASHER, PLATE Price: $11.49 |
| 17 |
95817-06040-00 |
BOLT, FLANGE This part replaces 95802-06040-00. Price: $6.49 |
| 18 |
90269-06081-00 |
RIVET Price: $8.49 |
| 19 |
90338-08226-00 |
PLUG Price: $2.35 |
| 20 |
97702-60020-00 |
SCREW, TAPPING Price: $0.40 |
| 21 |
90464-13185-00 |
CLAMP Price: $6.49 |
| 22 |
90480-10M36-00 |
GROMMET Price: $1.96 |
| 23 |
90480-10M36-00 |
GROMMET Price: $1.96 |
| 24 |
5JW-21621-10-00 |
FLAP Price: $25.99 |
| 25 |
90183-051A0-00 |
NUT, SPRING Price: $4.10 |
| 26 |
90111-05044-00 |
BOLT, HEX. SOCKET BUTTON Price: $8.49 |
| 27 |
90111-05021-00 |
BOLT, HEX. SOCKET BUTTON Price: $6.49 |
| 28 |
90202-05180-00 |
WASHER, PLATE Price: $11.49 |
| 29 |
90183-050A0-00 |
NUT, SPRING Price: $6.49 |
| 30 |
90269-06081-00 |
RIVET Price: $8.49 |
| 31 |
1MC-2163A-01-00 |
COVER, REAR FENDER Price: $12.49 |
| 32 |
90269-06081-00 |
RIVET Price: $8.49 |
| 33 |
97780-50125-00 |
SCREW, TAPPING This part replaces 97702-50125-00. Price: $3.10 |
| 34 |
3P6-24747-00-00 |
DAMPER, SEAT Price: $10.49 |
| 35 |
B88-28100-01-00 |
TOOL KIT Price: $16.49 |
| 36 |
5P5-22562-10-00 |
STAY, FUSE Price: $55.99 |
| 37 |
97702-60020-00 |
SCREW, TAPPING Price: $0.40 |
| 38 |
13S-21684-11-00 |
PLATE, ROUTING Price: $9.49 |
