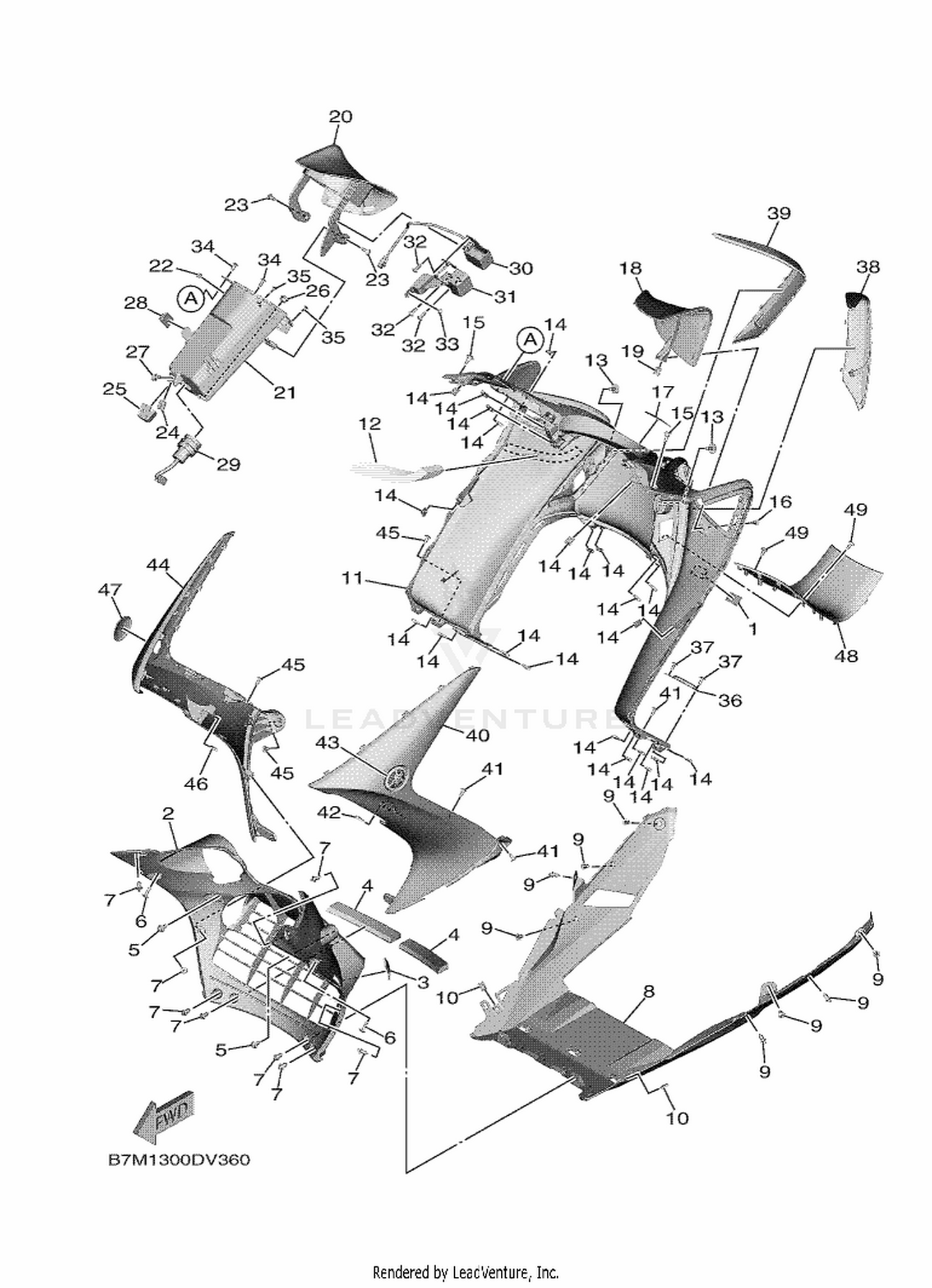

| Ref | Part Number | Description |
|---|
| 1 |
26P-21568-01 |
LABEL, WARNING Price: Call Us |
| 2 |
B7M-21557-00 |
DUCT, AIR Price: Call Us |
| 3 |
3XV-21778-00 |
DAMPER, LOCATING 1 Price: Call Us |
| 4 |
90520-10015 |
DAMPER, PLATE Price: Call Us |
| 5 |
90109-06264 |
BOLT Price: Call Us |
| 6 |
90167-05076 |
SCREW, TAPPING Price: Call Us |
| 7 |
90269-06008 |
RIVET Price: Call Us |
| 8 |
BC3-21553-00 |
FENDER, INNER 2 Price: Call Us |
| 9 |
90269-06008 |
RIVET Price: Call Us |
| 10 |
90183-05042 |
NUT, SPRING Price: Call Us |
| 11 |
BC3-28311-00 |
LEG SHIELD 1 Price: Call Us |
| 13 |
90159-06021 |
SCREW, WITH WASHER Price: Call Us |
| 14 |
90183-05042 |
NUT, SPRING Price: Call Us |
| 15 |
90109-05018 |
BOLT Price: Call Us |
| 16 |
90169-05001 |
TAPPING SCREW Price: Call Us |
| 18 |
BC3-28313-00 |
LID Price: Call Us |
| 19 |
90183-05042 |
NUT, SPRING Price: Call Us |
| 20 |
BC3-W283B-12 |
LID ASSY Price: Call Us |
| 21 |
BC3-W28AL-02 |
BOX ASSY Price: Call Us |
| 22 |
BC3-2836T-00 |
DAMPER, LOCATING 1 Price: Call Us |
| 23 |
97702-50016 |
SCREW, TAPPING Price: Call Us |
| 24 |
90183-060A6 |
NUT, SPRING Price: Call Us |
| 25 |
BC3-28227-00 |
DAMPER 2 Price: Call Us |
| 26 |
90338-10132 |
PLUG Price: Call Us |
| 27 |
90159-06022 |
SCREW, WITH WASHER Price: Call Us |
| 28 |
90464-25160 |
CLAMP Price: Call Us |
| 29 |
BC3-8254B-00 |
TERMINAL COMP. Price: Call Us |
| 30 |
BC3-86111-10 |
COIL, SOLENOID Price: Call Us |
| 31 |
BC3-2834V-00 |
PROTECTOR 1 Price: Call Us |
| 32 |
97702-50016 |
SCREW, TAPPING Price: Call Us |
| 33 |
90183-05M02 |
NUT, SPRING Price: Call Us |
| 34 |
97707-50012 |
SCREW, TRUSS HEAD TAPPING Price: Call Us |
| 35 |
90269-03001 |
RIVET Price: Call Us |
| 36 |
BC3-2842M-00 |
COVER 1 Price: Call Us |
| 37 |
97707-50012 |
SCREW, TRUSS HEAD TAPPING Price: Call Us |
| 38 |
BC3-28345-A0 |
MOLE 1 Price: Call Us |
| 39 |
BC3-28346-A0 |
MOLE 2 Price: Call Us |
| 41 |
97702-50012 |
SCREW, TAPPING Price: Call Us |
| 42 |
90183-05042 |
NUT, SPRING Price: Call Us |
| 43 |
1RC-2413B-01 |
EMBLEM Price: Call Us |
| 45 |
97702-50012 |
SCREW, TAPPING Price: Call Us |
| 46 |
90183-05042 |
NUT, SPRING Price: Call Us |
| 47 |
1RC-2413B-01 |
EMBLEM Price: Call Us |
| 48 |
B7M-28365-00 |
COVER Price: Call Us |
