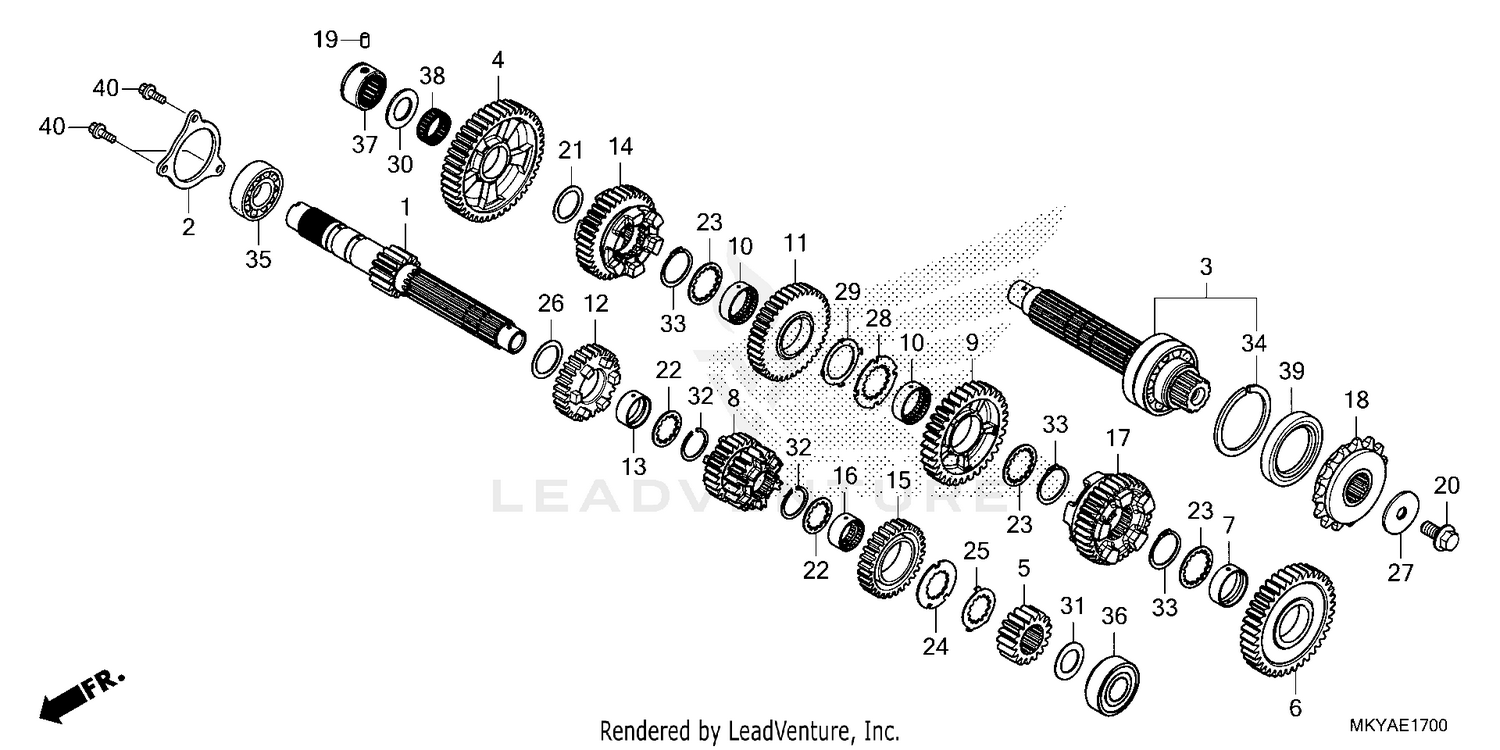

| Ref | Part Number | Description |
|---|
| 1 |
23211-MKY-E20 |
SHAFT, MAIN Price: $55.85 |
| 2 |
23212-MJE-D00 |
PLATE, BEARING SETTING Price: $8.35 |
| 3 |
23220-MKY-E20 |
COUNTERSHAFT COMP Price: $134.78 |
| 4 |
23421-MJE-DB0 |
GEAR, COUNTERSHAFT FIRST (43T) Price: $39.48 |
| 5 |
23431-MJE-DB0 |
GEAR, MAINSHAFT SECOND (17T) Price: $31.07 |
| 6 |
23441-MJE-DB0 |
GEAR, COUNTERSHAFT SECOND (40T) Price: $46.62 |
| 7 |
23442-MS2-610 |
COLLAR (30X11.2) Price: $27.11 |
| 8 |
23451-MKN-D10 |
GEAR, MAINSHAFT THIRD & FOURTH (18T/25T) Price: $89.86 |
| 9 |
23461-MKY-D10 |
GEAR, COUNTERSHAFT THIRD (34T) Price: $44.83 |
| 10 |
23462-MAT-000 |
COLLAR, SPLINE (30X11) Price: $26.27 |
| 11 |
23481-MJE-DB0 |
GEAR, COUNTERSHAFT FOURTH (39T) Price: $32.80 |
| 12 |
23491-MKN-D10 |
GEAR, MAINSHAFT FIFTH (27T) Price: $51.27 |
| 13 |
23492-MGZ-J00 |
COLLAR (25X28X12) Price: $15.29 |
| 14 |
23501-MKN-D10 |
GEAR, COUNTERSHAFT FIFTH (37T) Price: $84.26 |
| 15 |
23511-MKN-D10 |
GEAR, MAINSHAFT SIXTH (28T) Price: $53.95 |
| 16 |
23512-MV9-670 |
COLLAR, SPLINE (25X28X13) Price: $30.98 |
| 17 |
23521-MJE-DB0 |
GEAR, COUNTERSHAFT SIXTH (34T) Price: $64.06 |
| 18 |
23801-MKN-D10 |
SPROCKET, DRIVE (15T) Price: $109.62 |
| 19 |
24261-283-000 |
PIN, GEARSHIFT FORK GUIDE Price: $5.29 |
| 20 |
90037-422-003 |
BOLT, SPECIAL (10MM) Price: $9.20 |
| 21 |
90402-HA5-000 |
WASHER, THRUST (24MM) Price: $4.60 |
| 22 |
90451-KY2-000 |
WASHER, SPLINE (25X31X1.5) Price: $4.80 |
| 23 |
90452-MAT-000 |
WASHER, SPLINE (30X36X1.5) Price: $3.76 |
| 24 |
90454-KYJ-900 |
WASHER, SPLINE (25X42X1.6) Price: $1.69 |
| 25 |
90455-KYJ-900 |
WASHER, LOCK (25MM) Price: $35.82 |
| 26 |
90456-MA6-000 |
WASHER, THRUST (25MM) Price: $3.04 |
| 27 |
90459-438-000 |
WASHER (10.2MM) Price: $7.33 |
| 28 |
90463-MAT-000 |
WASHER, SPLINE (30MM) Price: $5.22 |
| 29 |
90464-MAT-000 |
WASHER, LOCK (30MM) Price: $7.67 |
| 30 |
90469-MLL-D00 |
SHIM J (3RD) Price: $2.65 |
| 31 |
90554-MEL-000 |
WASHER, THRUST (20MM) Price: $2.20 |
| 32 |
90601-107-000 |
CIRCLIP (25MM) Price: $4.71 |
| 33 |
90604-MM5-000 |
CIRCLIP (30MM) Price: $5.62 |
| 34 |
90606-MM5-000 |
RING, SNAP (62MM) Price: $9.89 |
| 35 |
91001-MKY-D11 |
BEARING, RADIAL BALL (6305) (C3) Price: $33.49 |
| 36 |
91006-MGS-D31 |
BEARING, RADIAL BALL (6204U) Price: $19.80 |
| 37 |
91022-MJE-DB1 |
BEARING, NEEDLE (20MM) (NTN) Price: $49.93 |
| 38 |
91026-MJE-D01 |
BEARING, NEEDLE (24X28X10) Price: $15.65 |
| 39 |
91207-MAL-601 |
OIL SEAL (40X62X8.4) Price: $16.36 |
