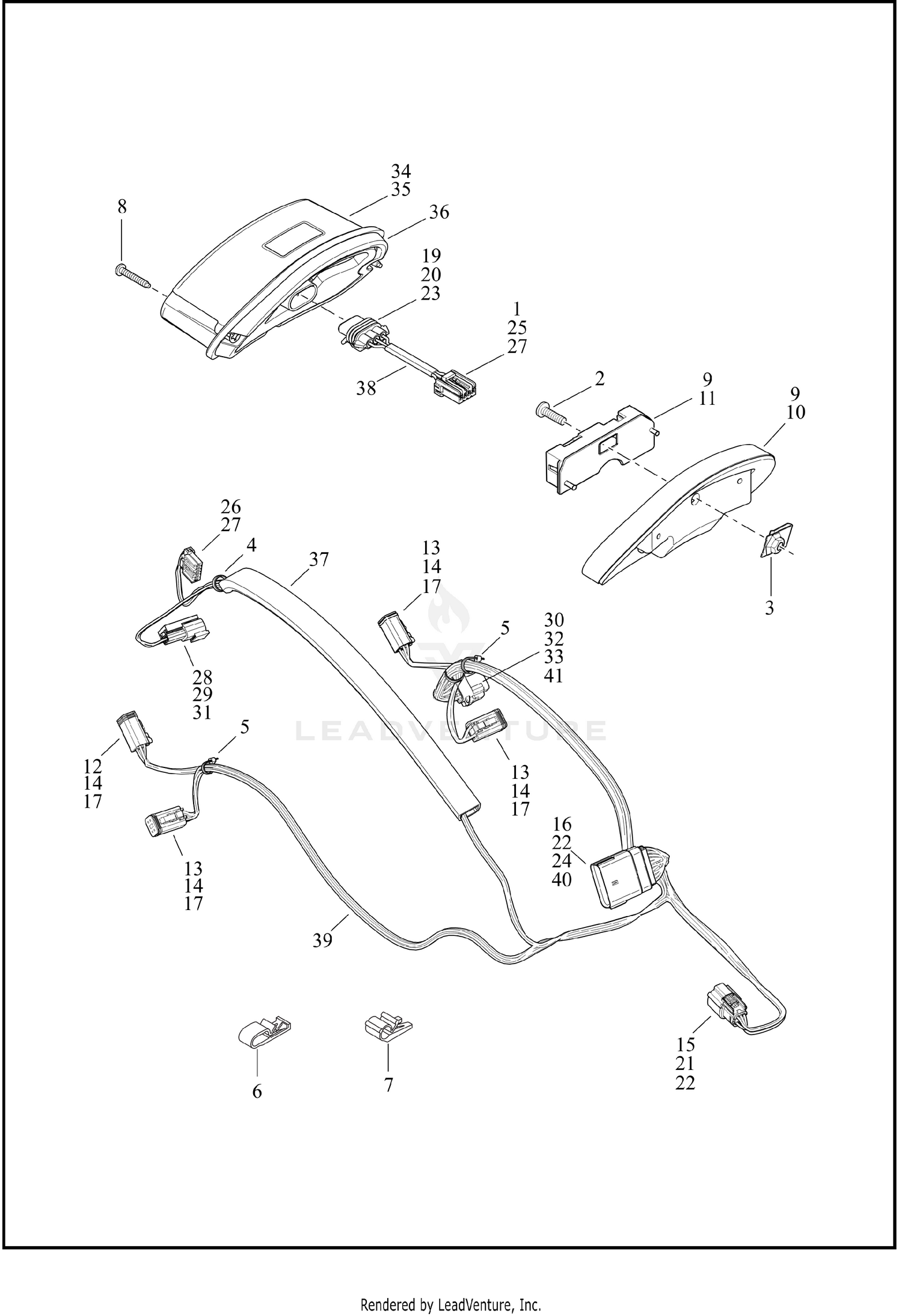

TAIL LAMP (CANADA)
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5118 | TERMINAL,X Price: $3.58 |
| 2 | 3022A | SCREW,SEMS/X-RECESS,W/DOG POINT Price: $0.62 |
| 3 | 7964 | NUT STAKED J-TYPE 1/4-20 Price: $2.40 |
| 4 | 10006 | STRAP,TIE,X Price: $0.59 |
| 5 | 10065 | STRAP,TIE,CABLE Price: $1.82 |
| 11 | 68830-99A | CIRCUIT BOARD & COVER ASY,T-LITE Price: $30.53 |
| 22 | 72473-07 | SEAL PIN Price: $1.20 |
| 33 | 74195-98 | SEAL PIN Price: $0.58 |
| 35 | 67800424 | LENS,TAILLAMP,RED Price: $11.61 |
| 36 | 67800428 | GASKET,RUBBER,TAILLAMP Price: $5.83 |
