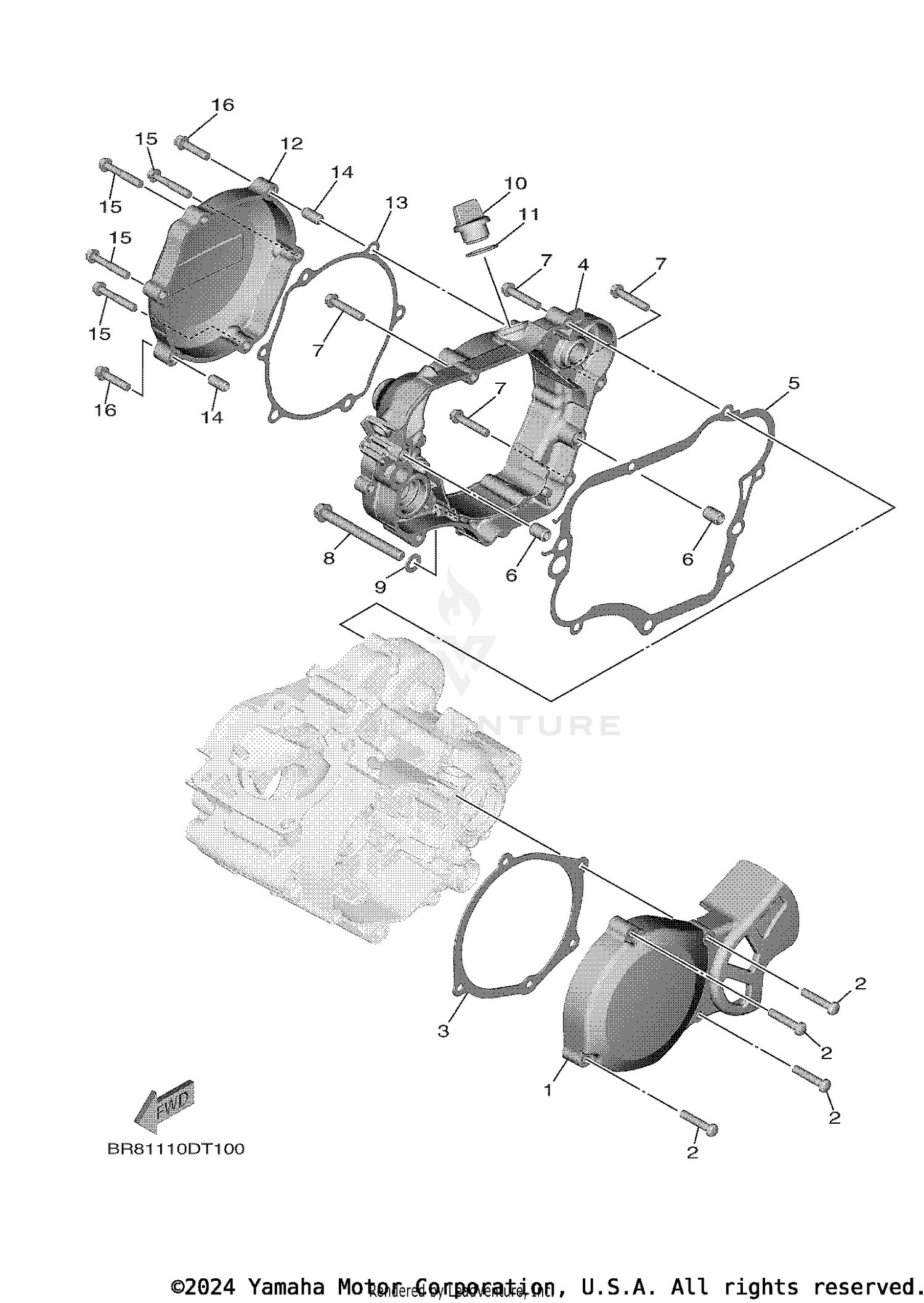

| Ref | Part Number | Description |
|---|
| 1 |
4ES-15411-02-00 |
COVER, CRANKCASE 1 Price: $17.99 |
| 2 |
98502-06030-00 |
SCREW, PAN HEAD Price: $2.35 |
| 3 |
5PA-15451-00-00 |
GASKET, CRANKCASE COVER 1 Price: $31.99 |
| 4 |
BR8-15431-00-00 |
COVER, CRANKCASE 3 Price: $146.99 |
| 5 |
BR8-15461-00-00 |
GASKET, CRANKCASE COVER 2 Price: $17.49 |
| 6 |
99530-10114-00 |
PIN, DOWEL This part replaces 99530-10014-00. Price: $2.65 |
| 7 |
95E32-06030-00 |
BOLT, FLANGE DEEP RECESS Price: $0.80 |
| 8 |
95E32-08080-00 |
BOLT, FLANGE DEEP RECESS Price: $3.15 |
| 9 |
90430-08119-00 |
GASKET Price: $7.49 |
| 10 |
3Y1-15363-10-00 |
PLUG, OIL Price: $19.99 |
| 11 |
93210-19123-00 |
O-RING Price: $8.99 |
| 12 |
5PA-15415-11-00 |
COVER, 1 Price: $72.99 |
| 14 |
91808-16023-00 |
PIN, DOWEL This part replaces 99530-08016-00. Price: $7.99 |
| 15 |
95E32-06025-00 |
BOLT, FLANGE DEEP RECESS Price: $0.50 |
