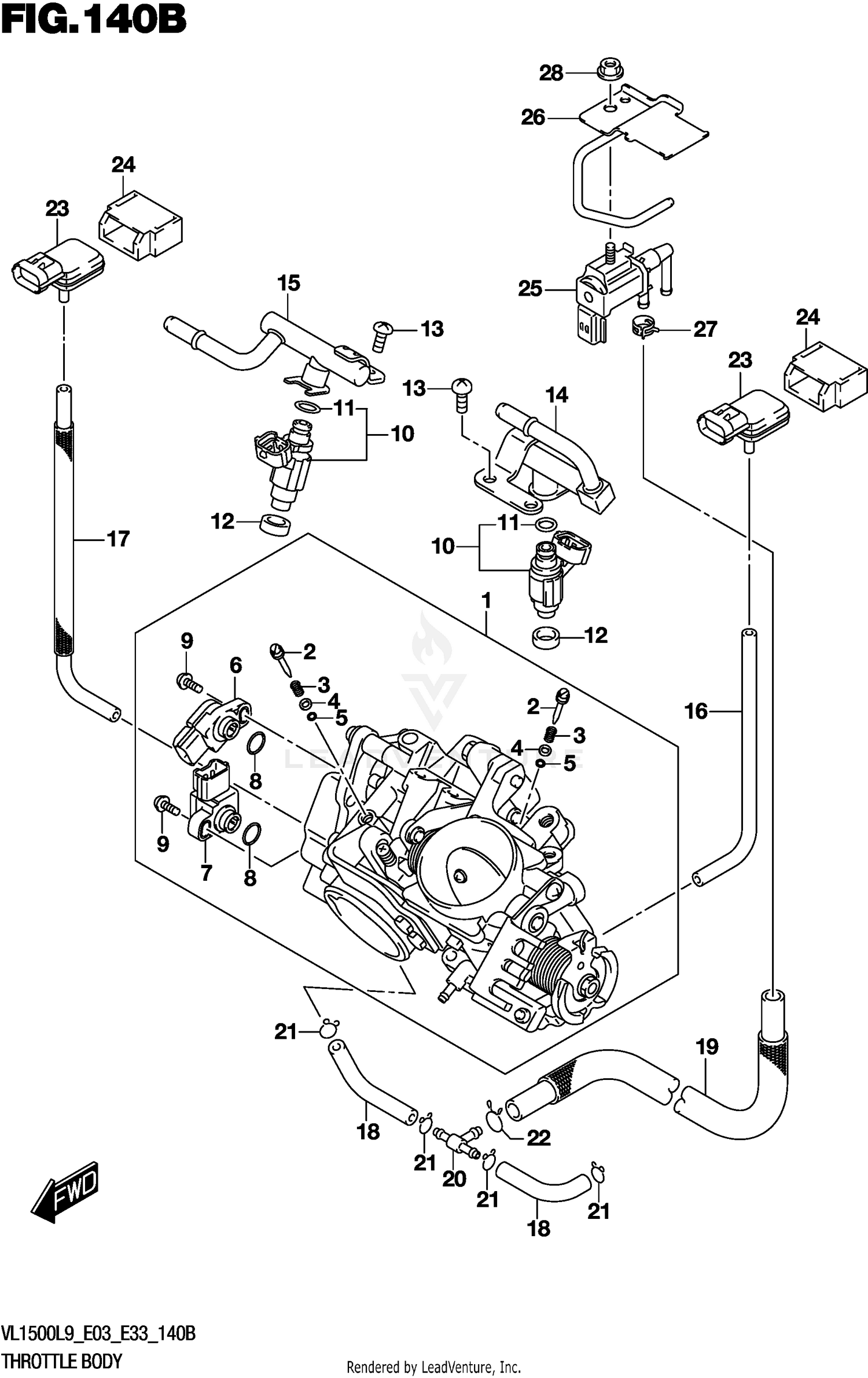

THROTTLE BODY (VL1500BL9 E33)
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 13405-40HB0 | BODY Price: $1,430.62 |
| 2 | 13269-33E00 | SCREW Price: $14.10 |
| 3 | 13268-48700 | SPRING,THROTTLE SCREW Price: $5.36 |
| 4 | 13606-47A00 | WASHER Price: $3.55 |
| 5 | 13295-29901 | O-RING This part replaces 13295-29900. Price: $5.36 |
| 10 | 15710-48G00 | INJECTOR ASSY Price: $339.07 |
| 11 | 15717-58B00 | O-RING Price: $12.30 |
| 14 | 15730-40H00 | PIPE ASSY Price: $127.26 |
| 15 | 15730-40H10 | PIPE ASSY Price: $133.51 |
| 16 | 13683-48G01 | HOSE This part replaces 13683-48G00. Price: $34.42 |
| 17 | 13683-40H10 | HOSE Price: $29.16 |
| 18 | 13683-48G21 | HOSE Price: $69.02 |
| 19 | 13683-40H20 | HOSE Price: Call Us |
| 20 | 13685-04F10 | NIPPLE Price: $11.97 |
| 21 | 09401-06101 | CLIP (ID:6.5) Price: $2.48 |
| 22 | 09401-10401 | CLIP This part replaces 09401-10410. Price: $1.75 |
| 23 | 18591-41F00 | SENSOR Price: $330.65 |
| 24 | 18595-33G00 | HOLDER Price: $17.83 |
| 25 | 18117-52G10 | VALVE Price: $161.76 |
| 26 | 18119-06J00 | BRACKET Price: $20.59 |
| 27 | 09401-10411 | CLIP Price: $2.95 |
