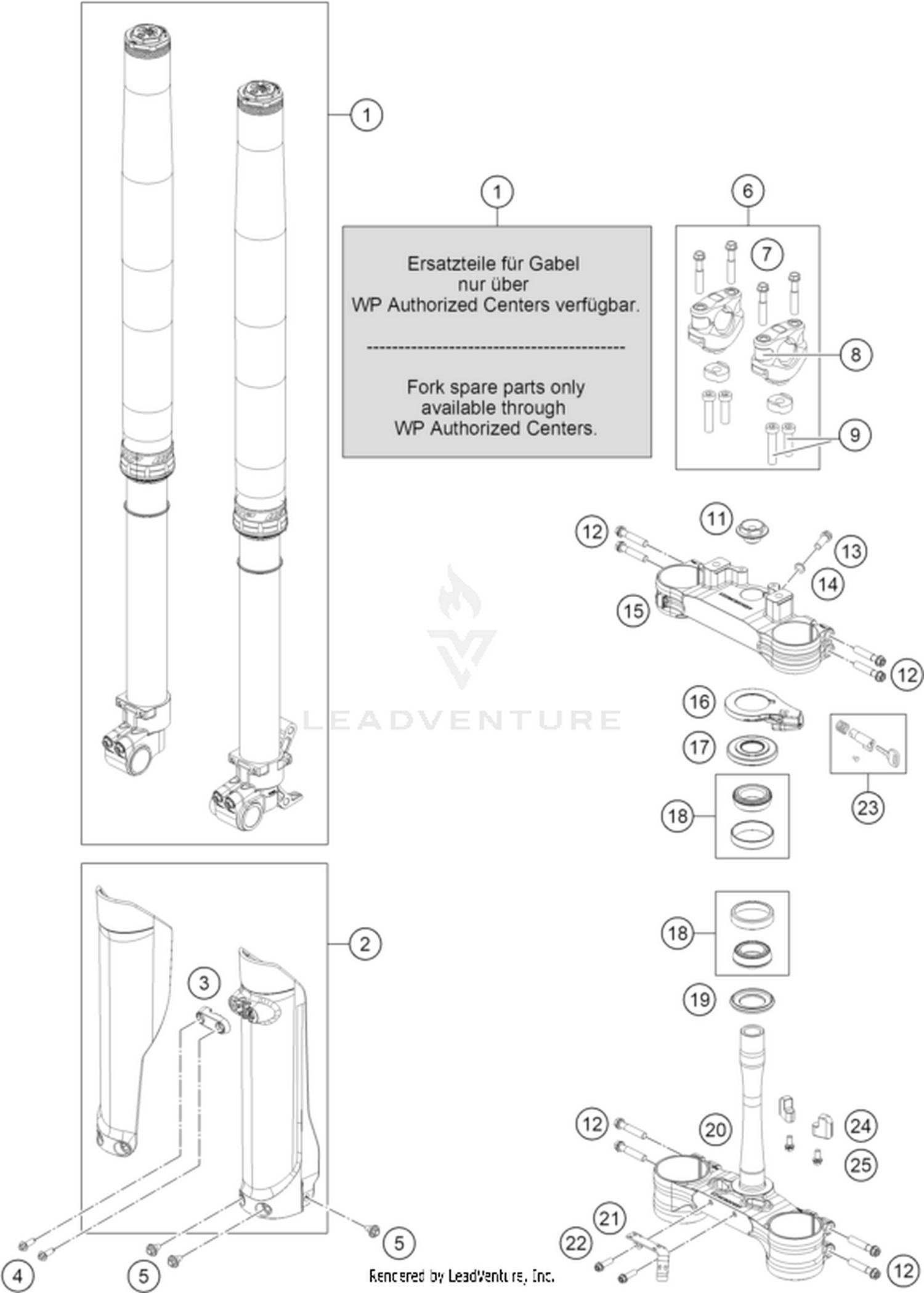

01 FRONT FORK, TRIPLE CLAMP

01 FRONT FORK, TRIPLE CLAMP

Parts (25)

RefPart NumberDescription
1 A580C140Y403200 Fork Rally Replica 2025 Price: Call Us
3 77701085100AB Clamp for brake hose Price: Call Us
4 0017060206 SCREW F. PLASTIC K60X20AL SW6 Price: Call Us
5 59001092050 SPECIAL SCREW M6X12,5 WS=8 Price: Call Us
6 SXS07125200 PHDS PROGRESSIVE H-BAR DAMPING Price: Call Us
7 0025080456 HH collar screw M8x45 TX40 Price: Call Us
8 SXS05125203 ELASTOMER GREEN/SOFT Price: Call Us
8 SXS05125204 ELASTOMER YELLOW/MEDIUM Price: Call Us
8 SXS05125205 ELASTOMER RED/HARD Price: Call Us
9 0032100256S AH collar screw M10x25 ISA45 This part replaces 0912100256. Price: Call Us
9 0032100356S AH-COLLAR SCREW M10X35 ISA45 Price: Call Us
11 54801036300 Steering head screw M20x1.5 SW=27 This part replaces 54801036000. Price: Call Us
12 0025080406 HH COLLAR SCREW M8X40 TX40 Price: Call Us
13 0015080256S HH COLLAR SCREW M8X25 WS=10 Price: Call Us
14 36003014000 LOCK WASHER 8MM Price: Call Us
15 A5800103502304 Top triple clamp X=23 mm Price: Call Us
16 A49002065000 Steering lock Price: Call Us
17 A46001086000 Steering head seal Price: Call Us
18 54201081100 TAPERED ROLLER BEARING CPL. 06 Price: Call Us
19 77701084000 O-RING SUPPORT W. SEALING LIP Price: Call Us
20 A5800103202304 Bottom triple clamp X=23 mm Price: Call Us
21 A58013026200 Brake hose bracket Price: Call Us
22 0025060206 HH collar screw M6x20 TX30 Price: Call Us
23 78003035100 Steering lock Price: Call Us
24 A58001026000M01 Steering stop Price: Call Us
