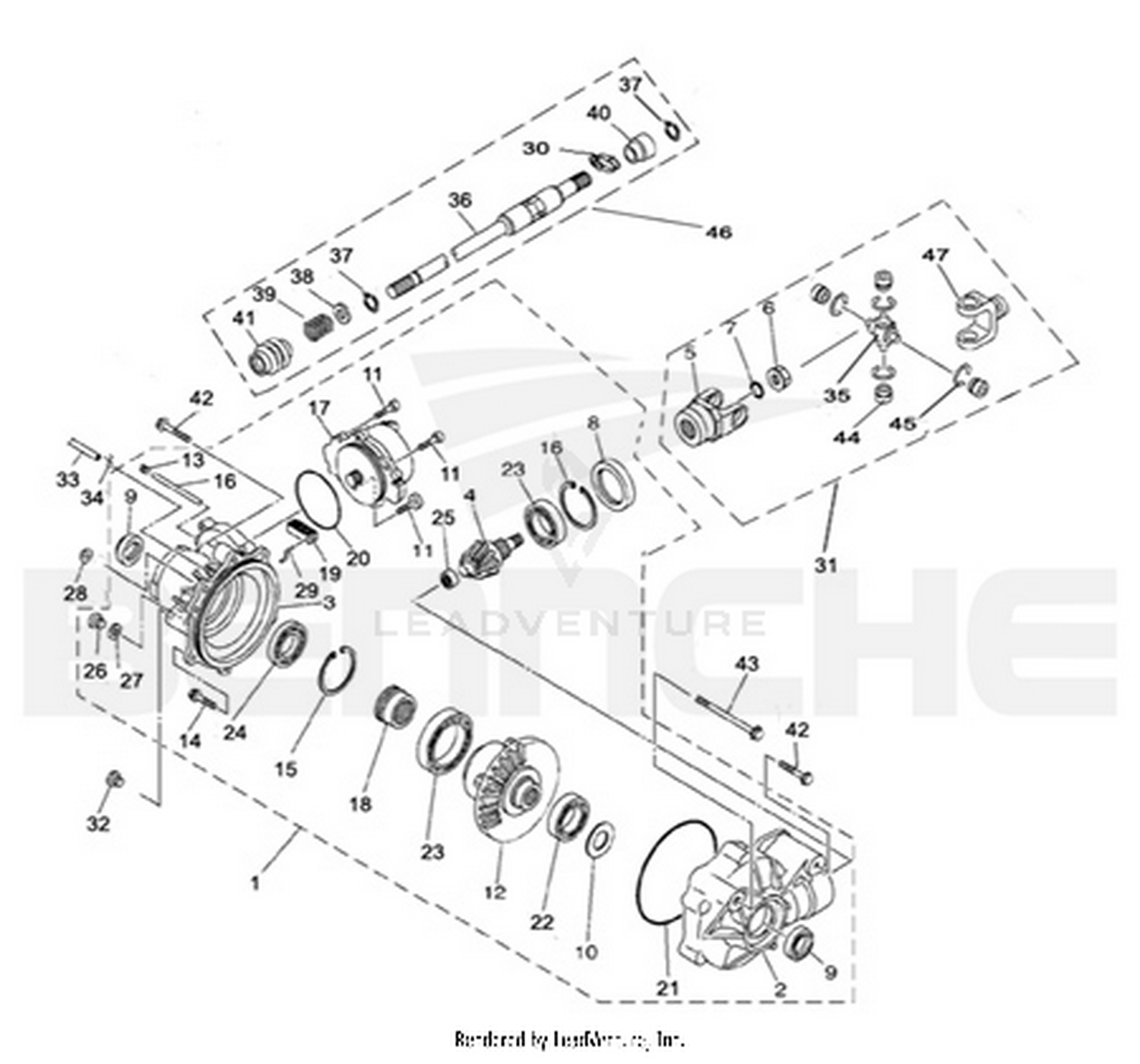

FRONT DIFFERENTIAL
Parts (43)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 47100-115-0000 | Front Differential Assy Price: $310.05 |
| 2 | 47102-115-0000 | Front Differential Case II Price: $48.00 |
| 3 | 47101-115-0000 | Front Differential Case I Price: $67.40 |
| 4 | 47103-115-0000 | Driving And Driven Gears Price: $68.18 |
| 5 | 26411-115-0000 | Connection Fork Price: $19.30 |
| 6 | B10-M14X1.25-27 | Hexagon Flange Nut M14x1.25 Price: $0.73 |
| 7 | 47104-115-0000 | O-Type Ring 14xd=7 Price: $0.73 |
| 8 | 47105-115-0000 | Oil Seal, 48X65X9 Price: $13.79 |
| 9 | 47106-115-0000 | Oil Seal, 24X38X8 Price: $7.50 |
| 10 | 47107-115-0000 | Adjust Washer Price: $1.55 |
| 11 | B15-M8X25-37 | Socket Hexagon Screw M8x25 Price: $0.56 |
| 12 | 26412-115-0000 | Connection Fork II Price: $25.00 |
| 13 | B15-M8X10-37 | Hexagon Socket Bolt M8x10 Price: $0.56 |
| 14 | 47109-115-0000 | Oil Drain Bolt M10x16 Price: $0.82 |
| 15 | 47110-115-0000 | Spring Clip Price: $0.56 |
| 16 | 47111-115-0000 | Column Pin 5x80 Price: $2.27 |
| 18 | 47113-115-0000 | Divide Device Connection Price: $21.81 |
| 19 | 47114-115-0000 | Rack Price: $7.50 |
| 20 | 47115-115-0000 | O-Ring D=2x81 Price: $0.91 |
| 21 | 47116-115-0000 | O-Ring D=2.4x140 Price: $1.27 |
| 22 | 47117-115-0000 | Bearing 6007R Price: $9.77 |
| 23 | 47118-115-0000 | Bearing 6912 Price: $39.39 |
| 24 | 47119-115-0000 | Bearing 16007 Price: $9.02 |
| 25 | 47120-115-0000 | Bolling Bearing HK152112 Price: $3.64 |
| 26 | B06-M14X1.5X10-57 | Bolt M14x15x10 Price: $0.73 |
| 27 | 47121-115-0000 | Copper Washer 14x2 Price: $0.82 |
| 28 | B10-M10X1.25-27 | Hexagon Flange Nut M10x1.25 Price: $0.56 |
| 29 | 47122-115-0000 | Shaft Fork Price: $12.50 |
| 30 | 90742-102-0000 | No Description Available Price: $1.27 |
| 31 | 26410-115-0000 | Cross Joint Assembly Price: $59.50 |
| 32 | B06-M14X1.5X15-57 | Hex Flange Bolt M14x1.5x15 Price: $0.73 |
| 33 | 47123-115-0000 | Breather Pipe Price: $3.00 |
| 34 | 47124-115-0000 | Oil Pipe Clip 8 Price: $0.82 |
| 36 | 26312-115-0000 | Front Transmission Shaft Price: $43.64 |
| 37 | B20-20-BB | Spring Circlip D=17.5x1 Price: $1.12 |
| 38 | 26316-115-0000 | Retainer Ring 20.5x26x1 Price: $3.00 |
| 39 | 26313-115-0000 | Spring D=25x2.3x28 Price: $1.68 |
| 40 | 26314-115-0000 | Front Dustproof Rubber Boot Price: $1.55 |
| 41 | 26315-115-0000 | Rear Dust Cover-Intermediate Shaft Price: $1.55 |
| 42 | B06-M10X1.25X30-57 | Hexagon Flange Bolt M10x1.25x30 Price: $0.73 |
| 43 | B06-M10X1.25X142-57 | Flange Bolt M10x1.25x25 Price: $0.56 |
| 45 | 26414-115-0000 | Block Ring Price: $3.00 |
| 46 | 26310-115-0000 | Front Transmission Shaft Comp Price: $71.28 |
