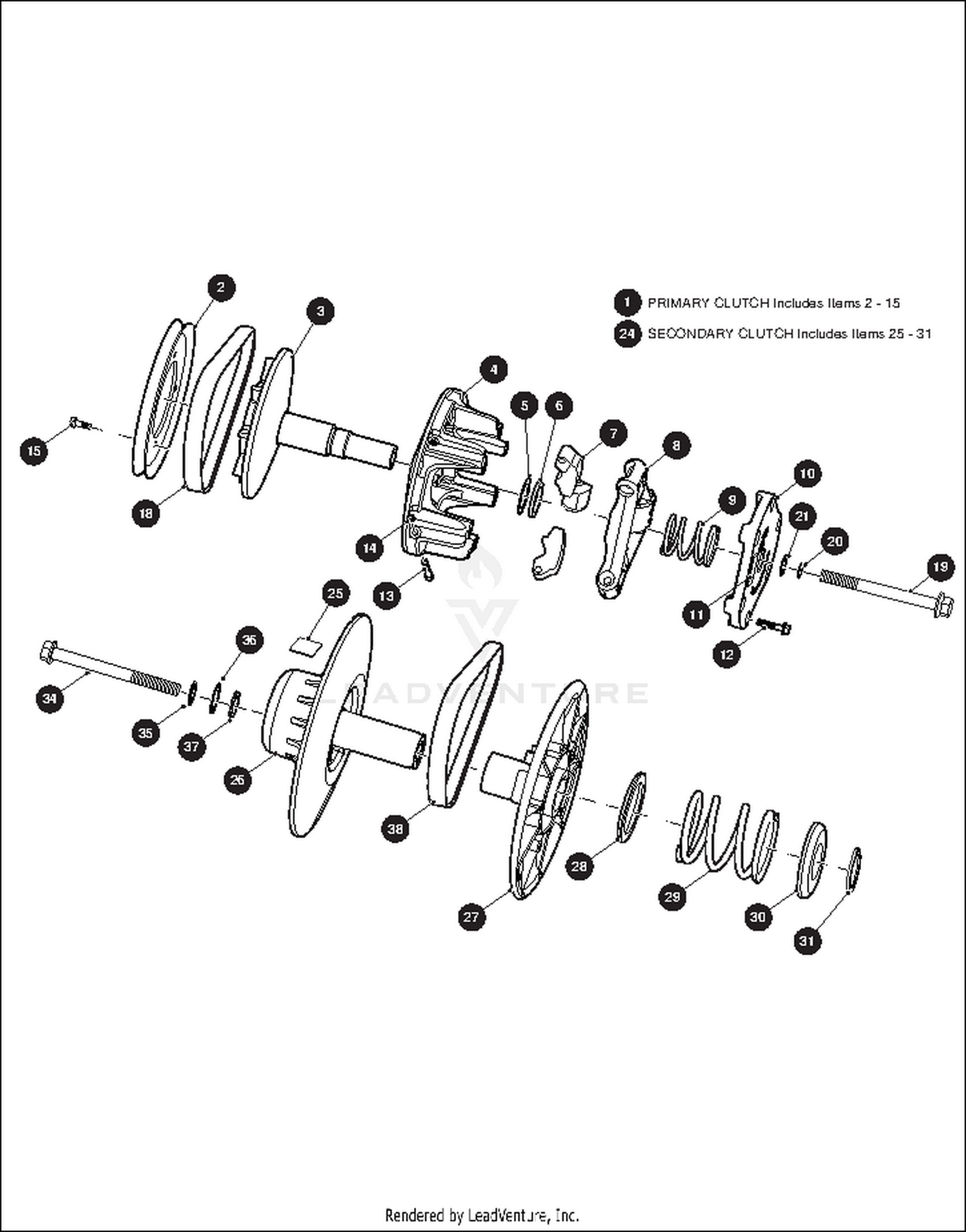

| Ref | Part Number | Description |
|---|
| 1 |
626611 |
CLUTCH,DRIVE Price: $551.06 |
| 2 |
619333 |
PRIMARY STARTER PULLEY Price: $52.99 |
| 7 |
628687 |
SVC-WEIGHT,CLUTCH D-180G Price: $14.08 |
| 9 |
628683 |
SVC-SPRING,COMPRESSION 2.0 OD Price: $53.99 |
| 12 |
628686 |
SVC-SCREW,HEX FLANGE HD,1/4X1.25 Price: $1.97 |
| 13 |
628685 |
SVC-SCREW,SHLDER HEX SKT,1/4X2.5 Price: $4.34 |
| 14 |
628684 |
SVC-NUT,LOCK HEX #10-24 FLEXLOC Not Available Price: |
| 15 |
619332 |
HEX WASHER HEAD BOLT, 1/4-20 X 3/4 Price: $5.99 |
| 18 |
75690G01 |
BELT, STRTER/GENERATOR ST480 Price: $12.99 |
| 19 |
629496 |
HEX HEAD BOLT, 5/16-18 X 4 1/2 Price: $3.99 |
| 20 |
00566G3 |
LOCK WASHER, 1/2 Price: $0.99 |
| 21 |
606239 |
CONICAL WASHER, M12 Price: $2.99 |
| 24 |
632613 |
CLUTCH,SECONDARY,9.15 This part replaces 626612. Price: $567.99 |
| 28 |
619327 |
RETAINER SPRING,INNER Price: $15.99 |
| 29 |
624111 |
COMPRESSION SPRING, 2.70 O.D. Price: $18.99 |
| 30 |
619329 |
SPRING RETAINER,OUTER Price: $15.40 |
| 34 |
629495 |
HEX HEAD BOLT, 7/16-20 X 7 Price: $12.99 |
| 35 |
00565G8 |
LOCK WASHER, 5/16" Price: $0.99 |
| 36 |
606239 |
CONICAL WASHER, M12 Price: $2.99 |
| 37 |
606230 |
CLUTCH WASHER Price: $0.99 |
| 38 |
625802 |
CVT BELT Price: $98.25 |
